Provides an interface for an SD card
2 Run/Stop
RUN: execute the programs
3
Indicates the power status of the CPU module
Run LED indicator
Operating status of the module
ON: the module is running.
OFF: the module is stopped.
Blinking: the module is detecting an error.
Error LED indicator
Error status of the module
ON: a serious error occurs in the module.
OFF: the module is normal.
Blinking: a minor error occurs in the module.
Indicates the battery status of the CPU module.
(Enable/Disable this display in HWCONFIG in ISPSoft)
COM1 LED
COM2 LED
CAN LED
Indicates the communication status of the COM/CAN port.
OFF: no communication over the COM/CAN port
Blinking: communication over the COM/CAN port
5
Removable
terminal blocks
Connects the wirings of power, input/output and CAN communication.
Shows the model name of the CPU module.
Provides an interface for a n Ethernet communication
Provides an interface for RS-485 communication
Mini USB communication port
10
Connects the modules
MIL connector, extension cable, and wiring modules (for AS332T-A/AS332P-A/AS324MT-A)

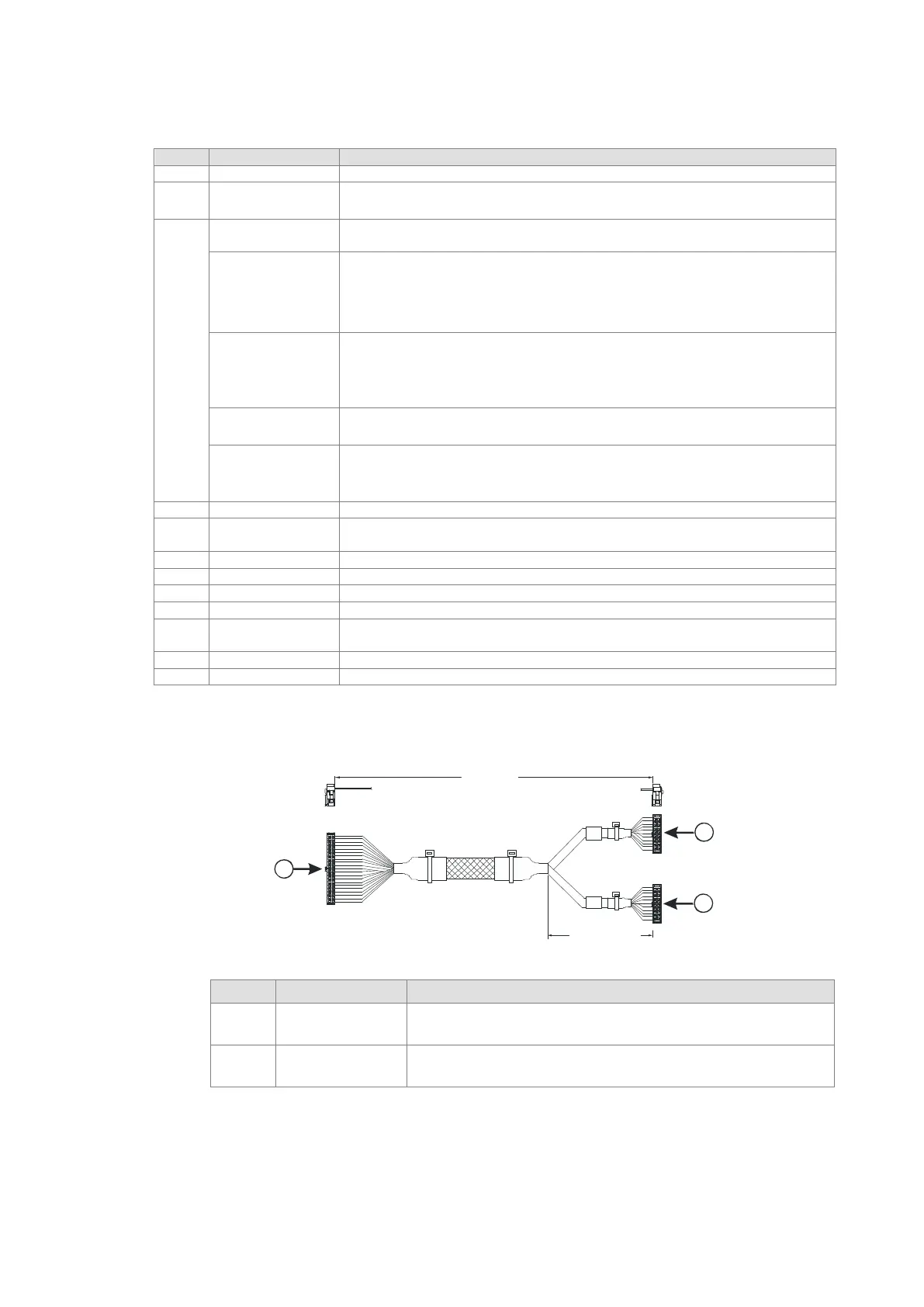

1. Extension Cable UC-ET010-24D (1M) / UC-ET020-24D (2M) / UC-ET030-24D (3M)
Length
3 9 40
1 2
500 +10m m
-
39 40
21 22
19 20
1 2
OUT
#1
IN
#2
1
2
2
Unit: mm
1 IDC 40-pin terminal
Connects a digital input/output module and an external terminal
module.
2 IDC 20-pin terminal
Connects the external terminal modules UB-10-ID16A/UB-10-
