Delta AS Series - Page 56

7
6
113
87
55.3
1
3
4
5
2

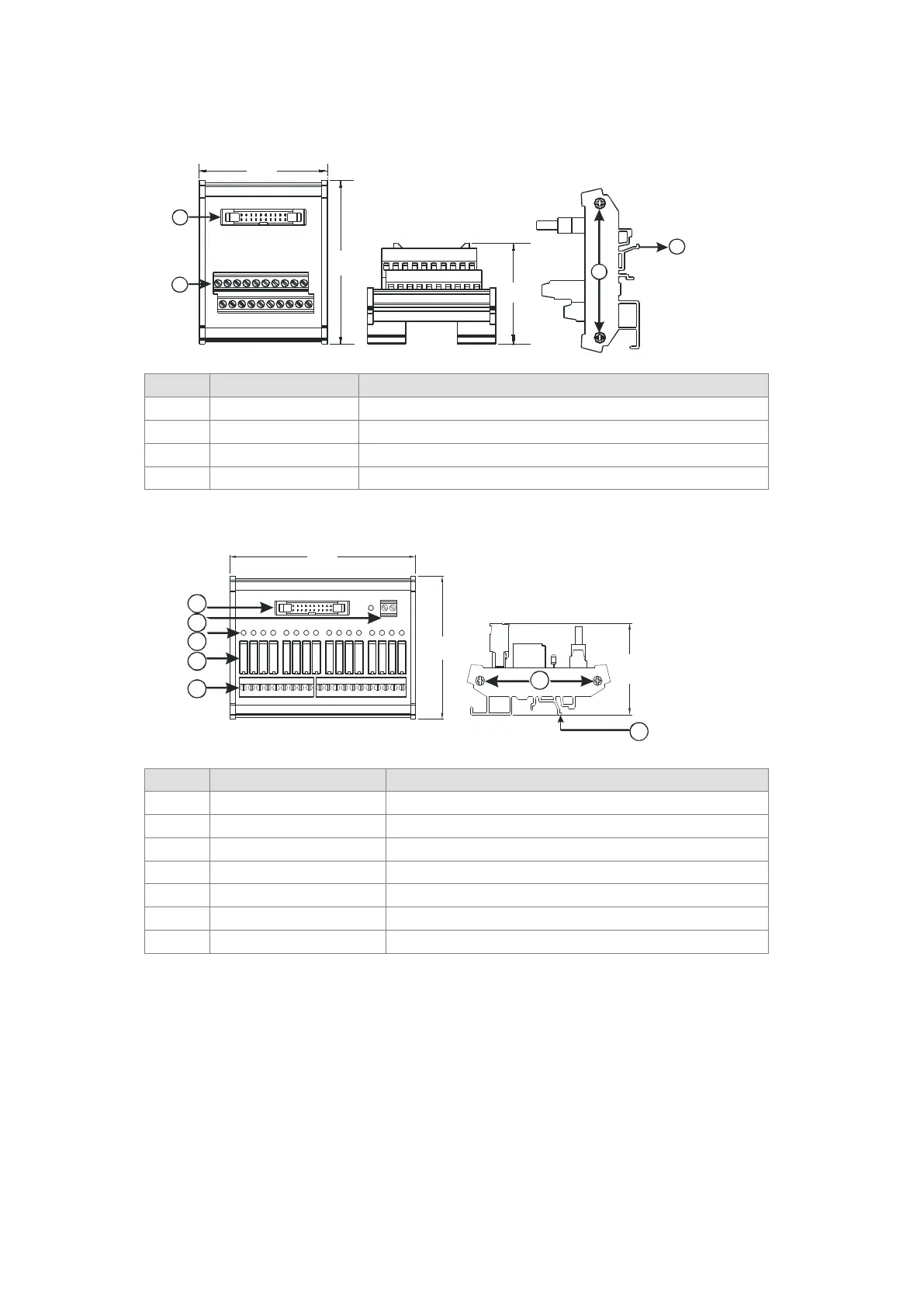

2. AS332T-A/AS332P-A/AS324MT-A and the external terminal module UB-10-ID16A
67.0
87.0
53.6
2
1
3
4
Unit: mm
Number
Name
Description
1
20-pin MIL connector
Connects the external terminal module and a wiring module
2
Terminals
Input/Output terminals for wiring
3
Clip
Hangs the external terminal module on a DIN rail
4
Set screw
Fixes the base
3. AS332T-A and the external terminal module UB-10-OR16A/AS332P-A, and UB-10-OR16B
Unit: mm
Number
Name
Description
1
20-pin MIL connector
Connects the external terminal module and a wiring module
2
Terminals
Input/Output terminals for wiring
3
2-pin power input terminal
Power input terminal for wiring
4
Output LED indicator
If there is an output signal, the output LED indicator is ON.
5
Relay output
Relay output
6 Clip
Hangs the external terminal module on a DIN rail
7 Set screw
Fixes the base
