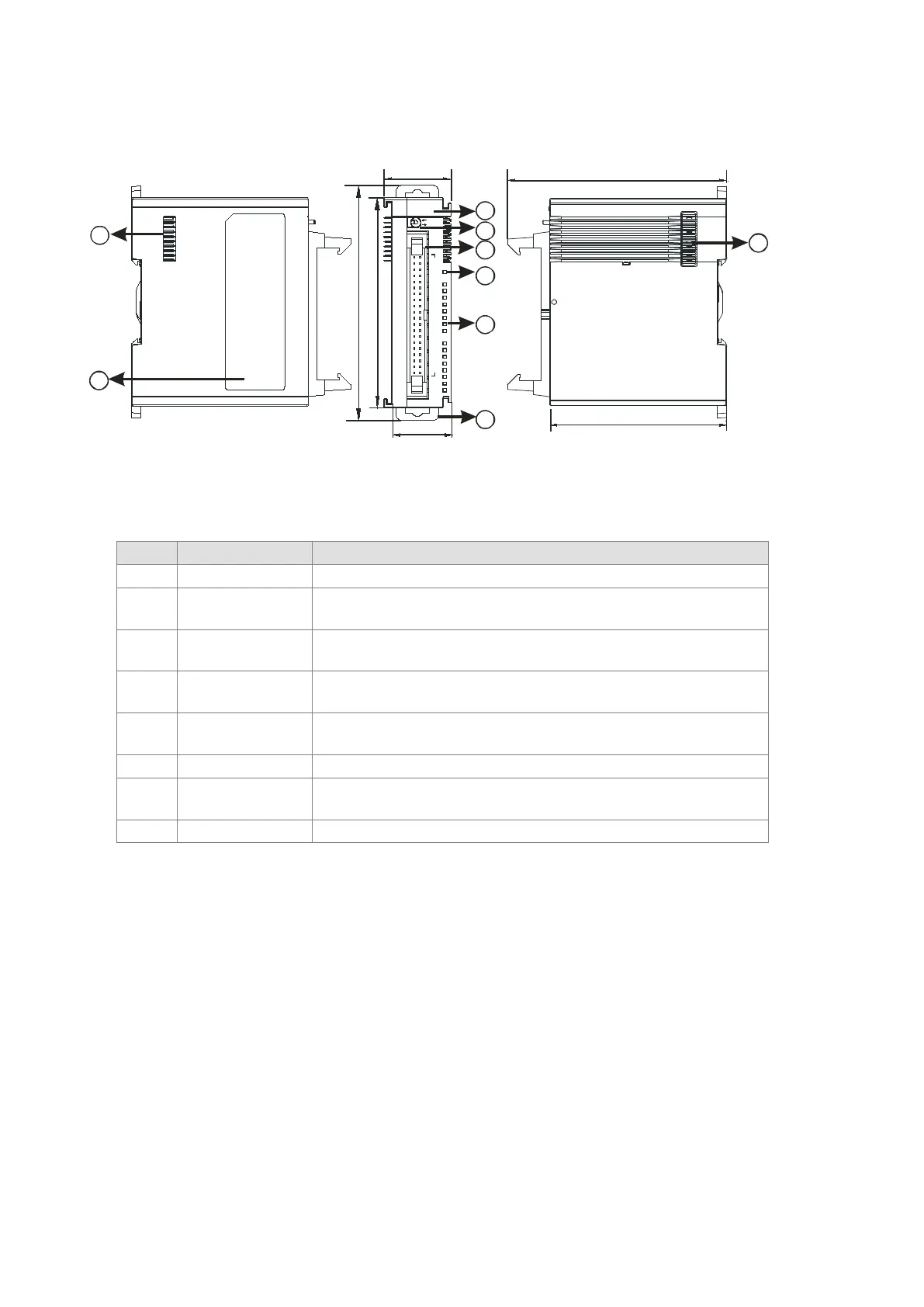

AS32AN02T-A
PWR
2
13
15
14
8
10
9
12
39
1
11
4
5
3
7
6
OUT
1
0
Y1 LED
Y0 LED
32AN
88
98.3
1
4
5
2
3
6
28.2
25
7
8
92
75
7
Unit: mm
Number
Name
Description
1
Model name
Model name of the module
2
Y0/Y1 LED
indicator switch
Switches the LED indicators to their represented outputs.
3 ML connector
For the external I/O connecting cables UC-ET010-24D, UC-ET020-
24D,
UC-ET030-24D
4
Power LED
indicator
Indicates the power status of the module
5
Output LED
indicator
LED indicator is ON during output.
6 DIN rail clip Secures the DIN rail
7
External module
port
Connects the modules
8
Label
Nameplate
