Delta AS Series User Manual

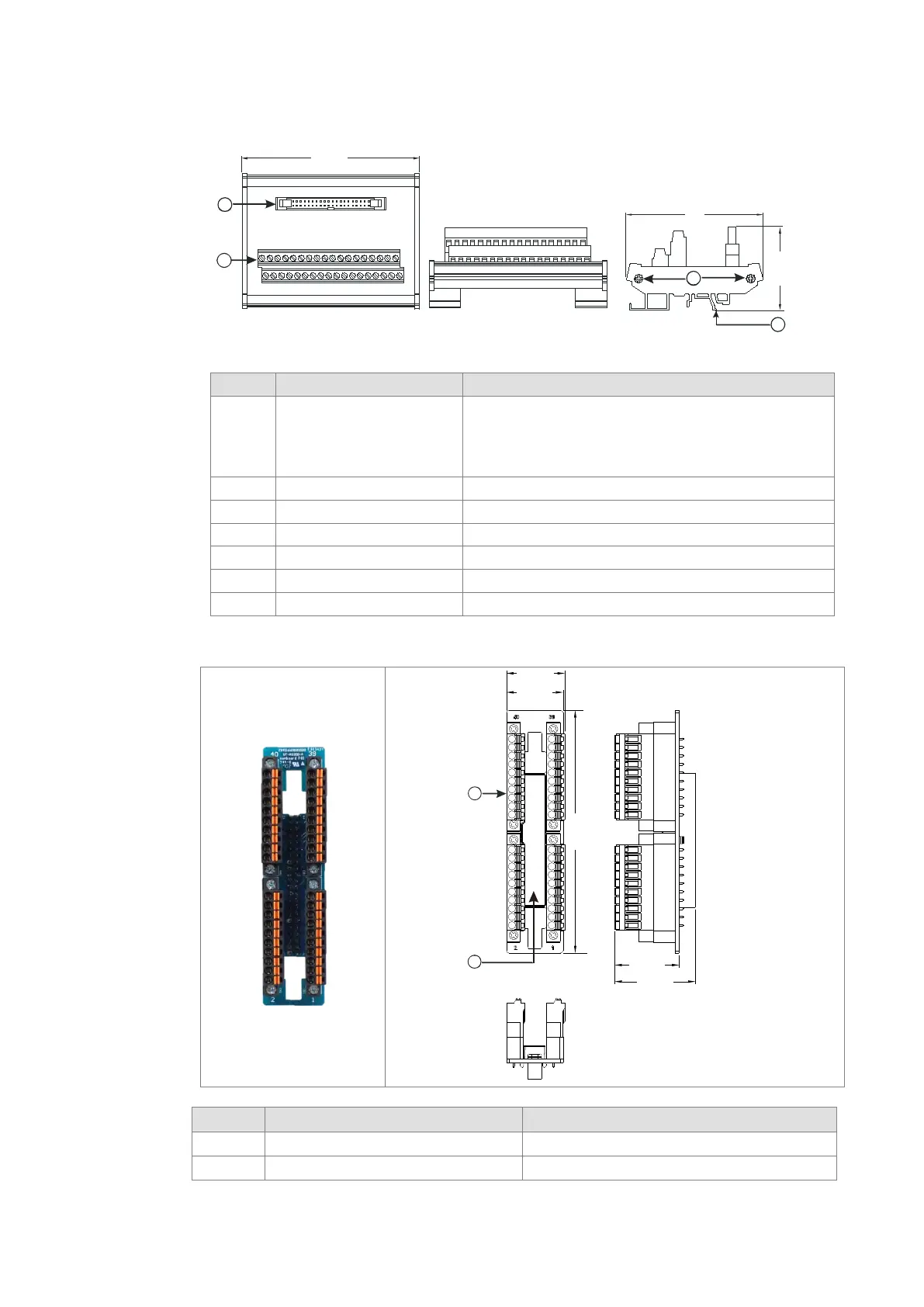

 UB-10-OT32A
113
87
53.6
6
2
1
7
Unit: mm
Number
Name
Description
1
UB-10- ID16A /OR16A: 20-
pin ML connector
UB-10-OT32A: 40-pin ML
connector
Connects the external terminal module and a wiring
module
2 Terminals Input/Output terminals for wiring
3
2-pin power input terminal
Power input terminal for wiring
4
Output LED indicator
LED indicator is ON during output.
5
Relay output
Relay output
6
Clip
Hangs the external terminal module on a DIN rail
7
Set screw
Fixes the base
 Spring clamp/MIL connector terminal block UB-10-IO32D for AS32AM10N-A/AS32AN02T-A
23 6.
24 35.
26.9
33.7
101
1
2
Unit: mm
Number Name Description
1 Terminal block for output
Terminal block
2 40-pin MIL connector Connects the module and the wiring module
