Delta AX Series User Manual

AX-Series Motion Controller Instructions Manual Chapter 2
130

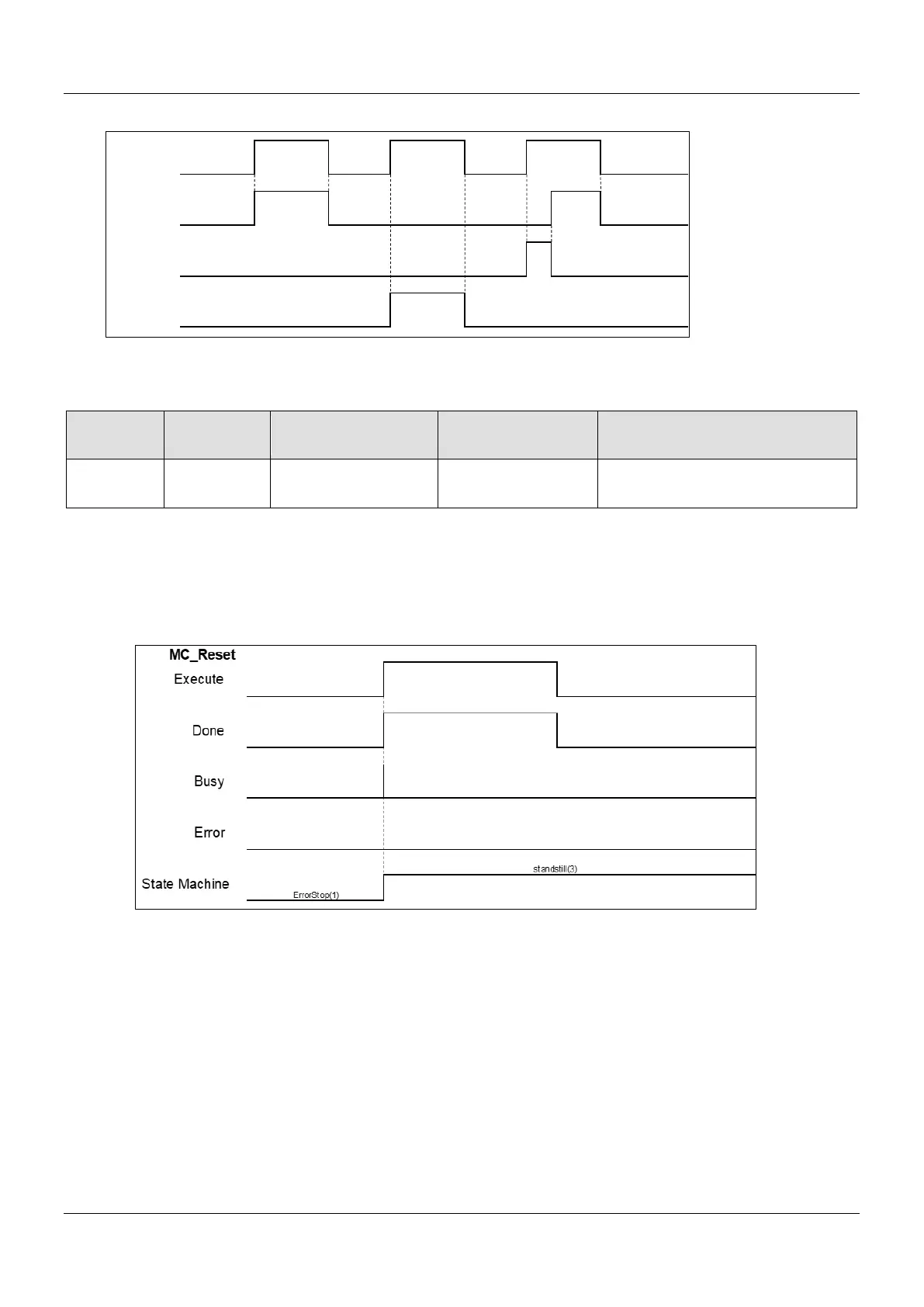

 Timing Diagram
 Inputs/Outputs
Name Function Data Type
Setting Value
(Default Value)
Timing to Take Effect
Axis
Specify the
axis.
AXIS_REF_SM3* AXIS_REF_SM3
When Execute turns to True and Busy
is False.
*Note: AXIS_REF_SM3(FB): Every function block contains this variable, which works as the starting program for function blocks.
 Function
 The function block MC_Reset can change the error status of axis back to normal. When Enable of MC_Power is True,
the axis status changes from Errorstop to Standstill. When Enable of MC_Power is False, the axis status changes from
Errorstop to Disabled.
 After errors being reported by the servo controller, users can use MC_Reset to clear them and then the axis state will
return to Standstill.
 If not able to use MC_Reset to clear the axis errors, such as communication error,
SMC_R_ERROR_NOT_RESETTABLE 122 (Error could not be reset.) will be reported by MC_Reset.
 Troubleshooting
 If an error occurs during the execution of the instruction, Error will change to True. You can refer to ErrorID (Error Code)
to address the problem.
Execute
Done
Busy
Error
