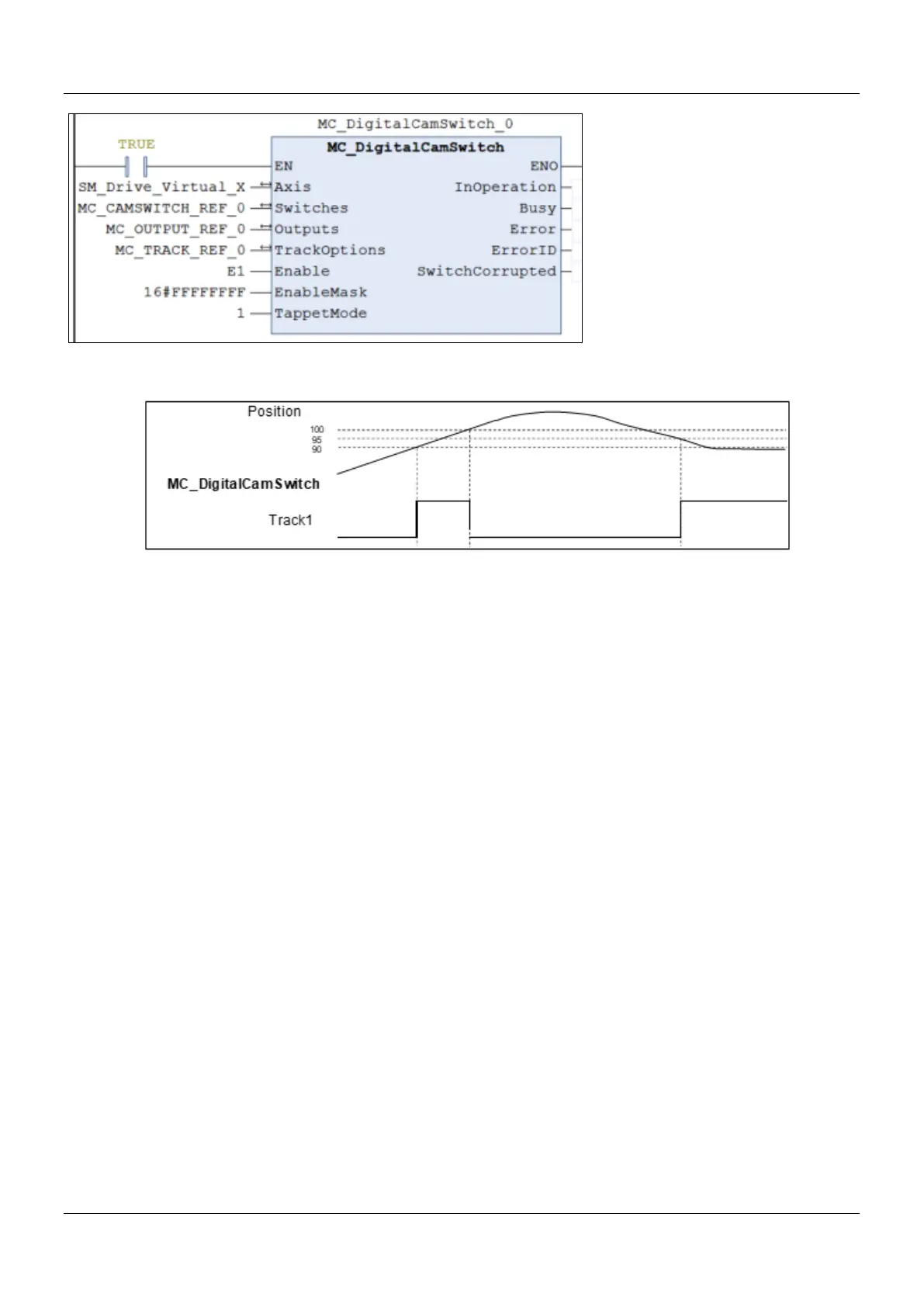

 Timing Diagram
 The FirstOnPosition and LastOnPosition of Switch 1 on Track1 are set to 90 and 95 respectively with Hysteresis
set to 10, which means the switch will be turned off after the axis position passing the interval (80~100).
 Track 1 is switched to ON when the axis reaches position 90 and not able to be switched to OFF at position 95
until the axis passes the hysteresis interval.
 When the axis moves reversely to position 95, the switch will be turned ON again and remains, for the reason
that the axis position stays within the hysteresis interval (105~85).
