Delta AX Series User Manual

AX-Series Motion Controller Instructions Manual Chapter 2
180

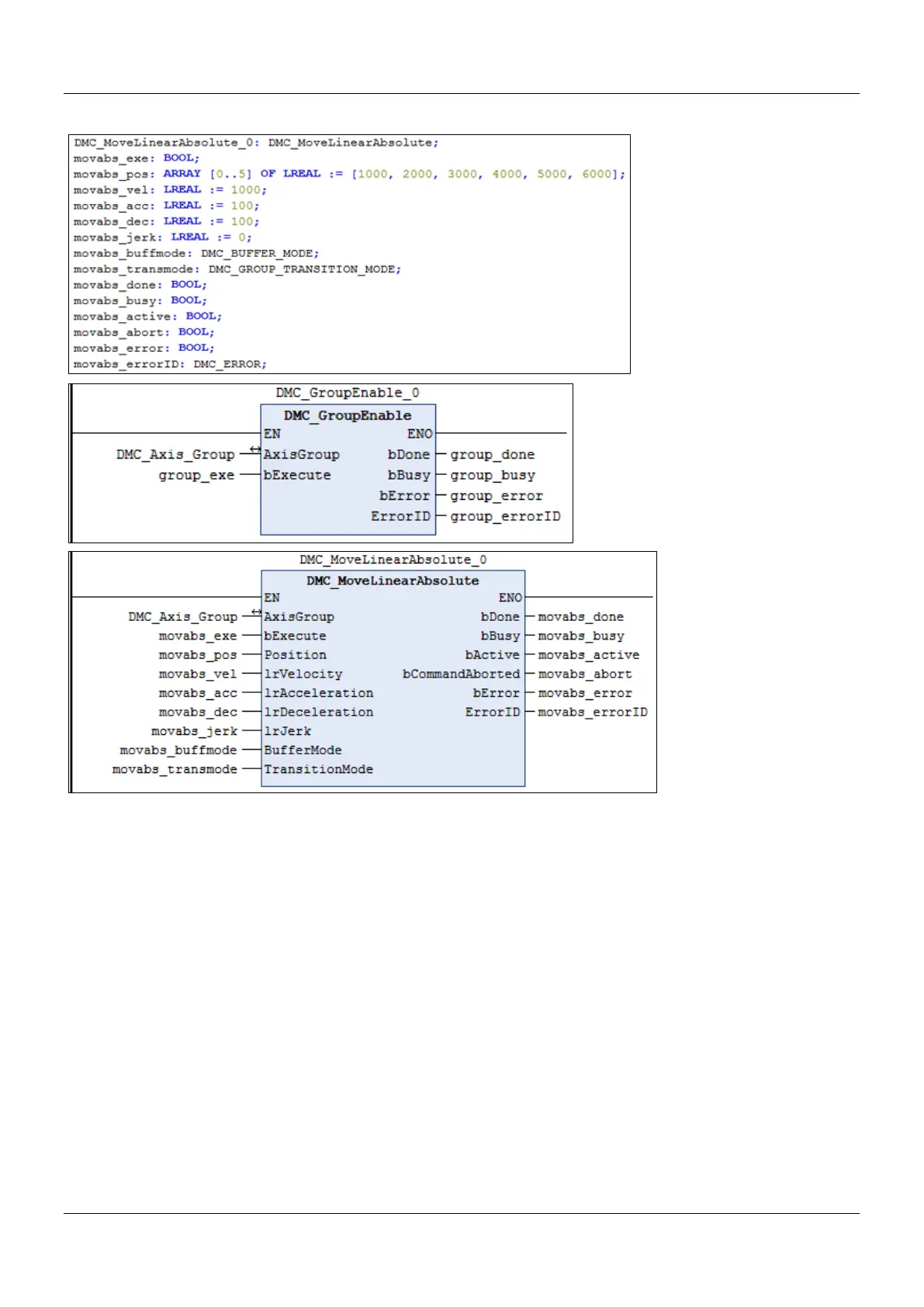

 When moveabs_exe (bExecute) changes to True, DMC_MoveLinearAbsolute starts to perform the absolute linear
interpolation for six axes.
 When moveabs_done (bDone) changes to True, moveabs_busy (bBusy) changes to False, which means the specified
absolute positioning (1000, 2000, 3000, 4000, 5000, 6000) is completed.
 moveabs_exe (bExecute) is switched to False after the absolute linear interpolation is completed. Then moveabs_done
(bDone) will change to False automatically.
 If moveabs_exe (bExecute) is set to True again for the absolute linear interpolation, then no axes will move for
positioning.

Delta AX Series Specifications

General

Input Voltage	24 VDC
Expansion Modules	Up to 8 modules
Series	AX
Operating Temperature	0°C to 55°C
CPU	32-bit
Communication Ports	RS-232, RS-485, Ethernet
Type	Programmable Logic Controller (PLC)
Programming Language	Ladder Diagram
I/O Capacity	Up to 256 I/O points
