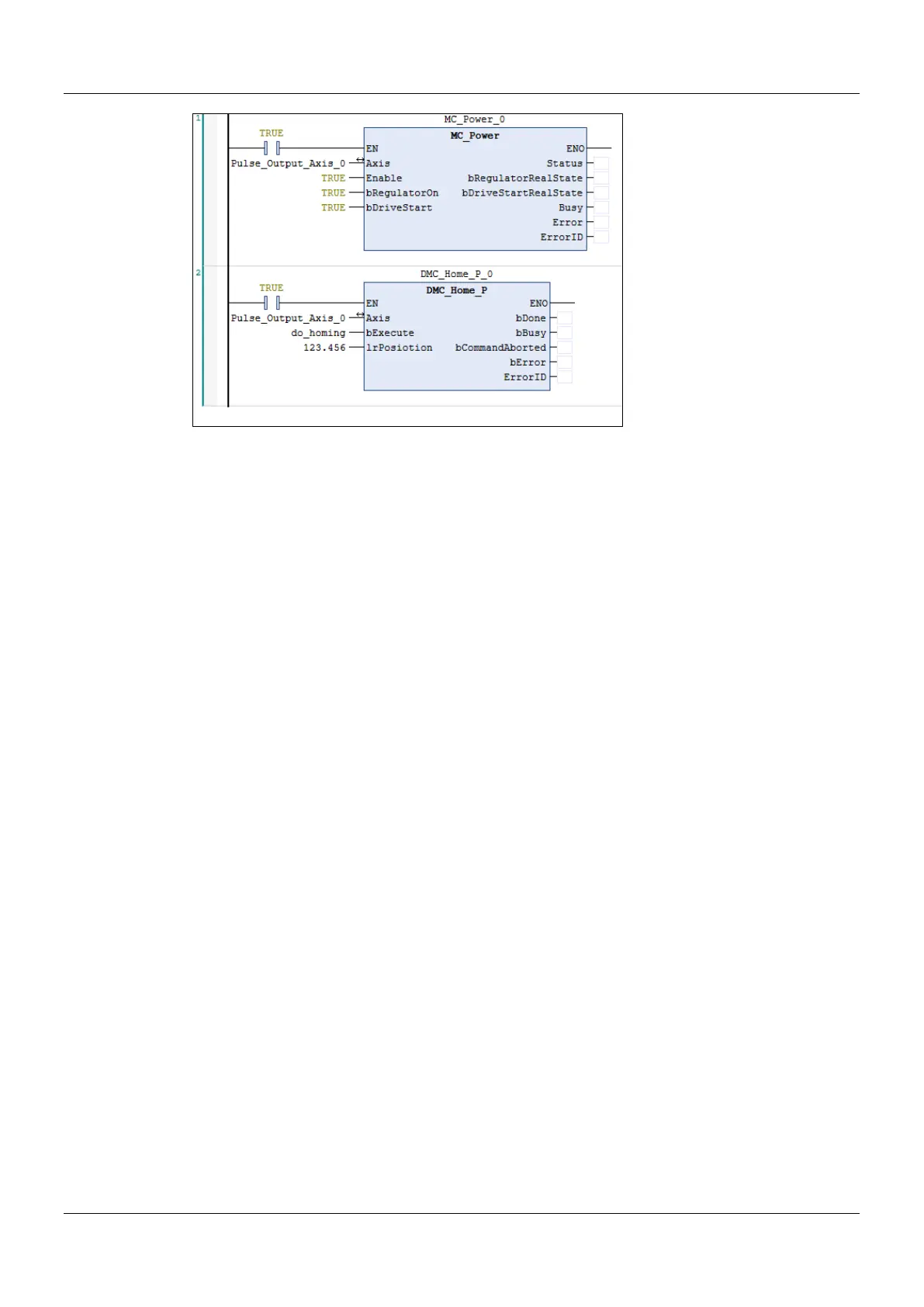

 After DMC_Home_P has started, the pulse axis Pulse_Output_Axis_0 will perform the homing motion
according to the set Home Mode in PoAxis Configuration below. After the function block is run, the homing
will be conducted according to different external signals and cases.
 Homing Mode: Mode 23;
 Homing speed during search for switch: 1000 (Unit: user unit /s);
 Homing speed during search for z phase pulse: 500 (Unit: user unit /s);
 Homing Acceleration: 2000 (Unit: user unit /s
2
).
