Delta AX Series User Manual

AX-Series Motion Controller Instructions Manual Chapter 2
236

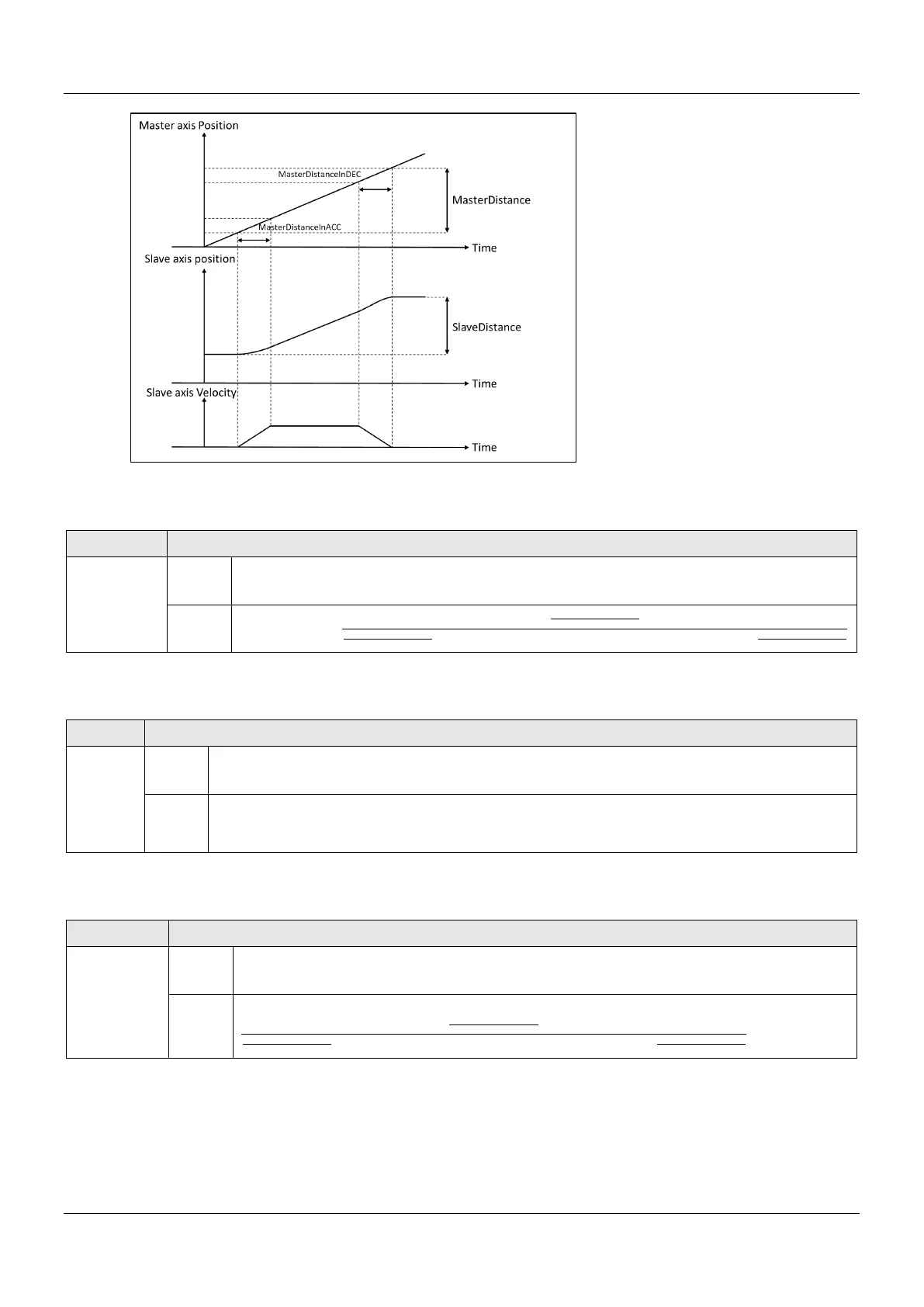

 Acceleration Section
Interval The relationship between the master axis and the slave axis movement amount
Acceleration
Section
Master
Axis
MasterDistanceInACC
Slave
Axis
SlaveDistance×





(

)



 Constant Velocity Section
Interval The relationship between the master axis and the slave axis movement amount
Constant
Velocity
Section
Master
Axis
MasterDistance – MasterDistanceInACC – MasterDistanceInDEC
Slave
Axis
SlaveDistance –Slave AxisAcceleration Section moving distance – 下述Slave AxisDeceleration
Section移動距離
 Deceleration Section
Interval The relationship between the master axis and the slave axis movement amount
Deceleration
Section
Master
Axis
MasterDistanceInDEC
Slave
Axis
SlaveDistance×





(

)



 When TRIGGERDETECT has the same driver mode and controller mode as MC_TouchProbe, refer to the
MC_TouchProbe instruction manual for the usage of the two modes and the usage settings of TriggerInput.
