AX-Series Motion Controller Instructions Manual Chapter 2
374

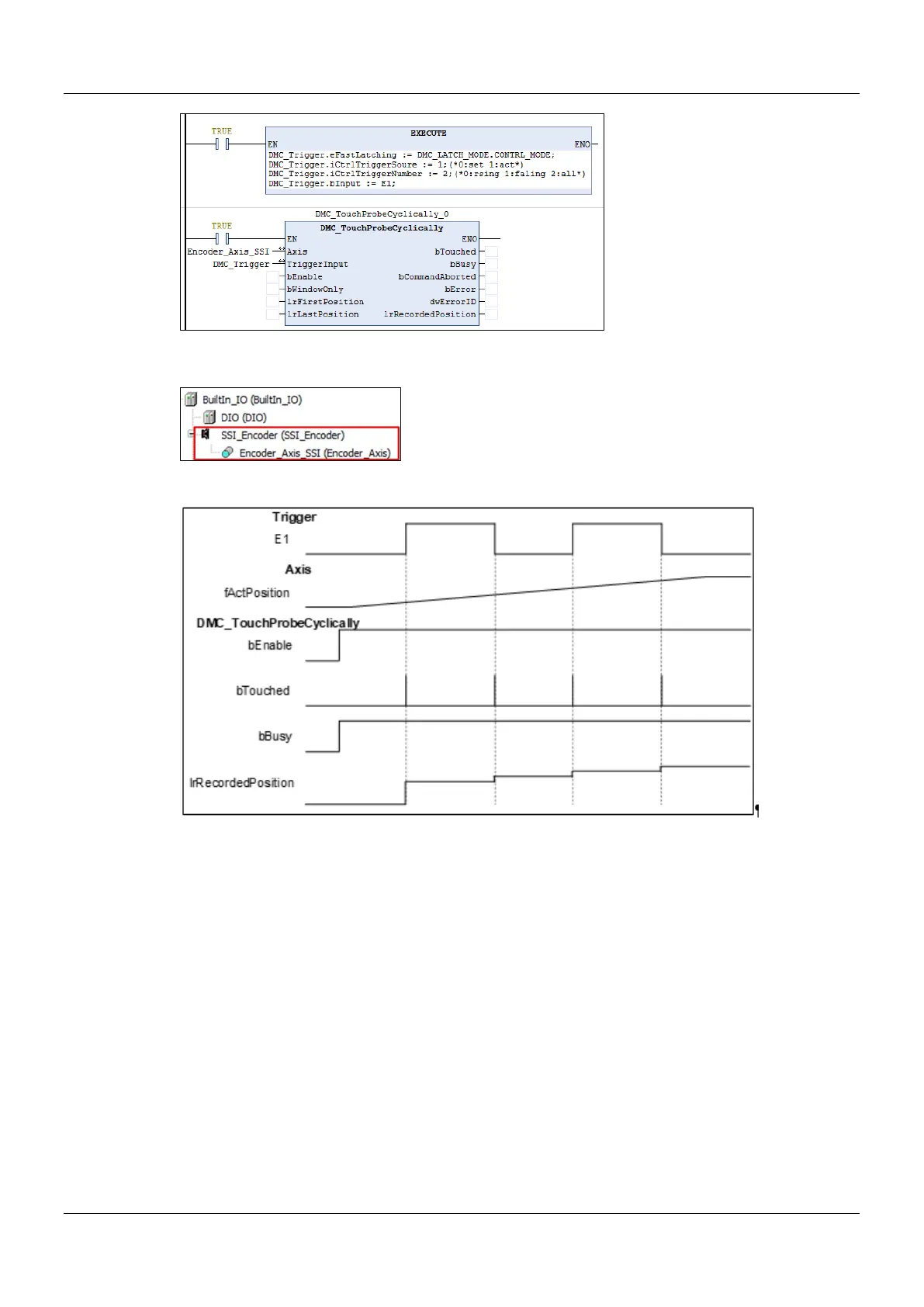

 Device tree setting
 Timing Diagram
1. Select SSI Encoder as the signal source for DMC_TouchProbeCyclically.
2. Add an SSI Encoder to the device tree and then connect the SSI Encoder to the AX-308 module. For wiring,
refer to section 2.2.4 CPU Module Input and Output Terminals in AX-3 Series Operation Manual.
3. When the bInput of TriggerInput is triggered, DMC_TouchProbeCyclically will record the position of the current
SSI Encoder.
 Programming Example 3:
 The example illustrates how to use DMC_TouchProbeCyclically with Pulse Encoder as the signal source in
CONTRL_MODE mode.

Delta AX Series Specifications

General

Input Voltage	24 VDC
Expansion Modules	Up to 8 modules
Series	AX
Operating Temperature	0°C to 55°C
CPU	32-bit
Communication Ports	RS-232, RS-485, Ethernet
Type	Programmable Logic Controller (PLC)
Programming Language	Ladder Diagram
I/O Capacity	Up to 256 I/O points
