AX-Series Motion Controller Instructions Manual Chapter 2
472

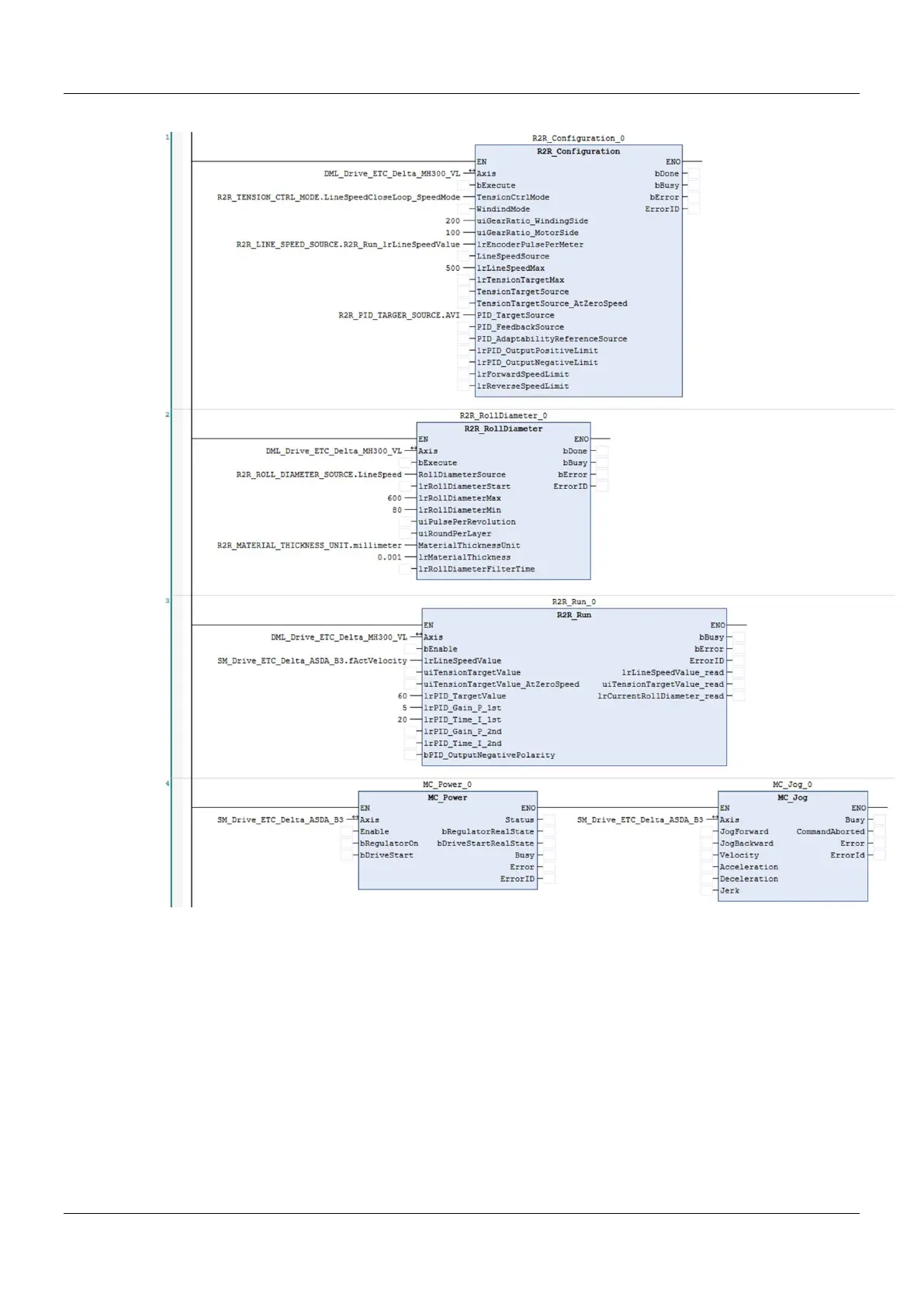

 Tension closed-loop speed mode program
 Set the R2R_Configuration, R2R_RollDiameter, and R2R_Run parameters according to the above table.
 Starting sequence: start the R2R_Configuration, R2R_RollDiameter, and then start the R2R_Run.
 After the tension function is activated, start the feeding axis, and the line speed source of MH300 runs according
to the line speed fed back by the feeding axis.

Delta AX Series Specifications

General

Input Voltage	24 VDC
Expansion Modules	Up to 8 modules
Series	AX
Operating Temperature	0°C to 55°C
CPU	32-bit
Communication Ports	RS-232, RS-485, Ethernet
Type	Programmable Logic Controller (PLC)
Programming Language	Ladder Diagram
I/O Capacity	Up to 256 I/O points
