AX-Series Motion Controller Instructions Manual Chapter 2

499

 Curve invert Detect

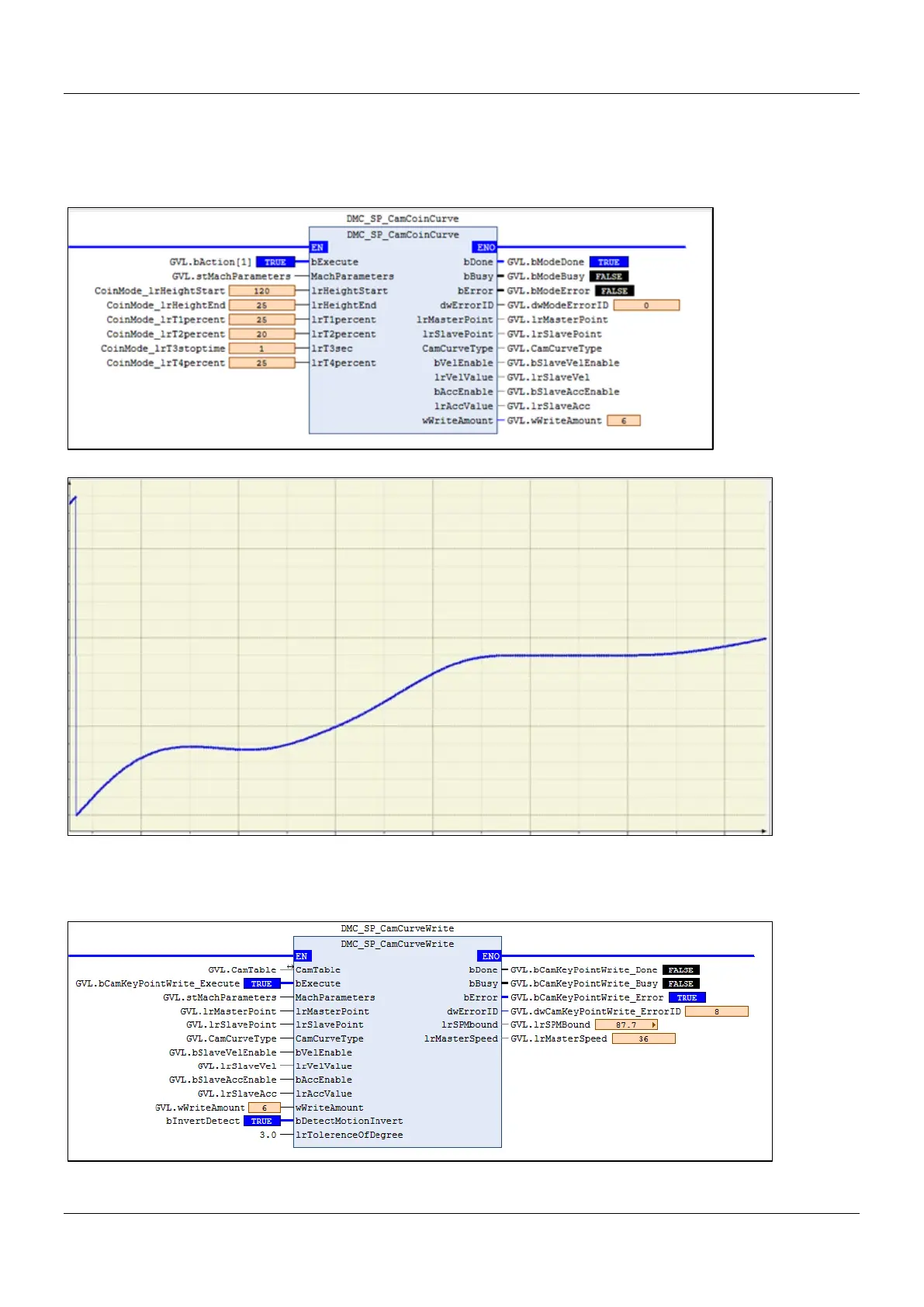

Perform DMC_SP_CamCoinCurve and set lrSPM = 6, lrLlength = 220, lrRlength = 100, lrHightStart = 120, lrHightEnd

= 25, lrT1_percent = 25, lrT2_percent = 20, lrT3_StopTime = 1, lrT4_percent = 25.

 Set bInvertDetect to True, and set lrTolerenceOfDegree to 3.0 and run DMC_SP_CamCurveWrite again. Error will be

True, and ErrorID will show 8.
