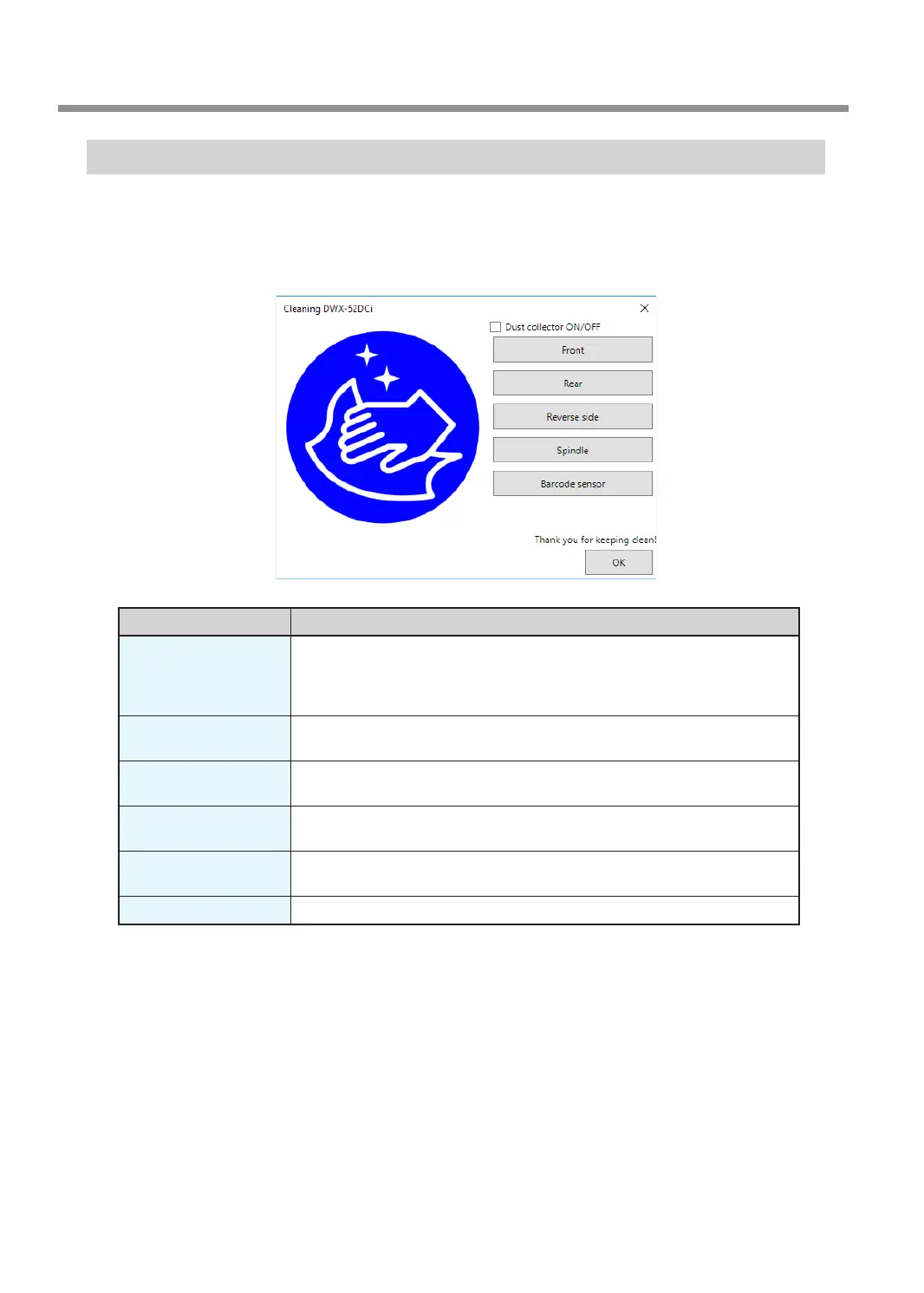

"Cleaning" Window
Use this window when you clean the machine. You can use it to perform operations such as moving the rotary
axis unit and the spindle. To verify the operation, place the mouse pointer over the button to switch the VPanel
illustration.
" P.59 "Cleaning after Milling Finishes"
Display Explanation
Dust collector ON/OFF
Turns the dust collector ON/OFF.
(For dust collectors with a linking function and connected to the expansion port
with a linking cable.)
For details on the dust collector, see the DWX-52DCi "Setup Guide."
Front
Moves the rotary axis unit to the front. Use this function when cleaning the
rotary axis unit.
Rear
Moves the rotary axis unit to the back. Use this function when cleaning the
back of the milling area.
Reverse side
Turns the clamp over. Use this function when cleaning the back side of the
clamp.
Spindle
Moves the spindle unit to a location where it is visible. Use this function when
cleaning around the spindle unit.
Barcode sensor
Lowers the lift. Use this function when cleaning the barcode sensor.
