8.5 Mechanical steering selector

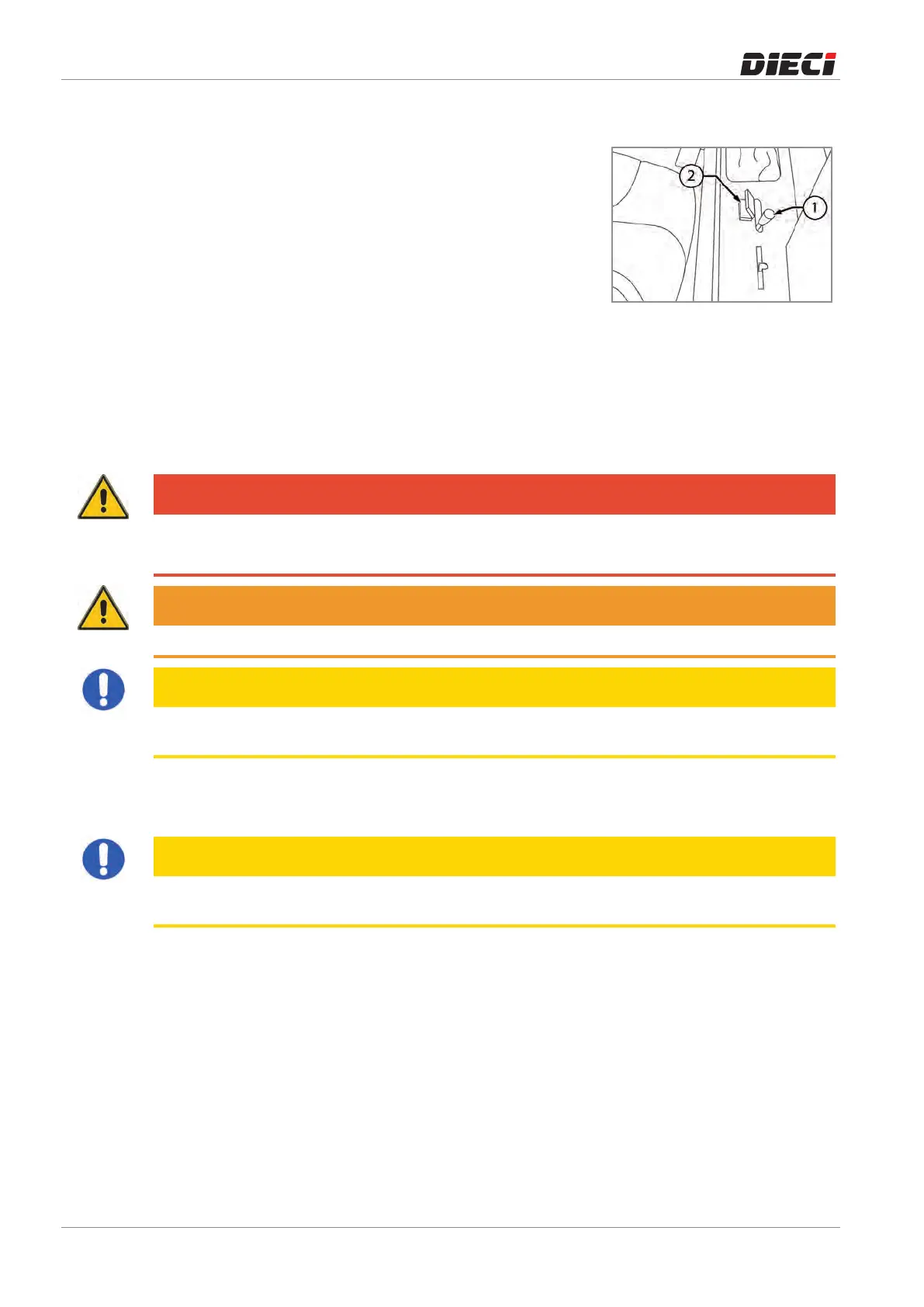

Thesteeringselector(fig.1503131)isusedtochangethewheels
steeringmode:
To select a steering mode, move the lever indicating the
correspondingsymbol:
A - Front-steering wheels
Thistypeofsteeringallowstocarryoutasteeringwithonlythe2
frontwheels.
B - Four-steering wheels
This type of steering allows to carry out the steering with all 4
wheels,soastohavethesmallestturningradiuspossible.
C - Transverse
Thistypeofsteeringallowsatransverseorcrabsteering,soasto
havealateraldisplacementofthevehicle.
150313-1
DANGER
Make the steering selection only with the vehicle stopped.
Before selecting a new type of steering, align the wheels with stopped vehicle.
WARNING
When the transverse steering is selected, always operate at low speed.
CAUTION
For road travel is mandatory to select the 2-wheel steering mode and lock the selector with the dedicated
fastener "2".
Manual wheel alignment
CAUTION
Perform the wheel alignment periodically (every 8-10 hours) depending on the continuous use of the
machine.
