Dieci APOLLO MINI AGRI - Joystick for man Basket Prearrangement

Components description | 8
AXH1230‐UK ﴾ENG﴿ ‐ Apollo KM 117

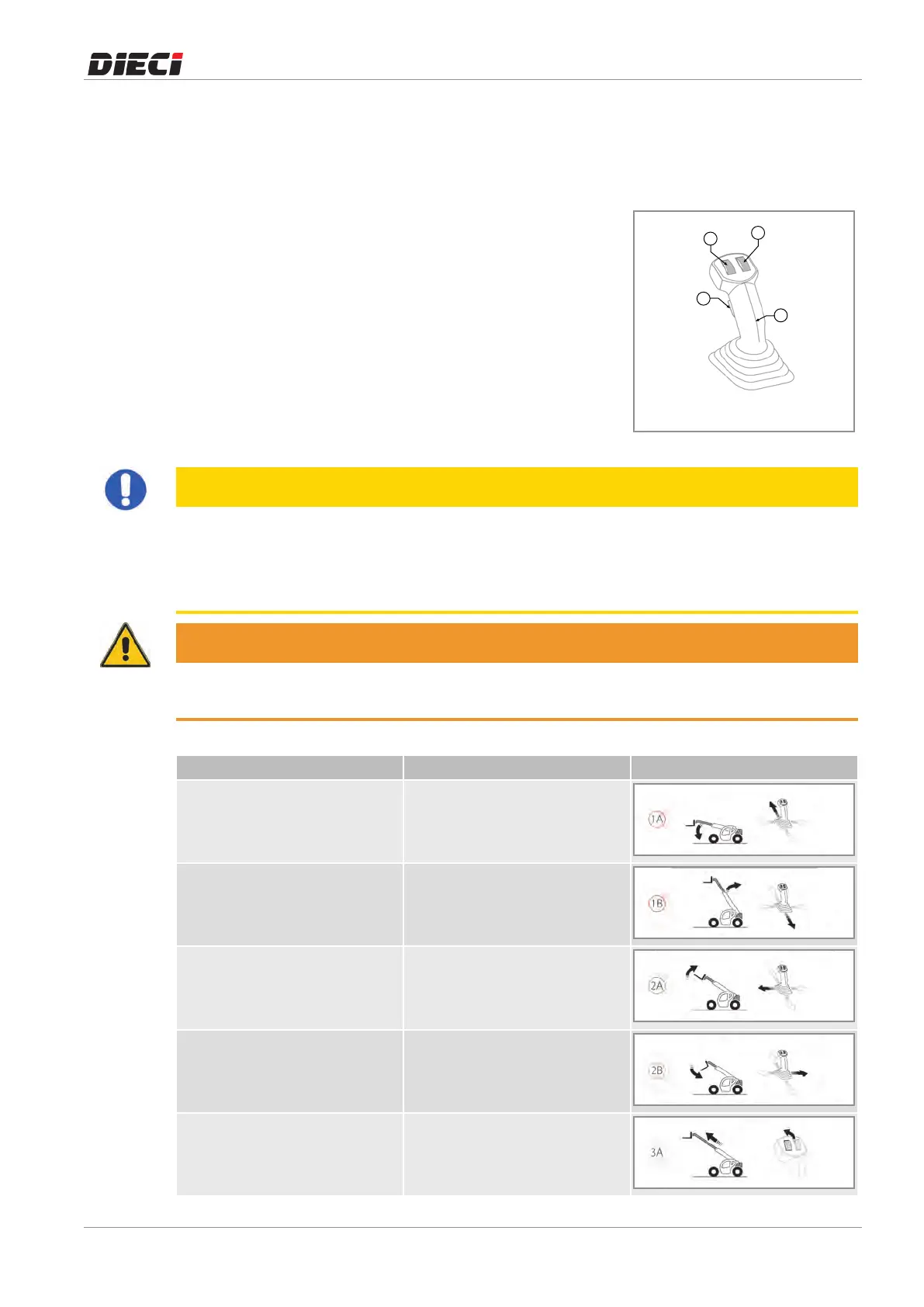

8.7.2 Joystick for man basket prearrangement
Joystick with standard mechanical deadman button.
TheJoystickallowsyoutooperateallthetelescopicboommovements.
Itconsistsof(fig.1504521):
1. Grip
2. "Deadman"button
3. Extension/retractionroller
4. Servicesroller
1
2
3
4
150452-1
CAUTION
The deadman joystick function prevents any accidental movements of the boom.
The Joystick is with mechanical "deadman" sensor: to enable its operation it is necessary to hold down the
deadman button "2" on the handle of the joystick itself for the duration of the operation.
Without pressing the Deadman button, all joystick functions are disabled.
WARNING
Before operating the boom, make sure that the area around the machine is clear.
Make sure that the loads to be lifted are within the machine's capacity.
Themovementsthatarepossibleusingthejoystickare:
CONTROL MOVEMENT
Gripforwards Boomdown
Gripbackwards Boomup
Griptotheleft Tiltupwards
Griptotheright Tiltdownwards
Extension/retractionrollerforwards Boomextension
