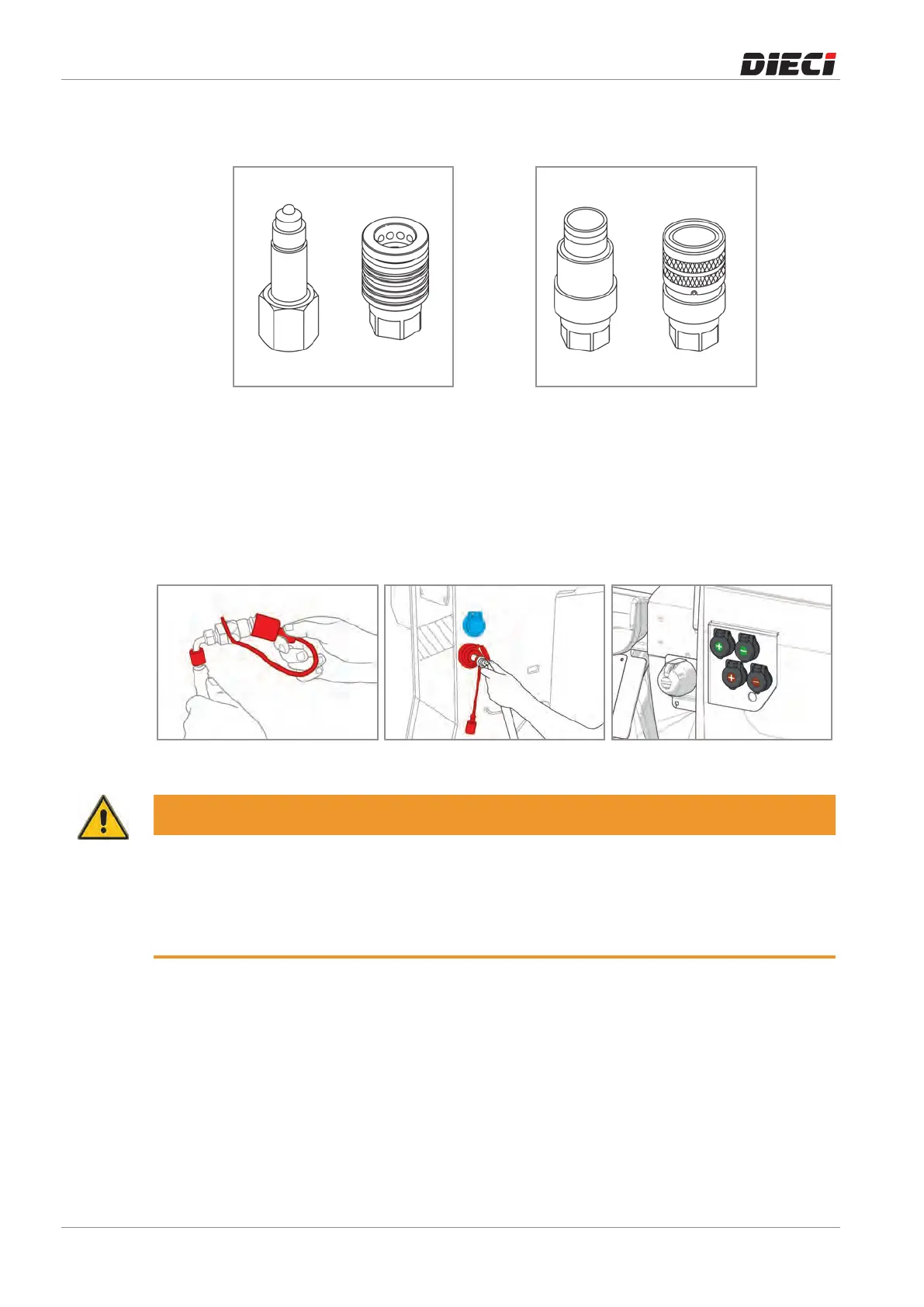

9.3.2 Type of hydraulic quick couplings
Thehydraulicquickcouplingsatboomheadcanbeoftwotypes:
PushPull(fig.1505091) FlatFace(fig.1505092)
9.3.3 References for correct connection
Tomakethecorrectconnectionofthehydraulicfittings,eachhydraulicplugorsocketismarkedwithacolor
orsymbol.
– Theredplugsmustbeconnectedtotheredsocketsorthosewiththe“+”mark.
– Theblueplugsmustbeconnectedtothebluesocketsorthosewiththe“-”mark.
Cap and mark on the hydraulic
sockets.
Hydraulic sockets on the boom
head
Rear hydraulic sockets
(if present).
WARNING
Equipment with hydraulic connections made incorrectly have movements or functions
that do not agree with the operator's controls and can cause damage to other operators,
material handled or to the vehicle and equipment.
Always make sure that the hydraulic connections follow the indications given above for proper
connection and that the movements and functions of the equipment comply with the operator controls.
