Dieci APOLLO MINI AGRI - Tilting Indicator Use; Buckets Safe Working Procedures

Equipment | 9
AXH1230‐UK ﴾ENG﴿ ‐ Apollo KM 177

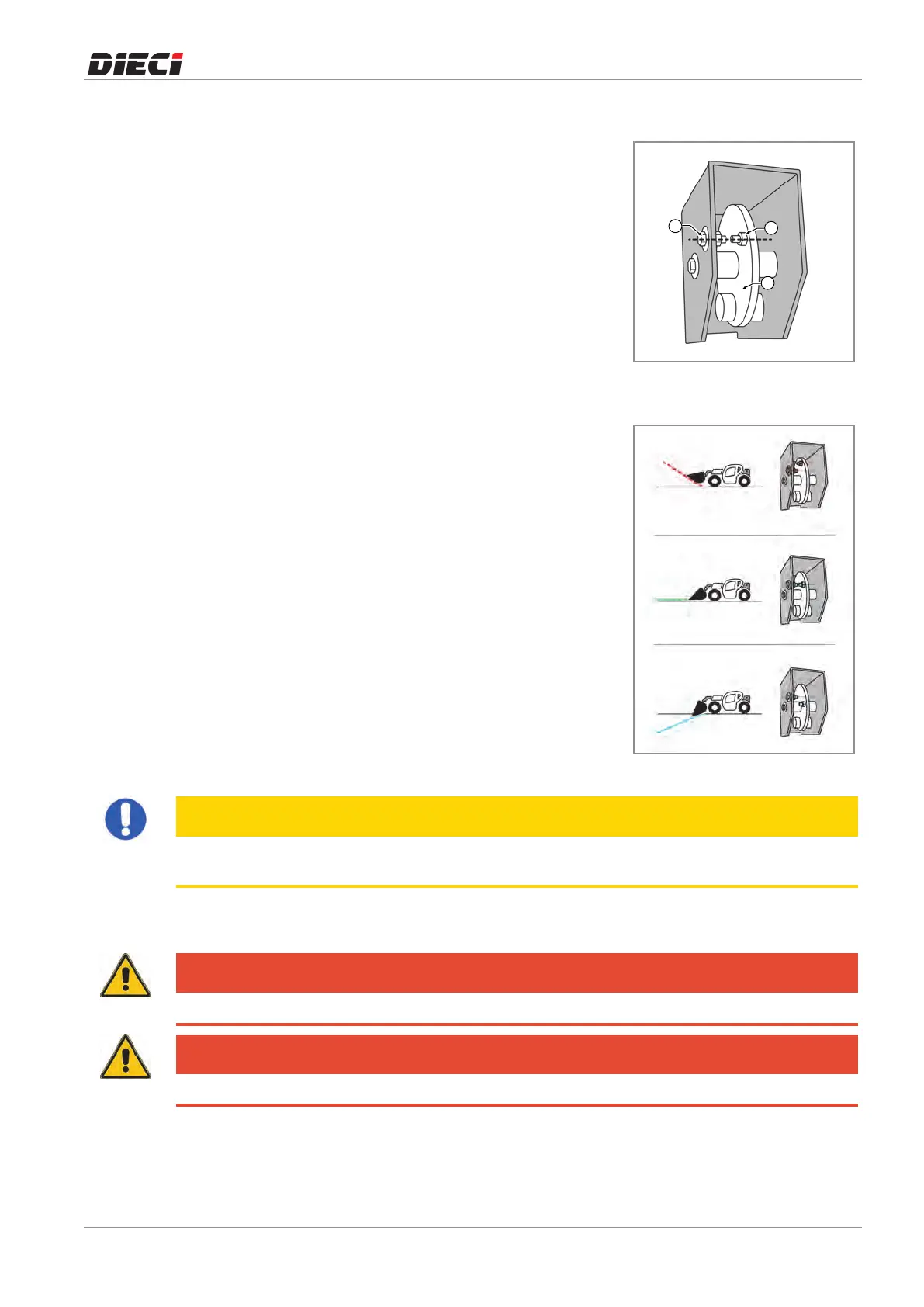

9.8.5 Tilting indicator use
In the left part of the bucketthere is the leveling indicator (fig.
1505251),thistoolallowstoknowtheangleofthebucketduring
use.
Itiscomposedofanoscillatingdisk“1”andtwoindicators“2”and
“3”.
Theposition of the indicator fastened to the oscillating disk “2”
compared to the indicator fastened to the bucket structure “3”
indicatestheangleofthebucket.
Incasetheindicatoronthediskis:
– Above:thebucketisturnedupwards
– Even:thebucketisalignedtotheground
– Under:thebucketisturneddownwards
2
1
3
150525-1
150525-2
CAUTION
During the bucket loading phase, to obtain the maximum efficiency of the bucket it is appropriate to use
the bucket aligned to the ground.
9.8.6 Buckets Safe Working Procedures
DANGER
Do not change the structure of the equipment.
DANGER
Do not use the equipment for lifting persons, animals or things other than those specified.
9.8.6.1 Checks before lifting
Beforestartingtheoperations,performthesechecksandinspectionstoensuregreatersafetyforoperators.
