9.3.4 Push-Pull couplings connection
ToconnectthePushPull quick couplings to the sockets
ontheboomhead:
1. Perform the equipment installation procedures
described in the chapter: "Equipment installation
procedure".
2. Turnoffthevehicle.
3. In case of closed center distributor, discharge the
system residue pressure (refer to chapter Closed
center distributor: Relieve the pressure through
the trailer Descent button [}154]).
4. Remove the protective cap from the equipment
hydraulicplugs(fig.1505101).
5. Lift the protective cover for the hydraulic socket
presentontheboomhead(fig.1505102).
6. Cleantheplugandsocket,ifsoiled.
7. Fitthepluginsidethesocketandpressuntilthetube
isblocked(fig.1505103).
8. Checkthatthehydraulictubeiscorrectlyfixed.
9. Carryoutthesameoperationforbothtubes.

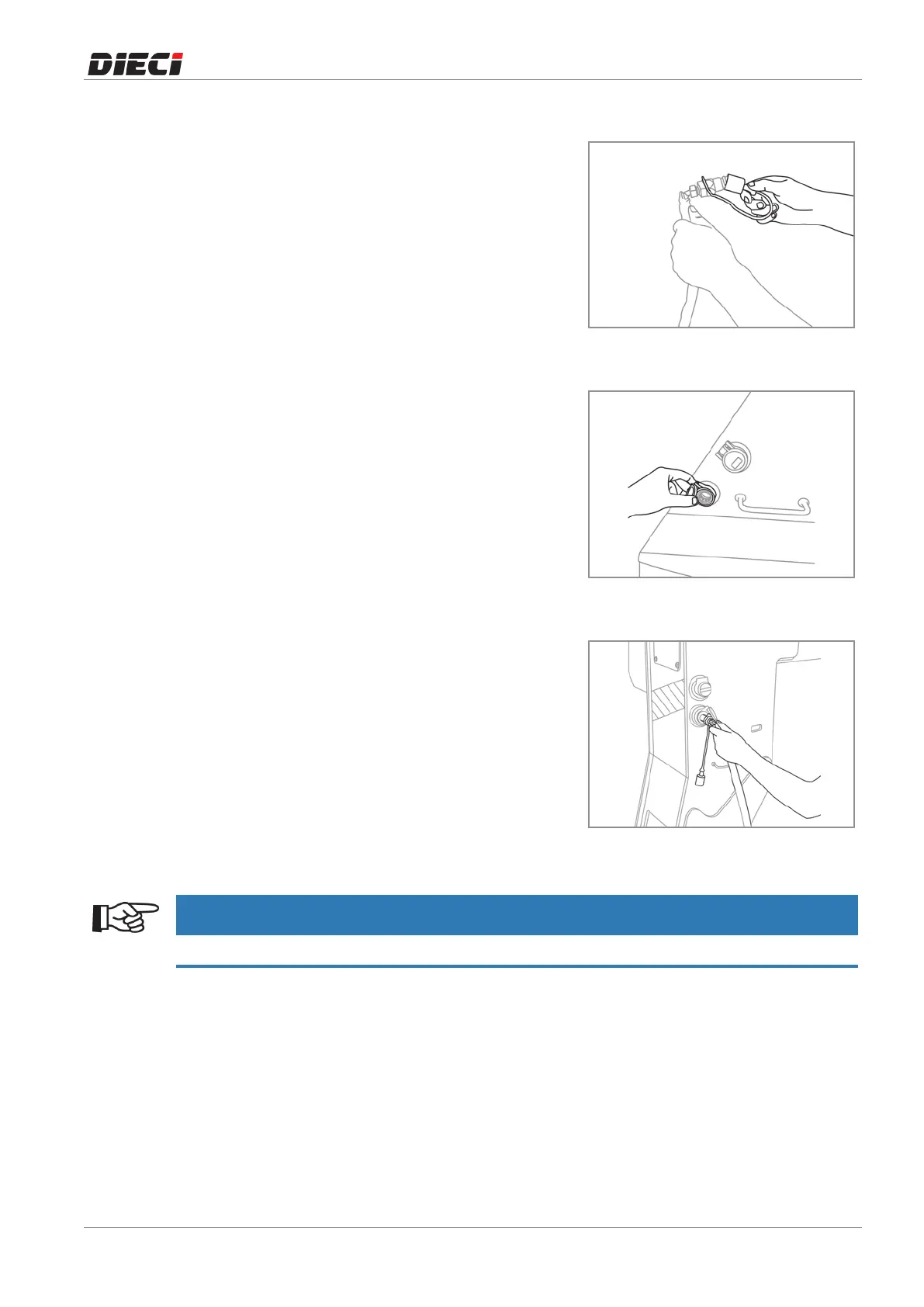

150510-1
150510-2
150510-3
NOTICE
Consult the equipment manual to verify correct operation.
