7 | Vehicle description
66 AXH1230‐UK ﴾ENG﴿ ‐ Apollo KM
7.4 Cab description

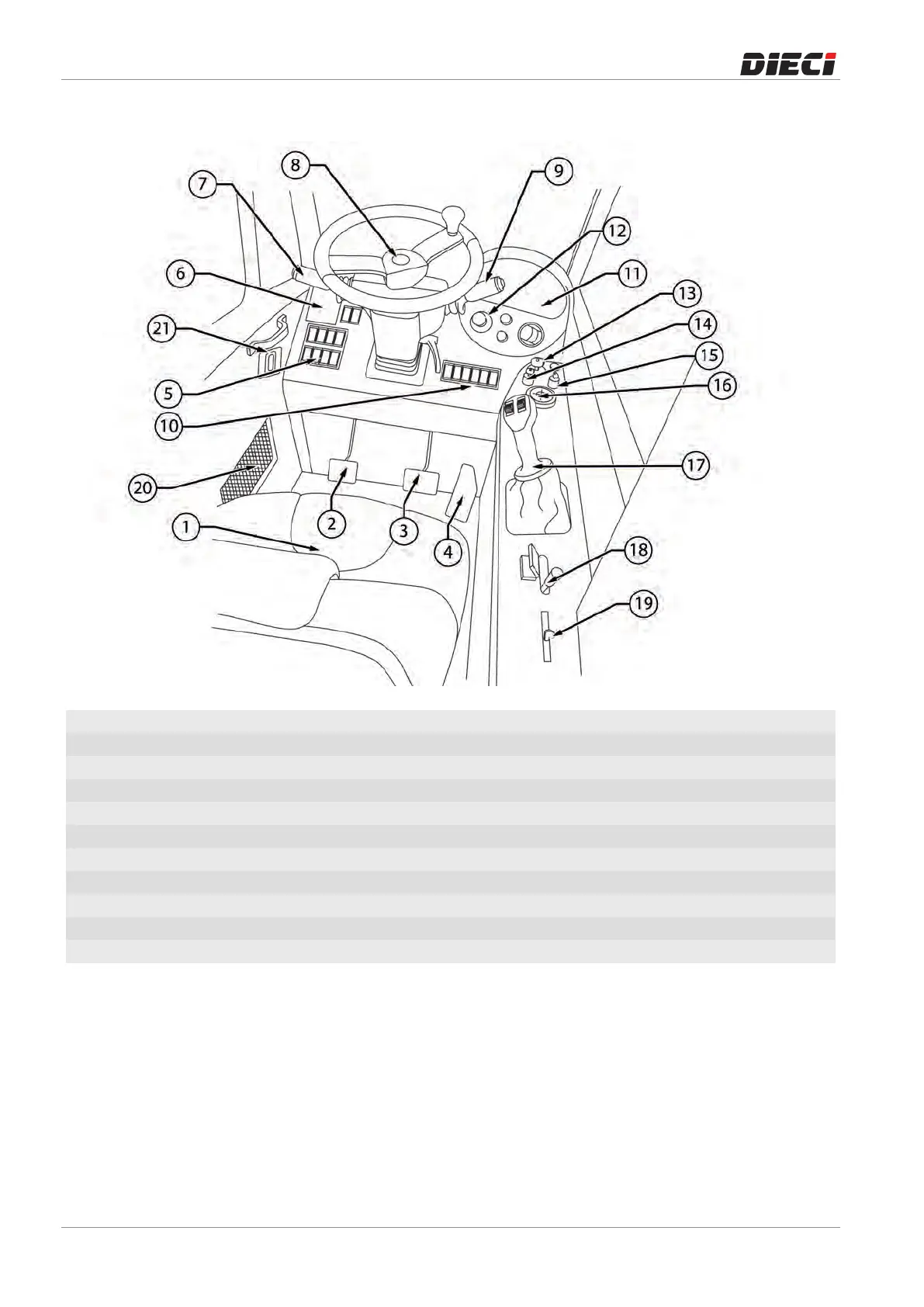

Illustration4: 150989:Componentsinsidethecab
1 Seat 2 InchingPedal
3 Brakepedal 4 Acceleratorpedal
5 Leftinstrumentpanel 6 Diagramsnotebook
7 Movementselectionlever 8 Steeringwheel
9 Windowwipersanddirectionindicatorslever 10 Rightinstrumentpanel
11 Instrumentpanel 12 Emergencystopbutton
13 Ignitionkey 14 ByPasskey
15 Equipmentselectionkey 16 SpiritLevel
17 Joystick 18 Steeringselectionlever
19 Heatinglever 20 Documentholdernet
21 Dooropeninghandle
