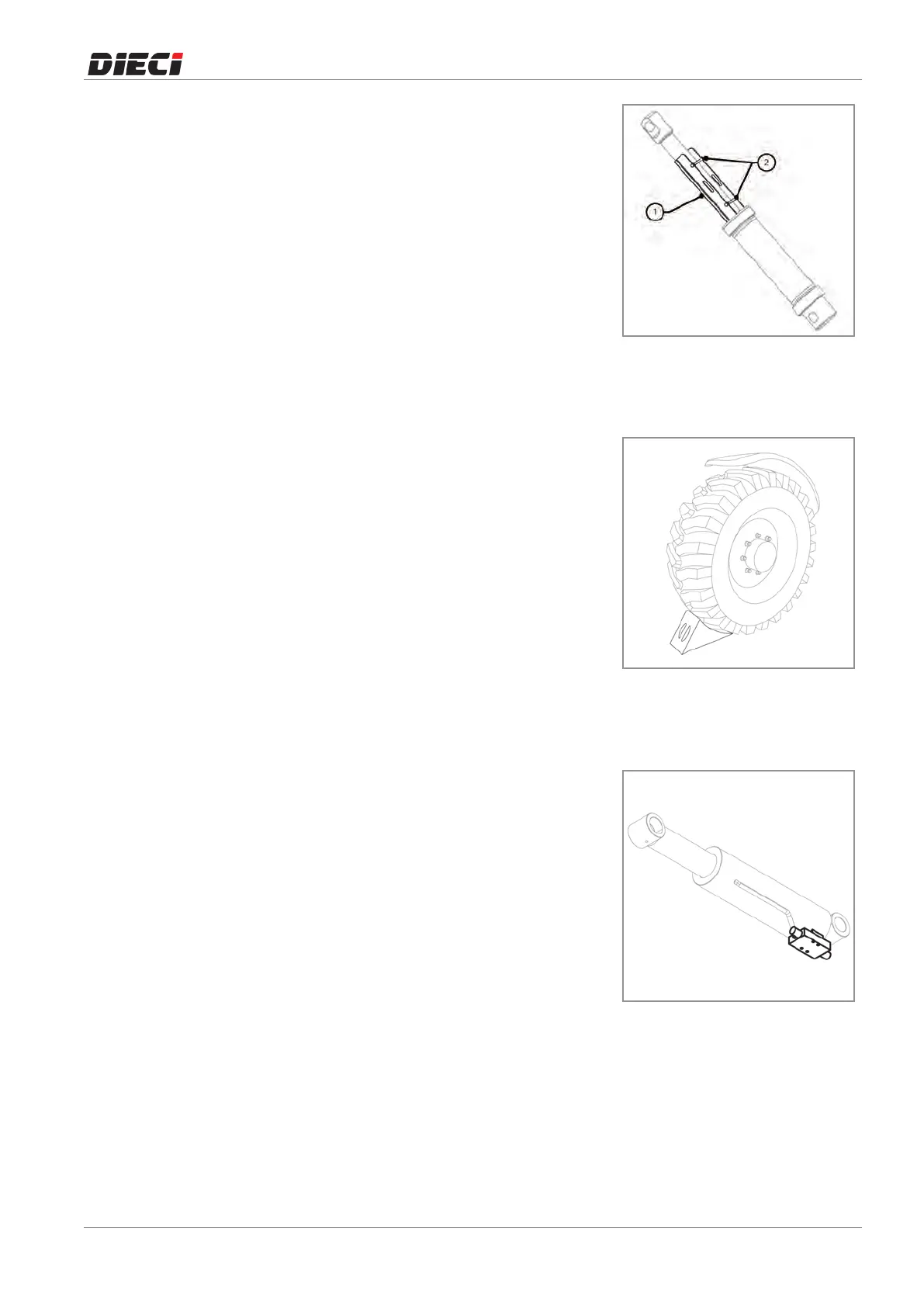

Toinsertthesafetyrod"1"(fig.1504591)operateasfollows:
– Completelyclosetheextensionsofthetelescopicboom
– Lifttheboom totheminimum heightnecessaryto apply
thesafetyrod
– Applythesafetyrodaroundtheliftingcylinderrod
Lockthesafetyrodbymeansoftheappropriatehooks"2".
150459-1
8.16 Wheel wedge
The wheel wedge (fig. 1504601) must be used as a safety
measuretopreventaccidentalorunwantedmovementsofthe
vehicle.
It is advisable to use them when parking the vehicle during
stopsalongslopesorduringmaintenanceoperations.
150460-1
8.17 Block valves
The block valves (fig. 1504611) for cylinders prevent
uncontrolledmovementof thepistonsof thecylindersinthe
eventofhydraulicpressurefailureorburstingofahose.
Thevalvesareinstalleddirectlyonallthecylinders.
150461-1
