20.3 Fuse box

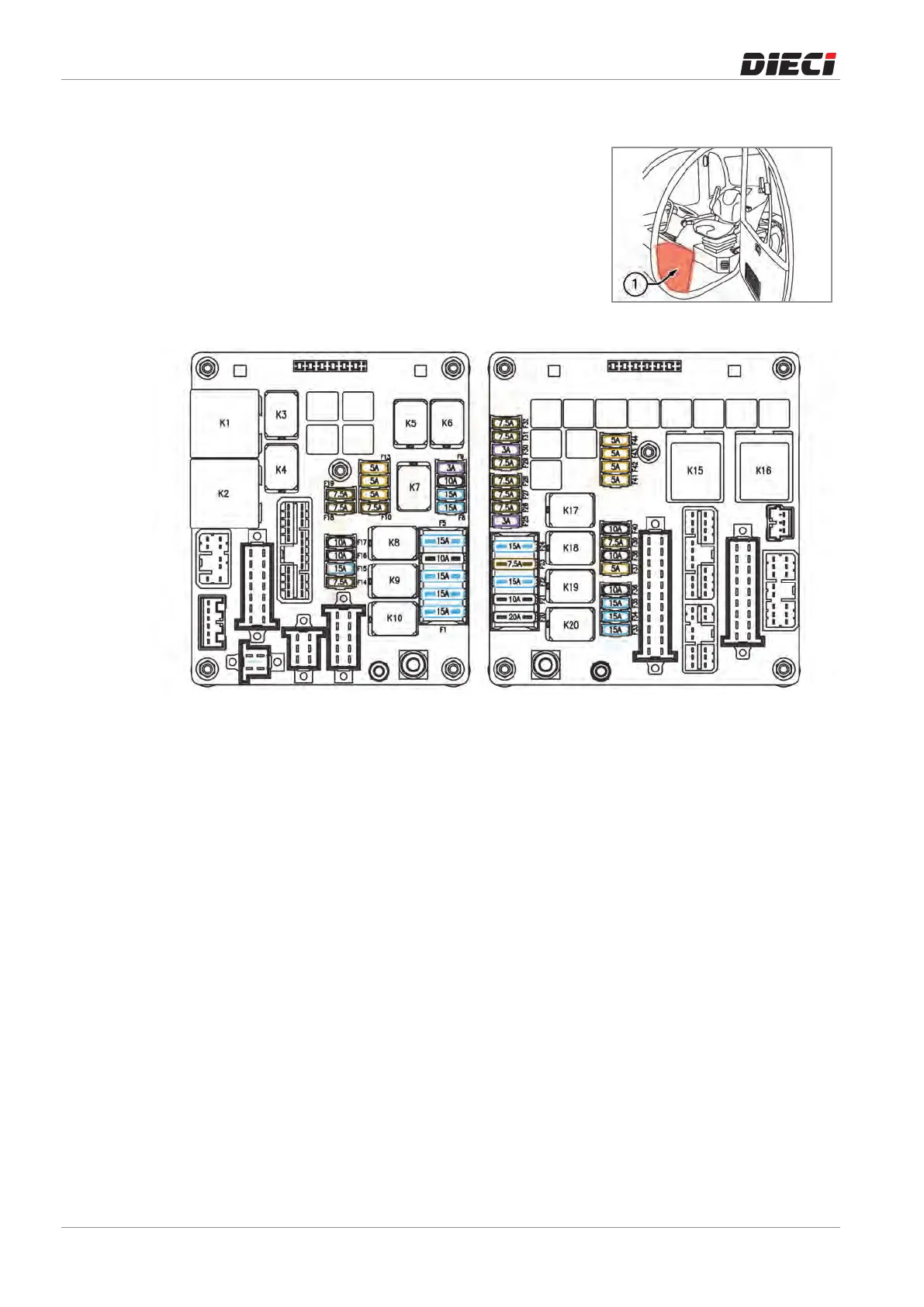

The main circuit is protected by fuses placed in the general
electronicboard(fig.1507201).
To access the fuse box, remove the left plastic part aside the
instrument panel by unscrewing the related screws (Fig
1507202).
Incaseofelectricalmalfunctionitisnecessarytocheckthefuses
asafirsttroubleshootingstep.
WARNING! Before accessing the fuse box in the cab,
set the vehicle in the maintenance position.
150720-2
Illustration19: 1507201
