Dieci APOLLO MINI AGRI - Electrical Contact on Boom Head

Components description | 8
AXH1230‐UK ﴾ENG﴿ ‐ Apollo KM 125
8.11 Electrical contact on boom head *
NOTICE
* The electric contact on the boom head is an optional accessory.
Atthesocketoftheelectriccontactonthetelescopicboomhead
(fig.1502041)itispossibletoconnect:
– The plug of the solenoid valve of the Second Additional
hydraulicsocket
– The plug of any equipment installed on the tools holder
plate.

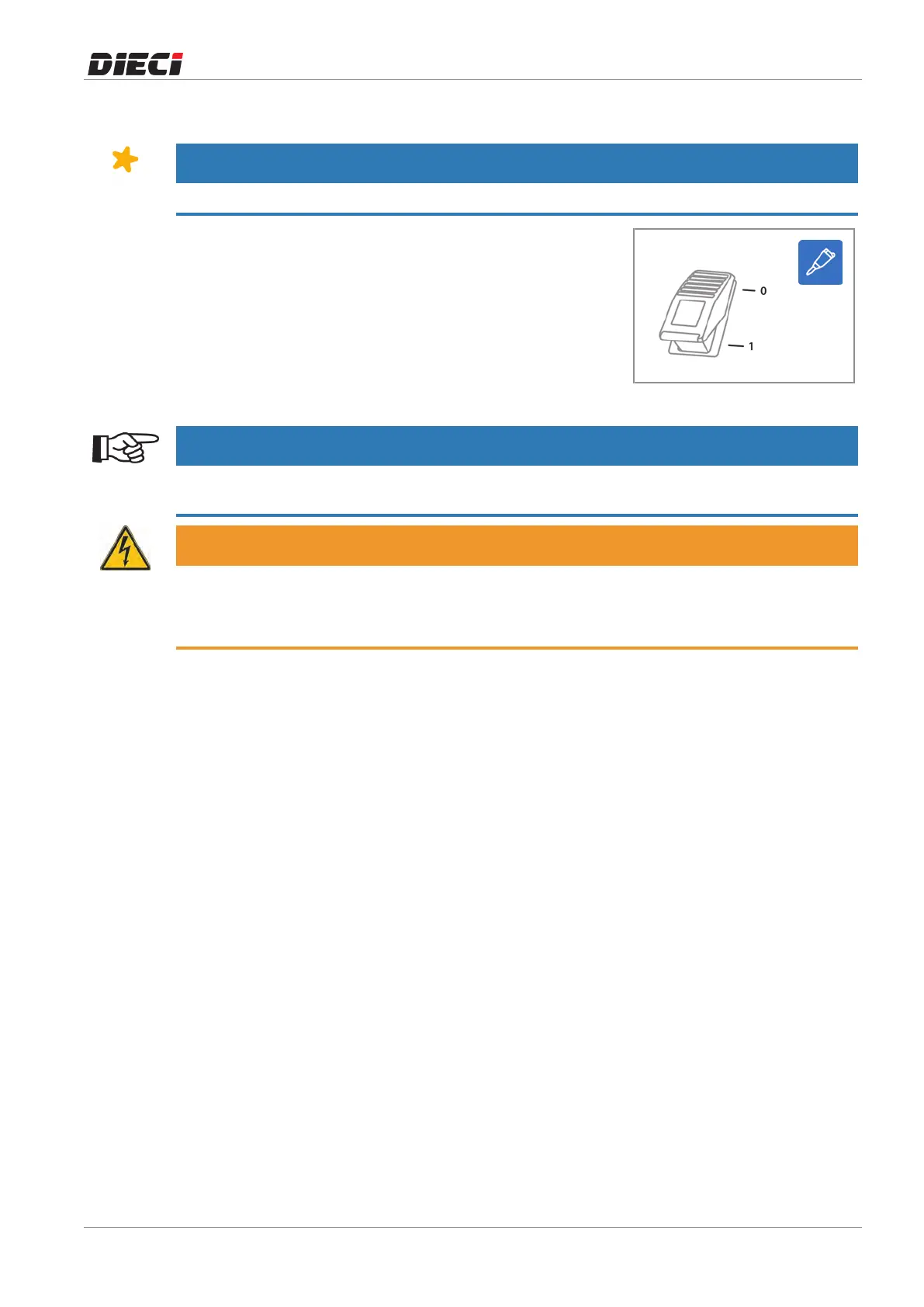

Toactivatetheelectricalcontact,placetheSocketsswitchonthe
boomheadinposition"1"Seetableinthepreviouschapter.
150204-1
NOTICE
For information on how to make the connections to the electrical socket, refer to the "Electrical
connections" chapter.
WARNING
Do not connect users with nominal voltage greater than 12 V and amperage greater than
3 A.
Risk of damage to the electrical system.
