Transmission, addressing, and routing RF packet routing
Digi XBee® 3 Zigbee® RF Module
108
address of the sender, and the 16-bit address of each hop in the route. The data collector can store
the routing information and retrieve it later to send a source routed packet to the remote as shown in
the following images.

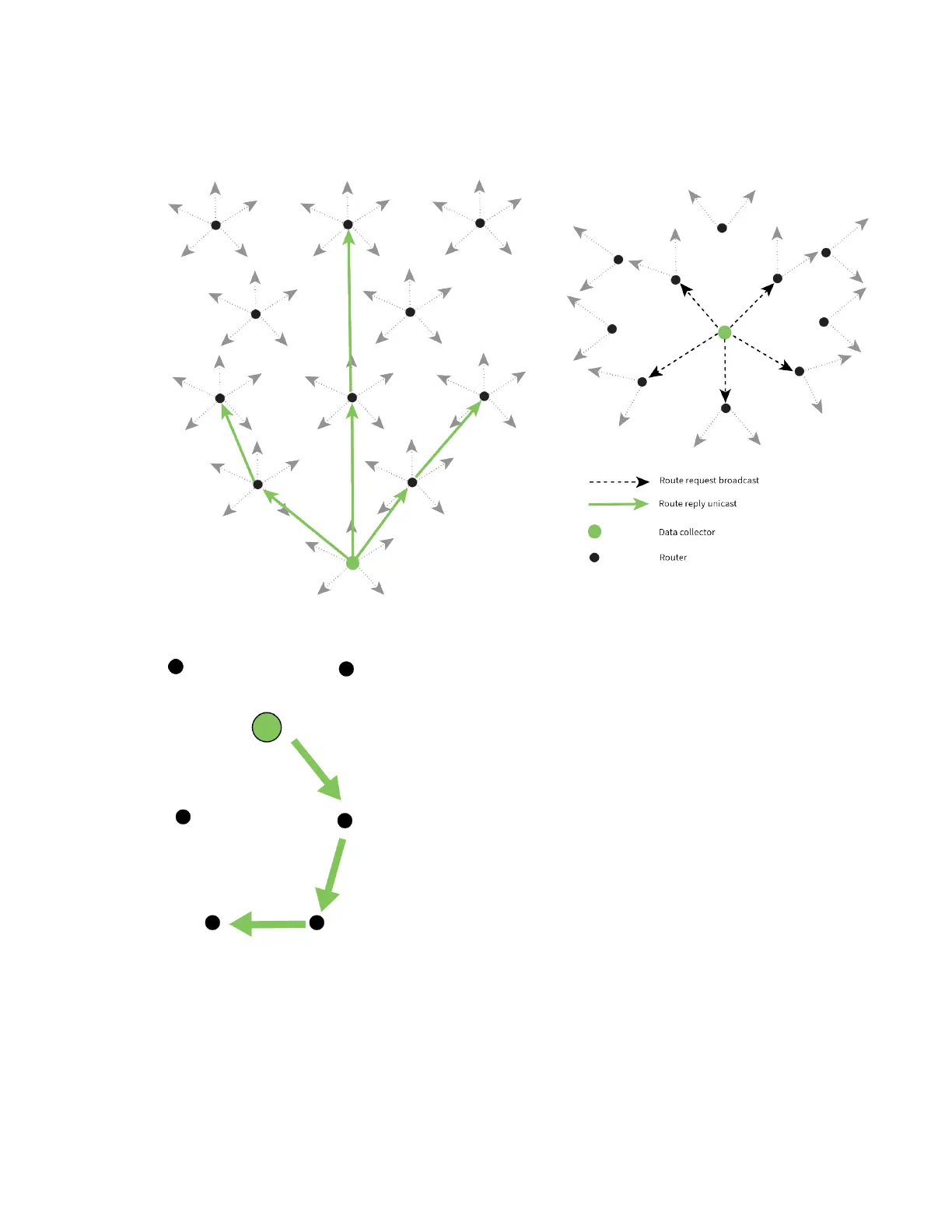

The data collector sends a many-to-one route request broadcast to create reverse routes on all
devices.
A remote device sends an RF data packet to the data collector. This is prefaced by a route record
transmission to the data collector.
