API Operation API serial exchanges

Digi XBee® 3 Zigbee® RF Module

235

API serial exchanges

You can use the Frame ID field to correlate between the outgoing frames and associated responses.

AT commands

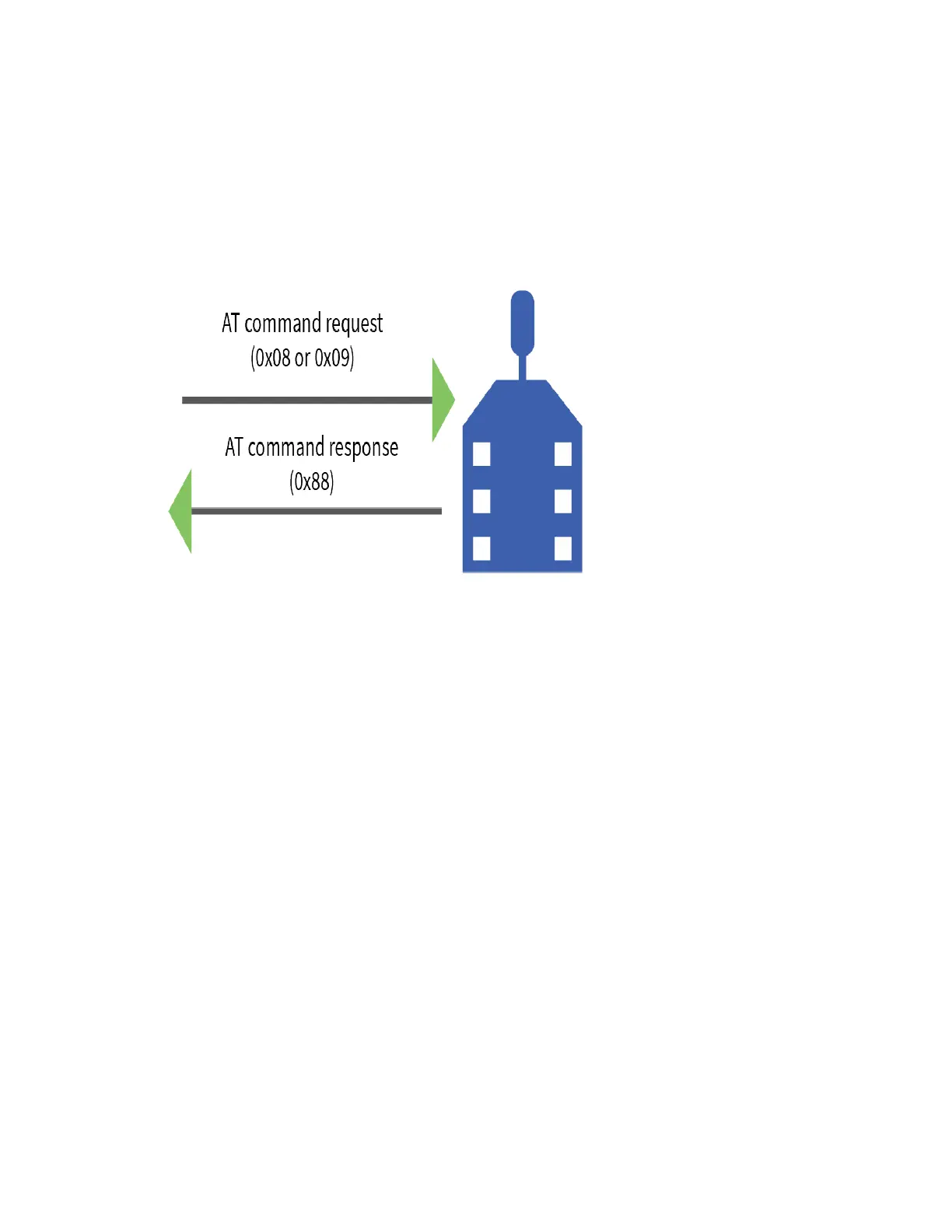

The following image shows the API frame exchange that takes place at the serial interface when

sending an AT command request to read or set a device parameter. You can disable the response by

setting the frame ID to 0 in the request.
