Manage End Devices End Device configuration
Digi XBee® 3 Zigbee® RF Module
158

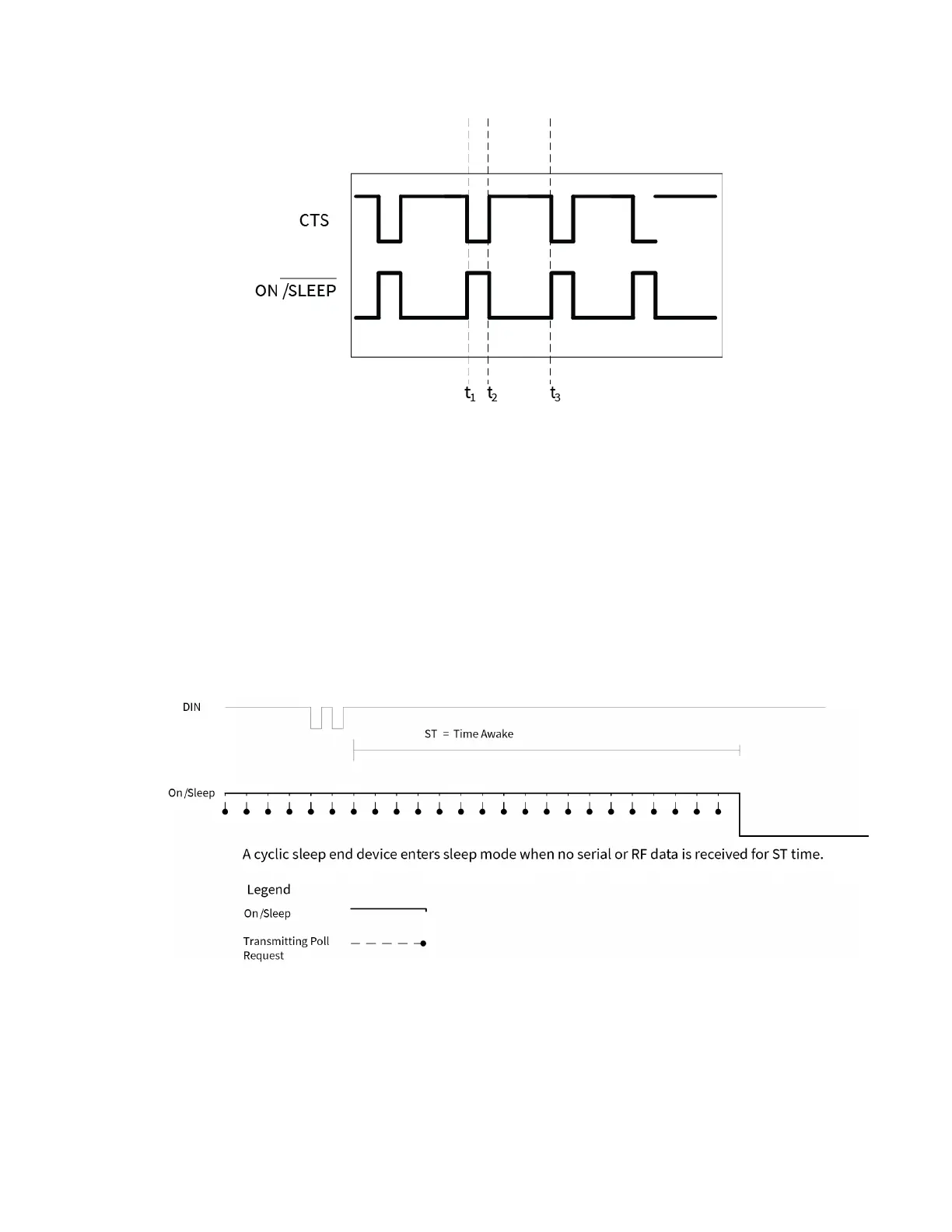

In the figure above, t1, t2, and t3 represent the following events:
n t1 - Time when the device wakes from cyclic sleep
n t2 - Time when the device returns to sleep
n t3 - Later time when the device wakes from cyclic sleep
The wake time and sleep time are configurable with software commands.
Wake time (until sleep)
In cyclic sleep mode (SM = 4 or 5), if the device receives serial or RF data, it starts a sleep timer (time
until sleep). Any data received serially or over the RF link restarts the timer. Set the sleep timer value
with ST (Cyclic Sleep Wake Time). While the device is awake, it sends poll request transmissions every
100 ms to check its parent for buffered data messages. The device returns to sleep when the sleep
timer expires, or if it receives SI (Sleep Immediately) as shown in the following image.
Sleep period
Configure the sleep period based on the SP, SN, and SO commands. The following table lists the
behavior of these commands.
