VENUE Profile Guide24
Using Digital Audio Outputs from the VENUE
System
Connect any digital output to a digital input of the external
device: Use digital outputs on the Mix Rack (if the system also
includes an XO16 card), Stage Rack (if the system also includes
a DSO card) or any digital output on the FOH Rack. Set the ex-
ternal device to slave to its digital input.
Using House Clock
Connect a “house” or other external master clock signal to
the Word Clock In on the FOH Rack. Distribute the same
house clock to the external digital device, and set it to slave to
the incoming house word clock signal.

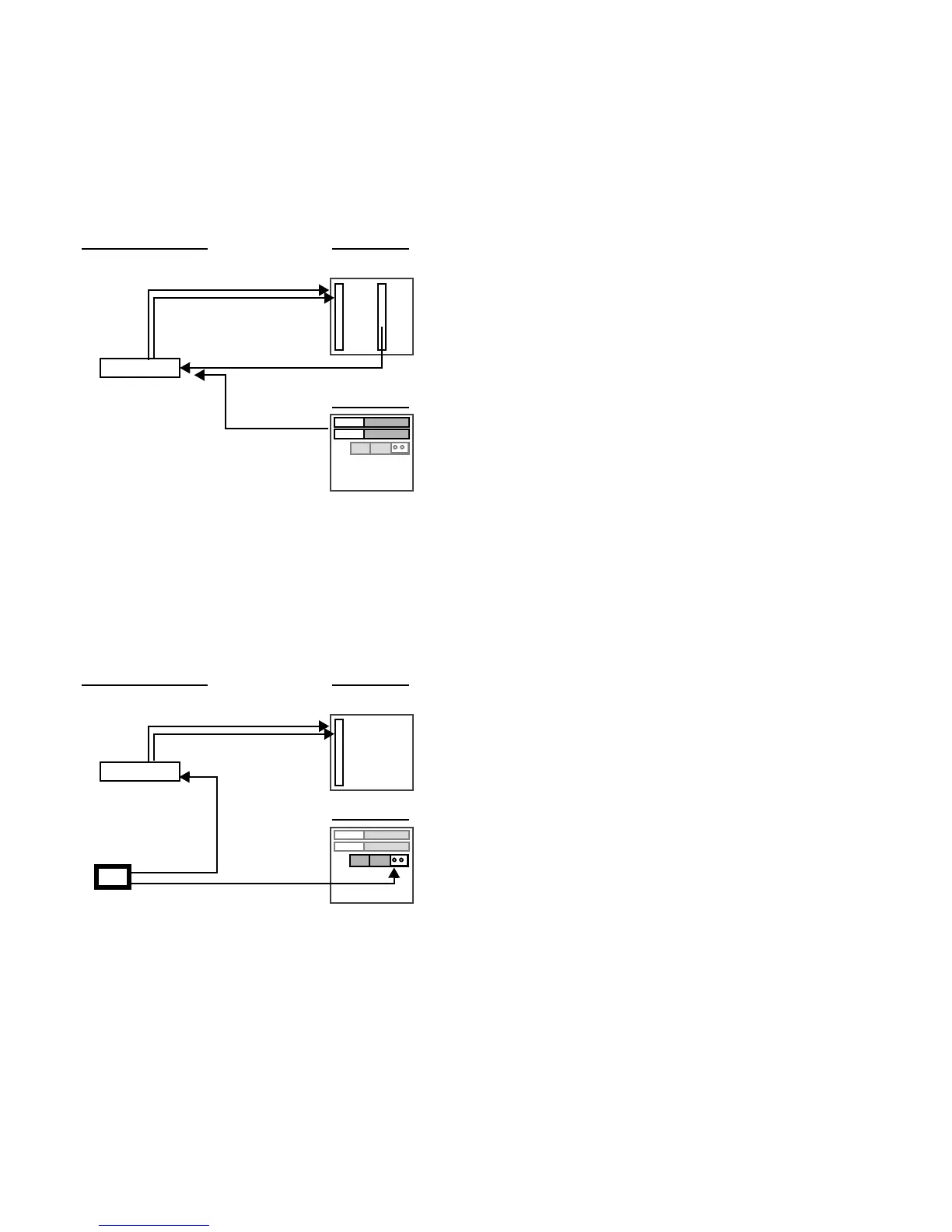

Using a digital output to provide clock to an external device
Using a distributed house (master) to clock a VENUE system and an
external device
Stage Rack
DSI card
FOH Rack
Set device to slave to
incoming digital signal
External digital device
AES (or ADAT)
DSO card
AES (or ADAT)
from DSO card
-or-
any FOH Rack
digital audio output
BNC
Stage Rack
DSI card
FOH Rack
Set device to slave to
incoming Word Clock
External digital device
AES (or ADAT)
Word Clock In
House clock source
BNC
