Sweep Frequency Response Analyzer (SFRA) User Guide
1-4 72A-2570-01 Rev. K 07/2011
Software
The M5200 and M5400 are controlled by a user-supplied laptop computer
running Doble SFRA software (supplied with the instrument). The M5300
comes with a built-in PC, laptop keyboard, and preinstalled Doble SFRA
software.
PC Requirements
To see the minimum requirements for the PC used with the M5200 or M5400,
please go to “PC Requirements” on page E-4.
Communication Cables
USB
No picture available.
Has a square and an
oblong connector.
181-0585
Ethernet crossover
No picture available.
Has two Ethernet
connectors. Required
for SFRA. SFRA does
not work with a
standard network
cable without a
crossover adapter.
181-0646
Other Hardware

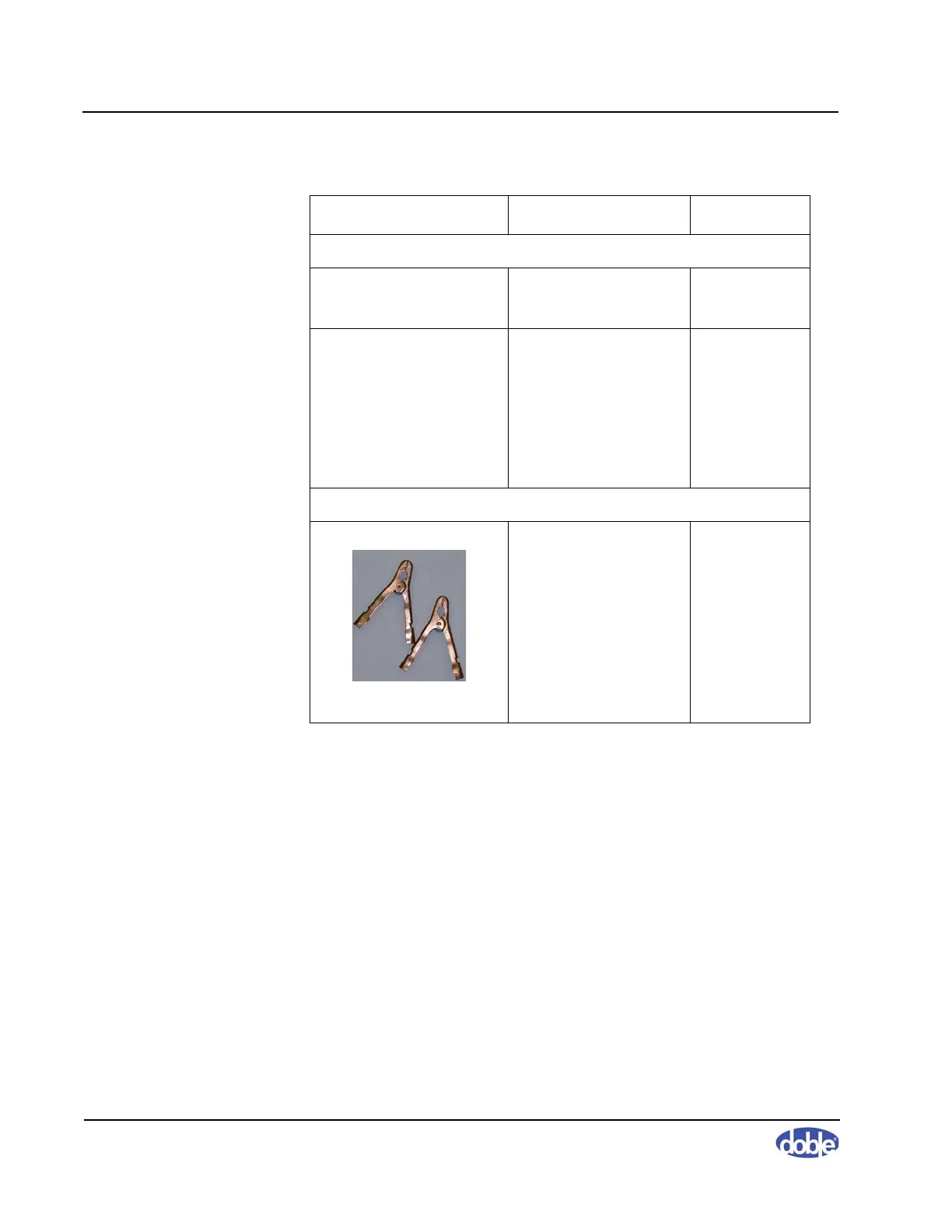

Clamps Two plain copper
clamps. These clamps
connect to larger
bushing studs or
terminals that the
normal connectors do
not fit. The standard
test cables then clip to
these large clamps.
212-0444
Table 1.2 Accessories for the SFRA Instruments
Item Description Part No.
