3. Setting Up and Running a Test
72A-2570-01 Rev
. K 07/201
1
3-1
1

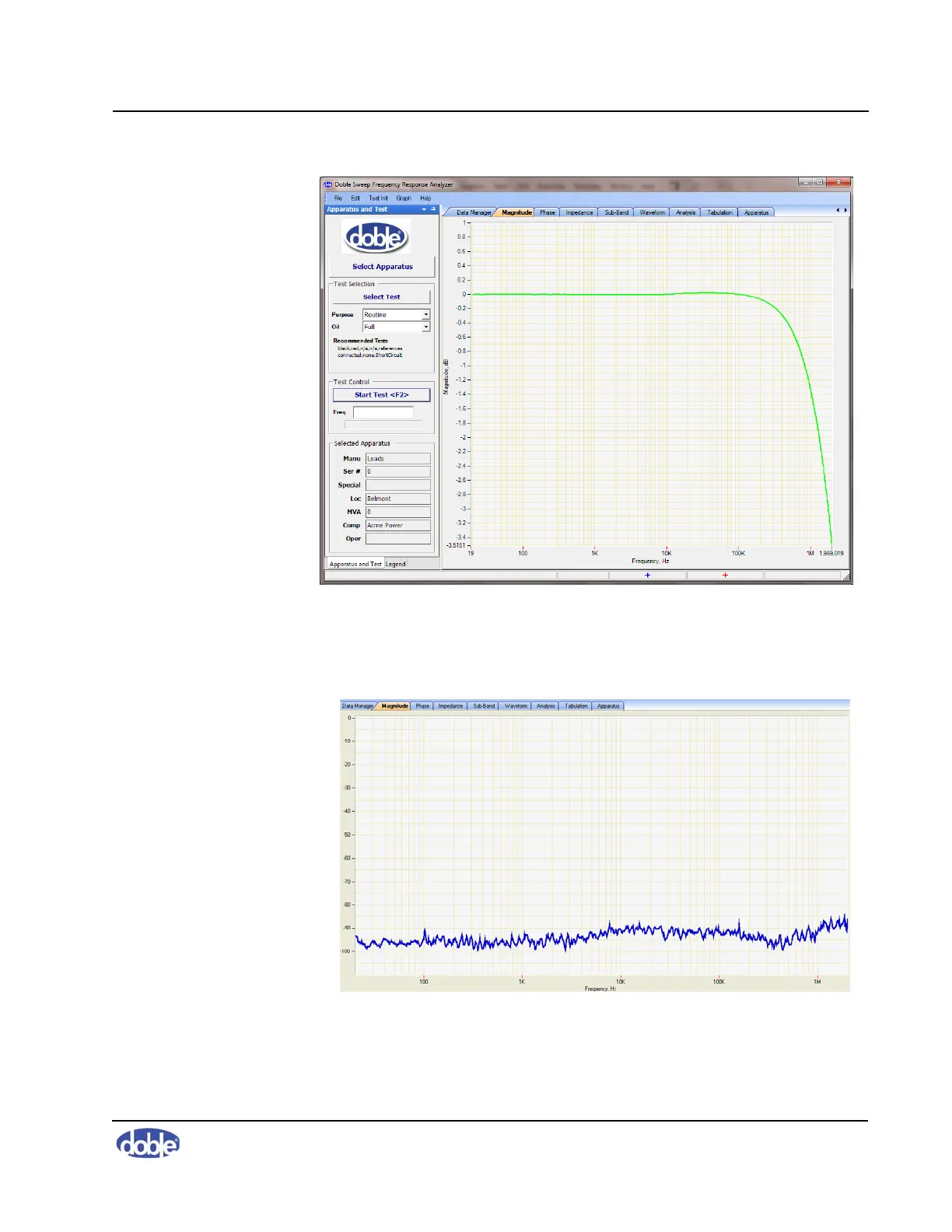

Figure 3.16 Correct Shorted-lead Response
If the result resembles
Figure
3.17
, examine the leads for an open circuit.
The open-circuit response is
clearly affected by noise.
Figure 3.17 Open-Circuit Lead Response
