doble SFRA User Manual

5. Managing Data and Generating Reports
72A-2570-01 Rev. K 07/2011 5-9

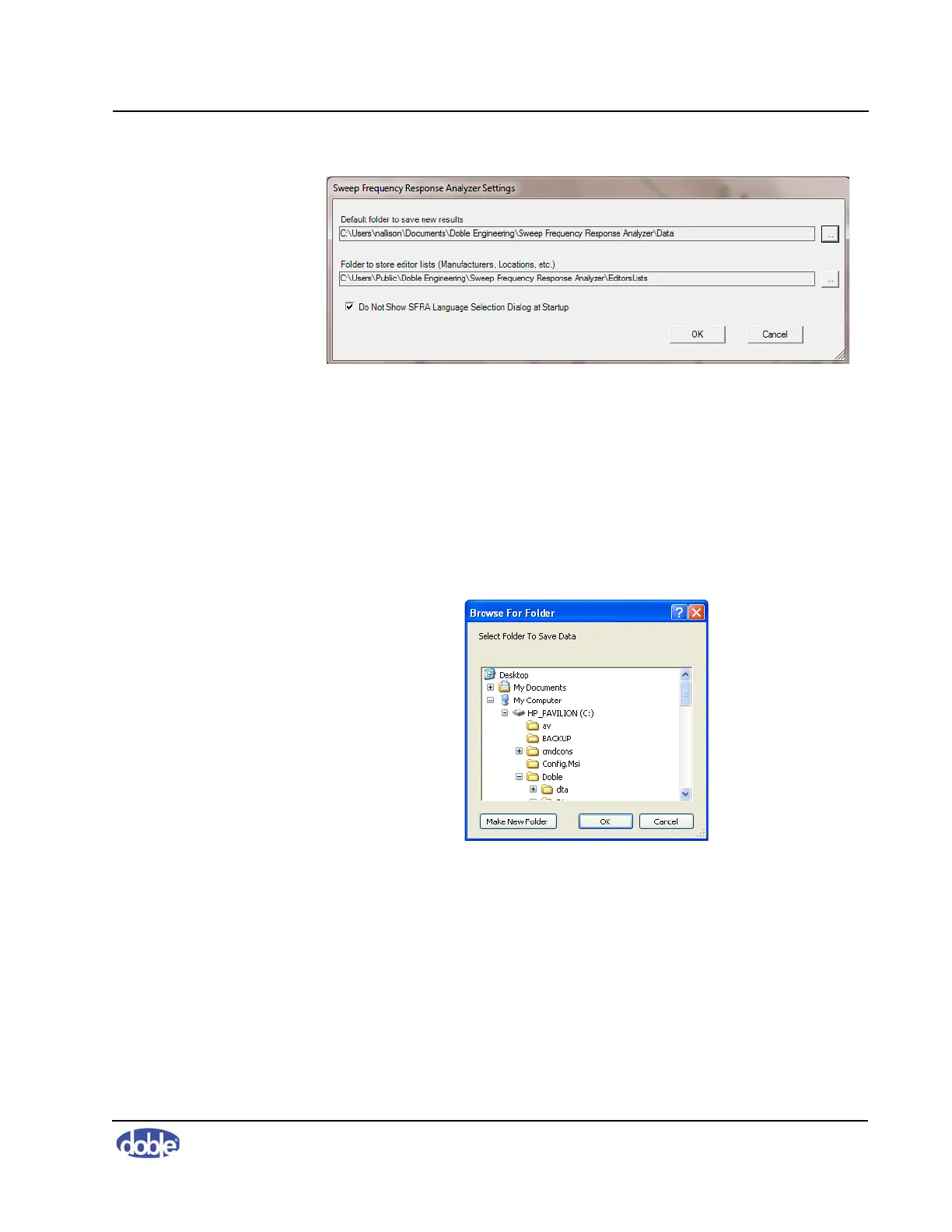

Figure 5.8 Sweep Frequency Response Analyzer Settings Dialog Box
To change the location of a data folder or template file:
1. Select
Edit Options.
The Sweep Frequency Response Analyzer Settings dialog box
(Figure 5.8) appears.
2. Click the ellipsis button at the right of the path you want to change.
The Browse For Folder dialog box appears (Figure 5.9).
Figure 5.9 Browse for Folder Dialog Box
3. Navigate to the desired folder and click
OK.
4. Click
OK.
Selecting a Data Source
To select a folder for viewing data:
1. To search for files in all subfolders of the data folder, check the
Search All
Sub-Folders
check box on the Data Manager tab.
