A. Software Overview
72A-2570-01 Rev. K 07/2011 A-19
Apparatus Tab
The Apparatus tab (Figure A.19) displays test setup, apparatus location, and
transformer nameplate information related to the trace selected in the Legend
pane.

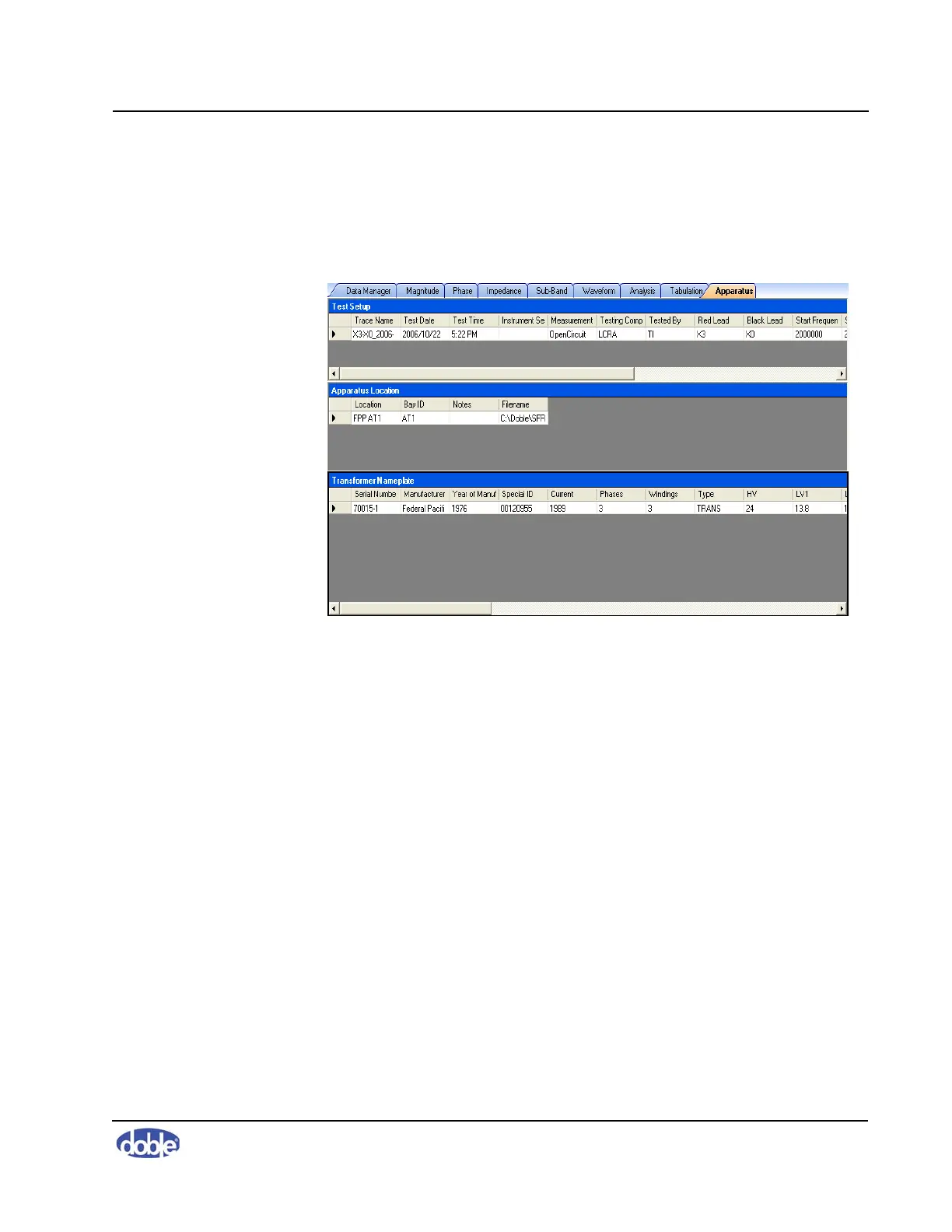

Figure A.19 Apparatus Tab
