A. Software Overview
72A-2570-01 Rev
. K 07/201
1
A-15
Sub-Band T
ab
The Sub-Band tab (
Figure
A.15
) is included for h
istorical continuity
. Early
work on SFRA required results displayed
on graphs of 2 kHz, 20 kHz, 200
kHz, and 2 MHz. The last three of thes
e are included here to permit viewing
those graphs.

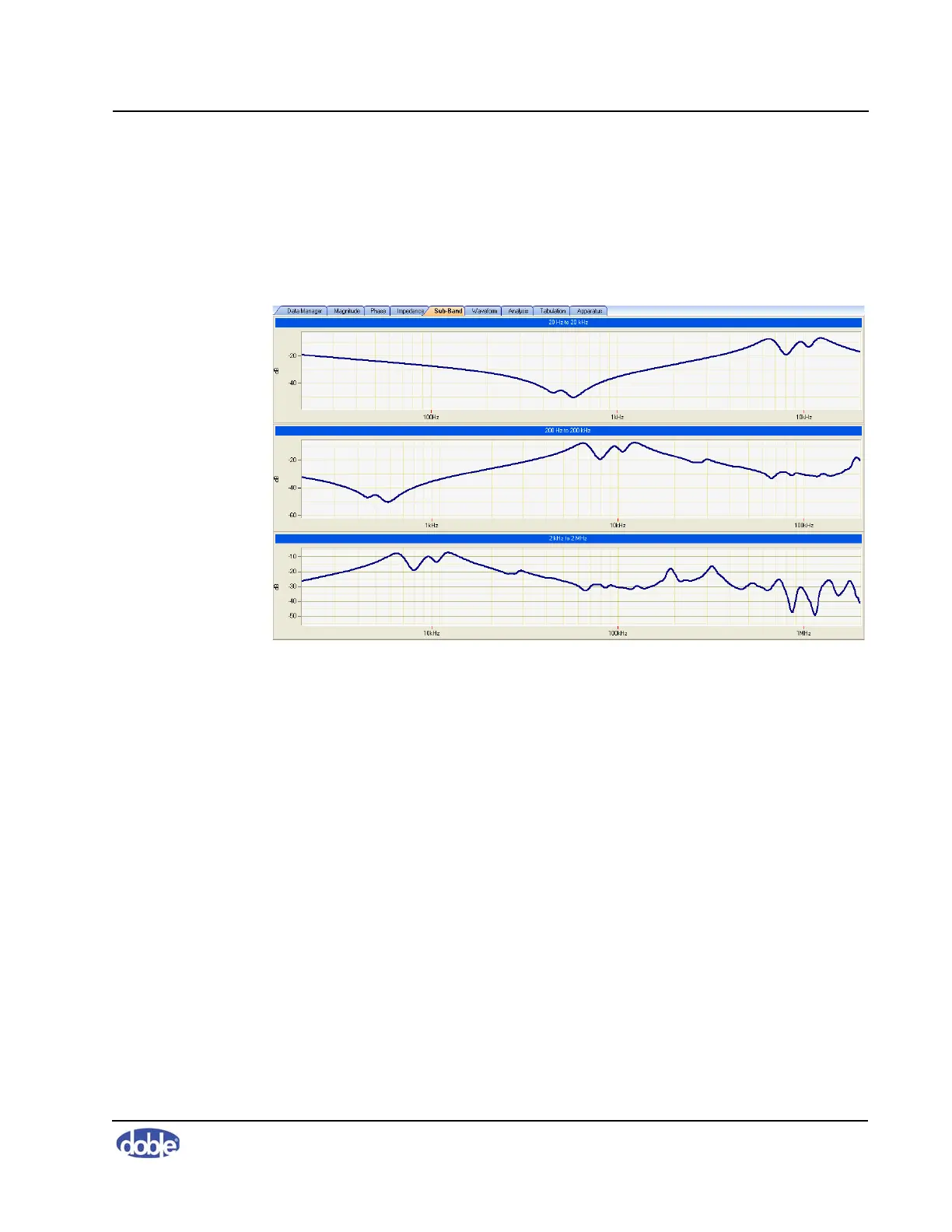

Figure A.15 Sub-Band T
