Sweep Frequency Response Analyzer (SFRA) User Guide
A-14 72A-2570-01 Rev. K 07/2011
Impedance Tab

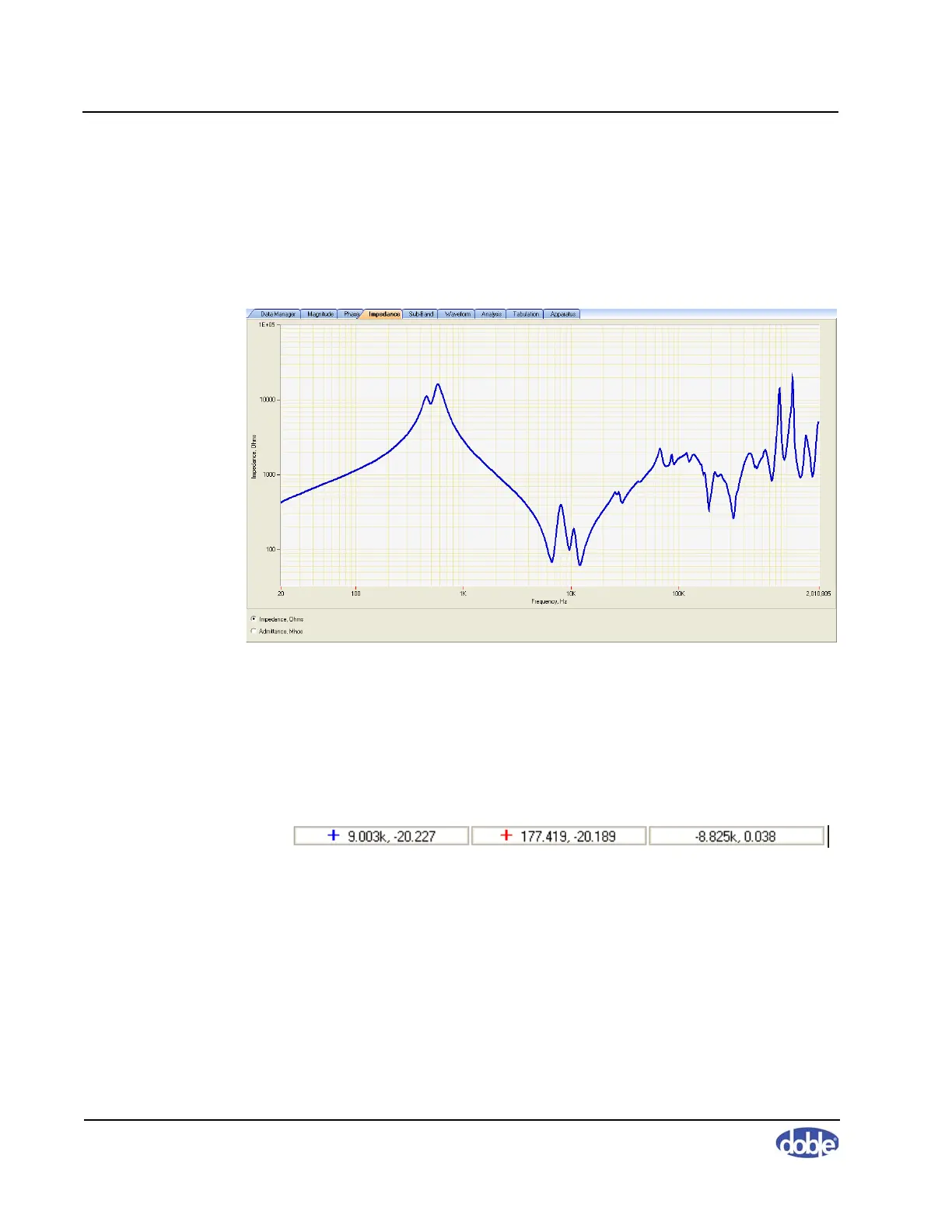

The Impedance tab (Figure A.13) displays Impedance (Z ohms) and
Admittance (Y Mhos) representations, using the magnitude and phase results
for calculation. Use the option button at the lower left to select the desired
display type.
Figure A.13 Impedance Tab
Figure A.14 shows the status bar at the bottom of the main screen. The
coordinates reflect the last change you made to the cursor position on any of
the three tabs. Click the blue or red “+” sign to show or hide the cursors. The
field on the right (active only when both are on) displays the difference
between the two.
Figure A.14 Status Bar
