Assembly and preparation

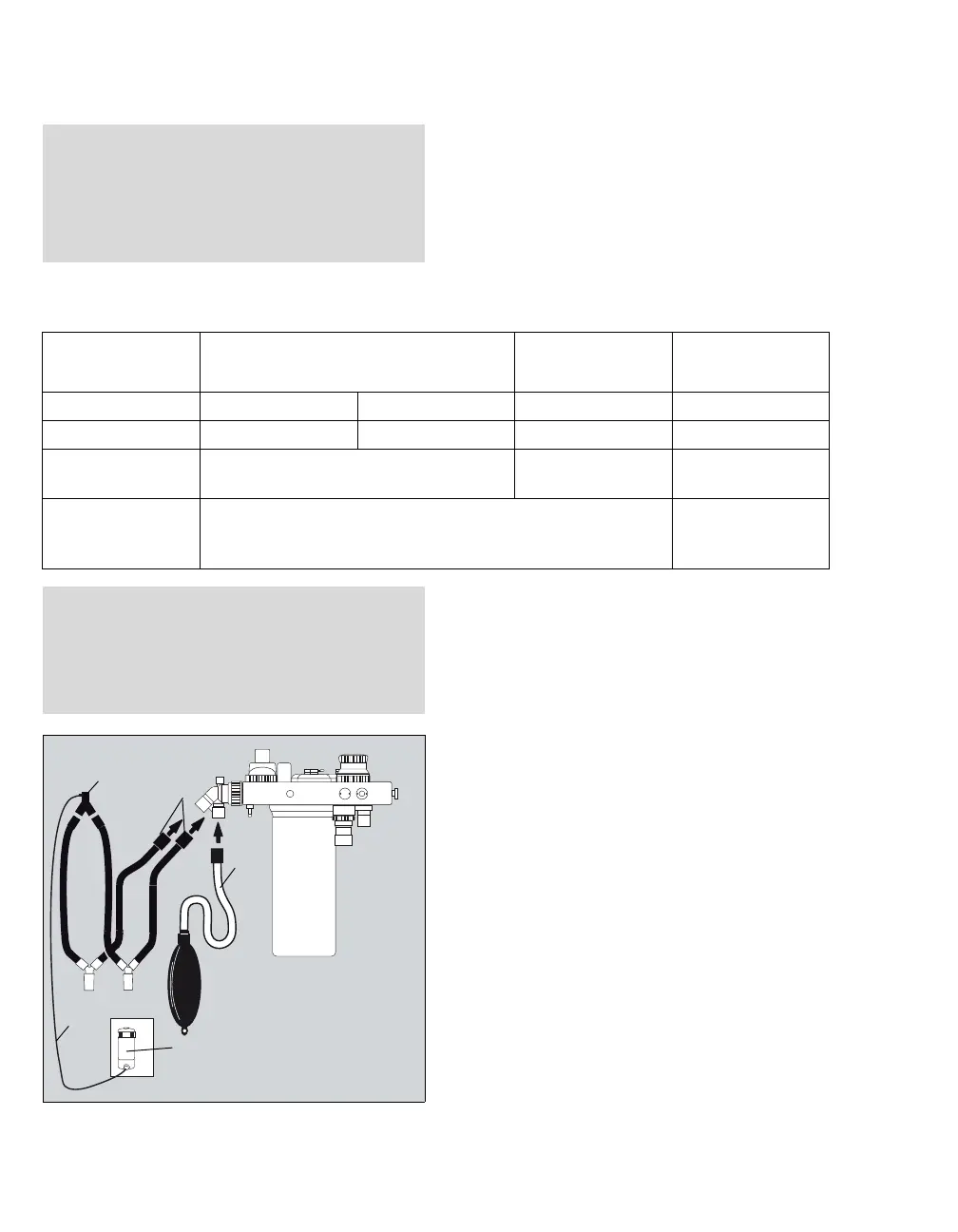

72 Instructions for use Fabius Tiro SW 3.n
1 Select suitable accessories for the respective
patient category.
2 Connect a breathing hose (A) on each of the
inspiratory port and expiratory port, optional
with microbial filter installed.
3 Connect both breathing hoses on the Y-piece
(B).
4 Connect the sample line (D) to the connector of
the Y-piece (B) and to the connector of the
water trap (E) on the patient-gas measurement
module.
5 Connect the breathing bag hose (C) with the
breathing bag to the corresponding connector.
NOTE
Fabius contains no components made of natural
rubber latex.
For latex-free use, use a latex-free breathing bag
and breathing hoses.
Adults Pediatric patients Neonates
Tidal volume >700 mL 201 to 700 mL 50 to 200 mL <50 mL
Breathing bag 3L 2L 1L 0.5L
Breathing circuit Adults Pediatric Neonates (or
pediatric)
Filter Filter, HMEF, or HME Use filters with low
resistance and
compliance.
NOTE
When applying tidal volumes in the range of the
maximum or minimum values indicated for each
patient category, use the smaller breathing bag
and the smaller breathing circuit.
