Rho 1012/1030 EOperation

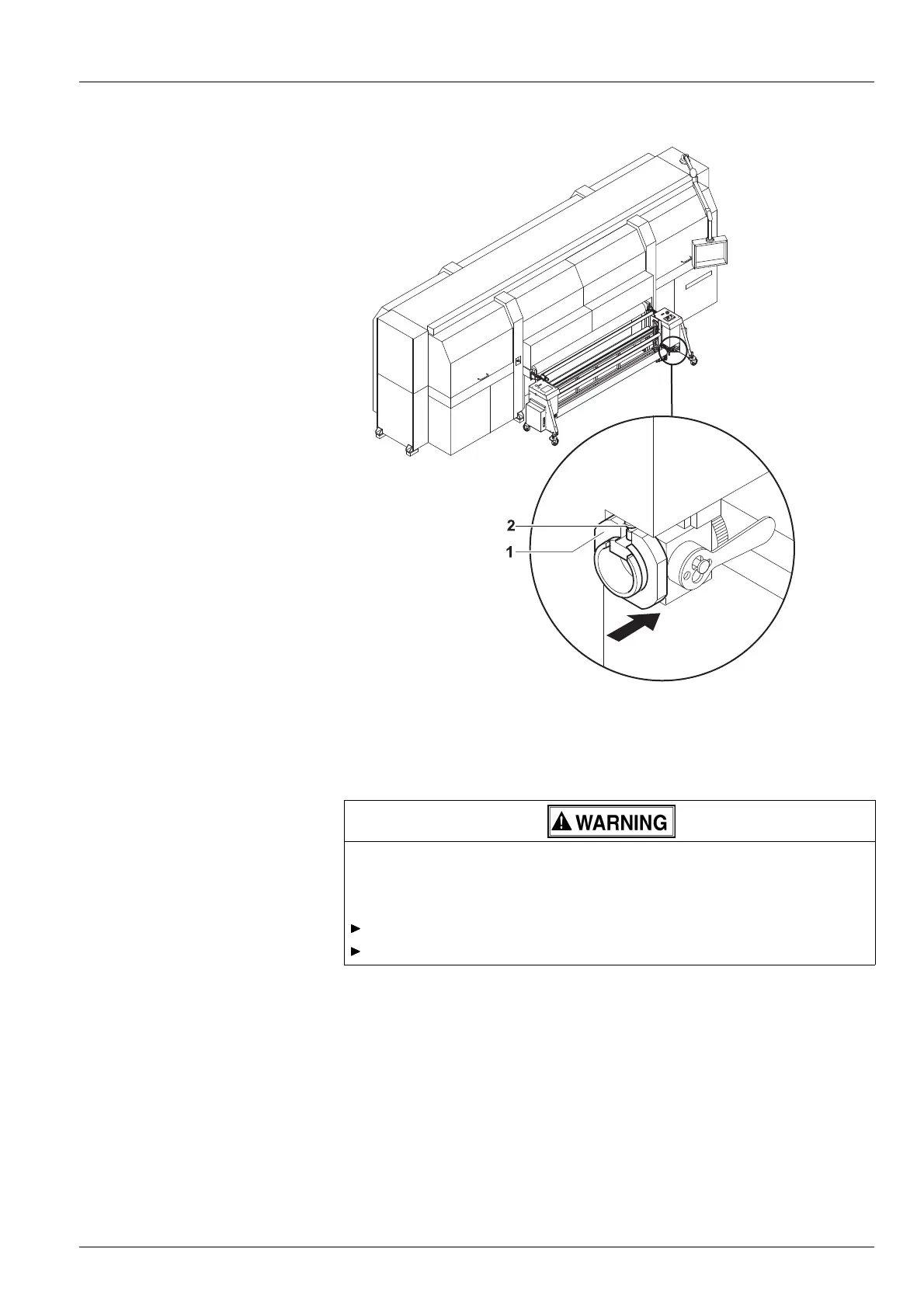

Fig. 41 Opening the groove
5. Open grooves of the right and left roll mounts in the following manner:
– Disengage locking button (2).
– Slide sliding ring in such a way (1) that the groove is exposed.
High weight of the medium!
Danger of c rushing when inserting the ends of the axes into the roll
mount
Wear protective glov es
.
When loading the roll, do not grip the ends of the a xes.
6. Using a hand lift, position the roll with the axis in such a way that the axis
ends are located above the grooves in the roll mounts.
7. M ove unwinding unit to the top position. Allow the axis ends to slide into
the grooves and take the roll upward.
2004 – 2013 © Durst Phototechnik AG – www.durst-online.com , Rho 1012/10 30 , Issued 07/2013 77 / 147
