E Operation Rho 1012/1030

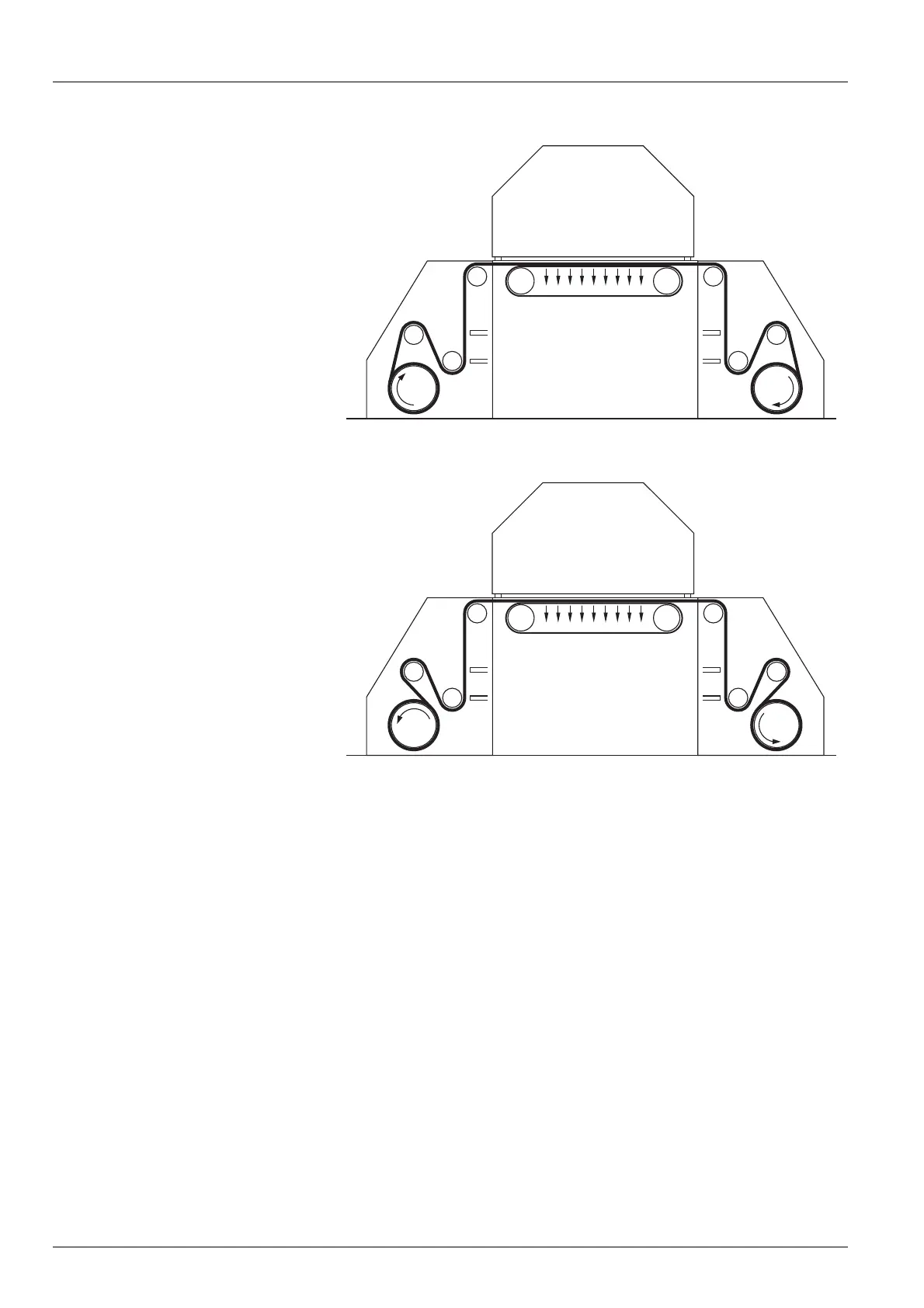

Fig. 44 Guide the roll medium around the tensioning roller and
redirection rolls (here: schematically for front printing)
Fig. 45 Guide the roll medium around the tensioning roller and
redirection rolls (here: schematically for back printing)
2. Guide roll medium around tensioning roller and redirection rolls.
3. G uide roll medium through the print er.
4. G uide the ro ll medium aroun d the redirection rolls and tensioning roller in
the same way at the winding unit and attach it to the empty core.
5. Return tensioning rollers to bottom position on unloading and loading
sides.
10.3.5 Al igning the roll mediu m
Carry out the following measures on both the loading and unloading sides.
