Rho 1012/1030 EOperation
10.3.4 G uiding roll medium through the printer

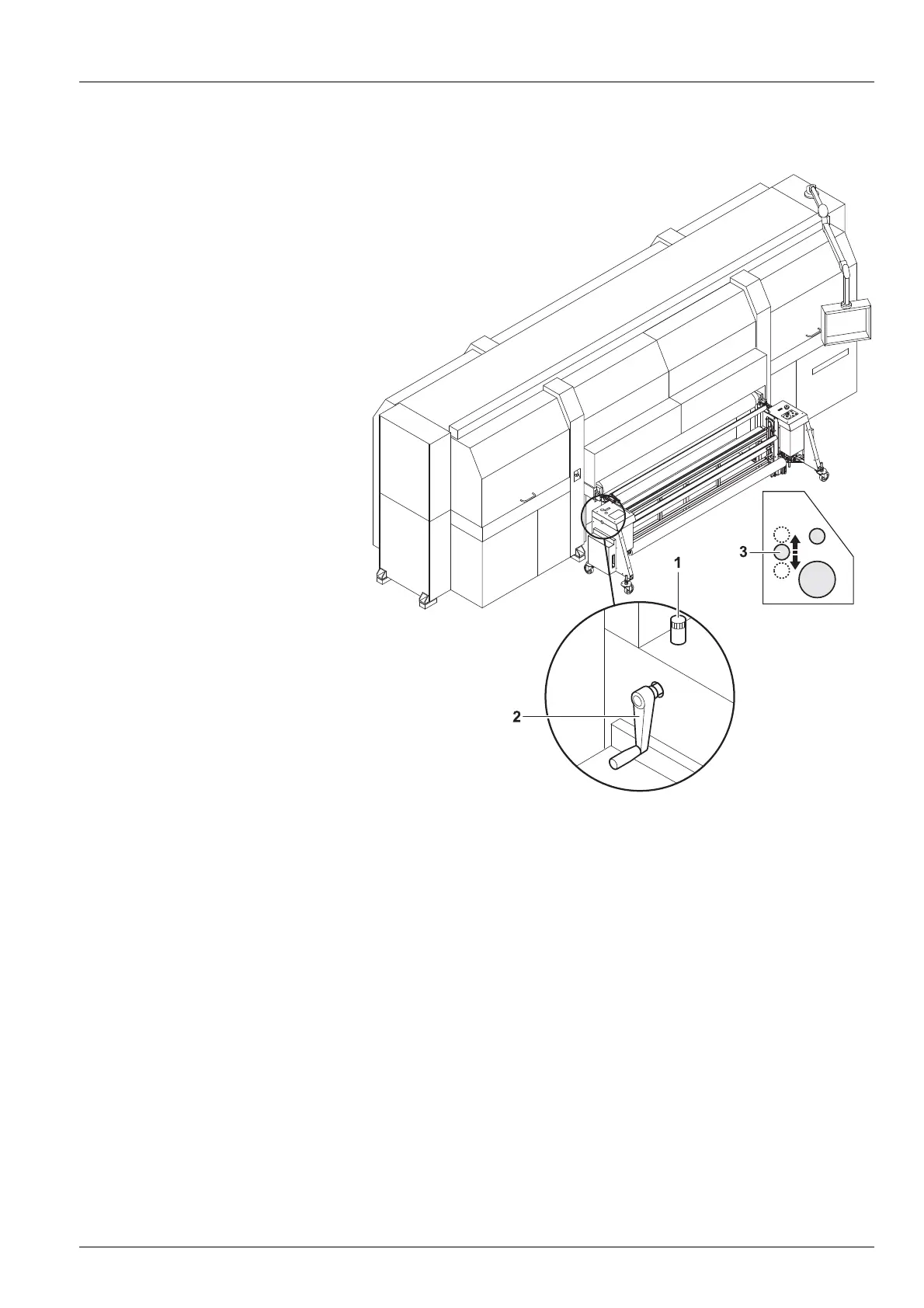

Fig. 43 Moving the tensioning roller upward (movement of the
tensioning roller (3) shown schematically)
1. To make threading of the r
oll medium around the tensioning roller easier,
carry out the following
measures on the unloading and loading sides:
– Loosen the set screw (1)
.
– Move te nsioning rolle
r (3) upward with crank (2).
– Secure tensioning ro
ller with se t screw.
