Acclarix LX9 Series Diagnostic Ultrasound System User Manual
Transducers and Biopsy
5. After biopsy, press the tab release to remove the needle, and loosen the locking knob to remove
the bracket from the transducer.
 BGK-CR10UA/BGK-006
The installation steps for these brackets are the same. Here we take one bracket for illustration.
Structures:
Installation and Use Steps:
1. Place an appropriate amount of gel on transducer surface, and insert transducer into the sheath.
2. Loosen the locking knob to open the clamp of bracket. Attach the bracket to the transducer by
aligning the locating markers on the bracket and the transducer.

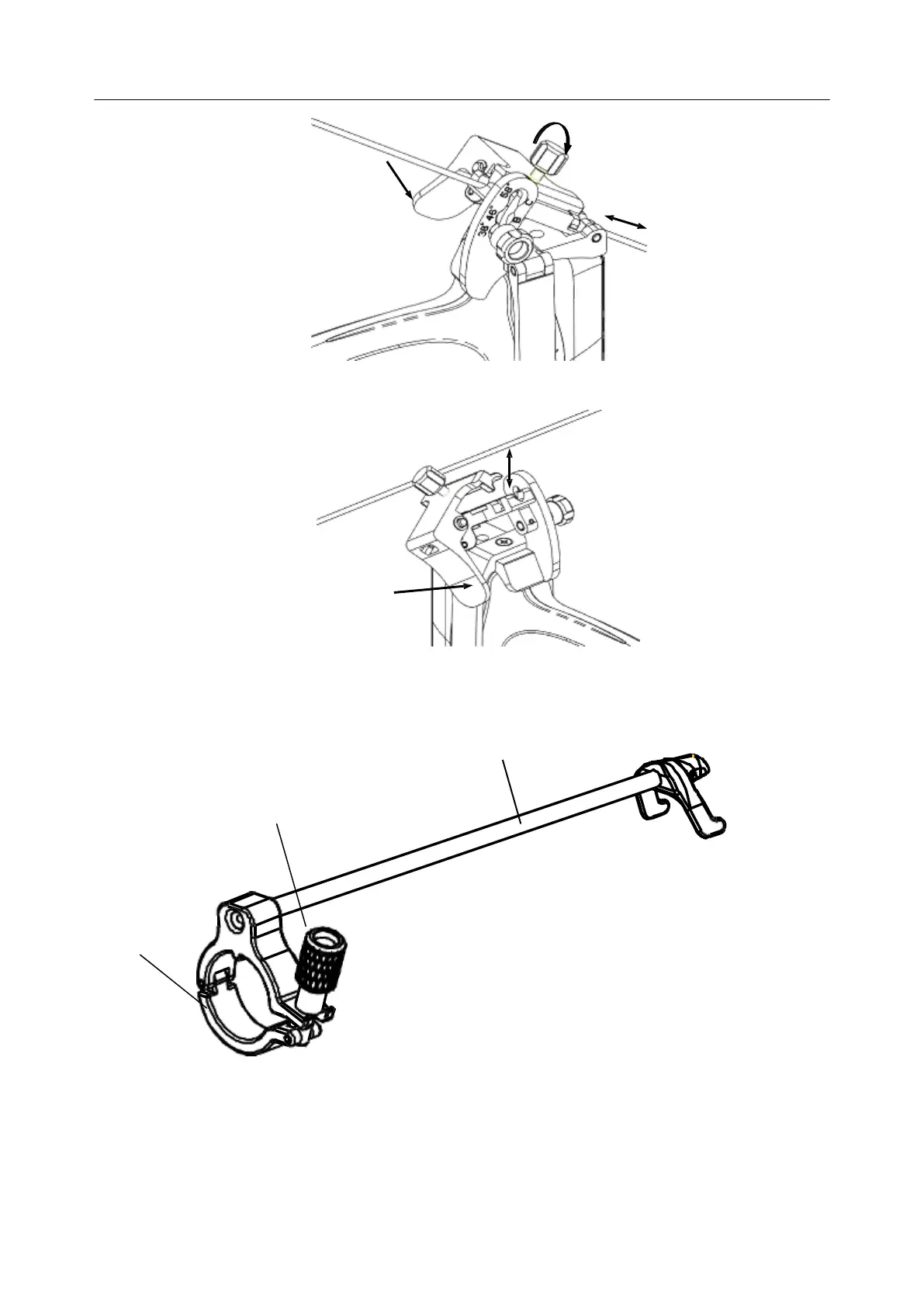

Needle Guide Path
Locking Knob
Clamp
