Transducers and Biopsy
3. Properly secure the clamp of bracket with the locking knob. Ensure the backet is firmly attached,
and then place the biopsy needle into the needle guide path.
 BGK-005

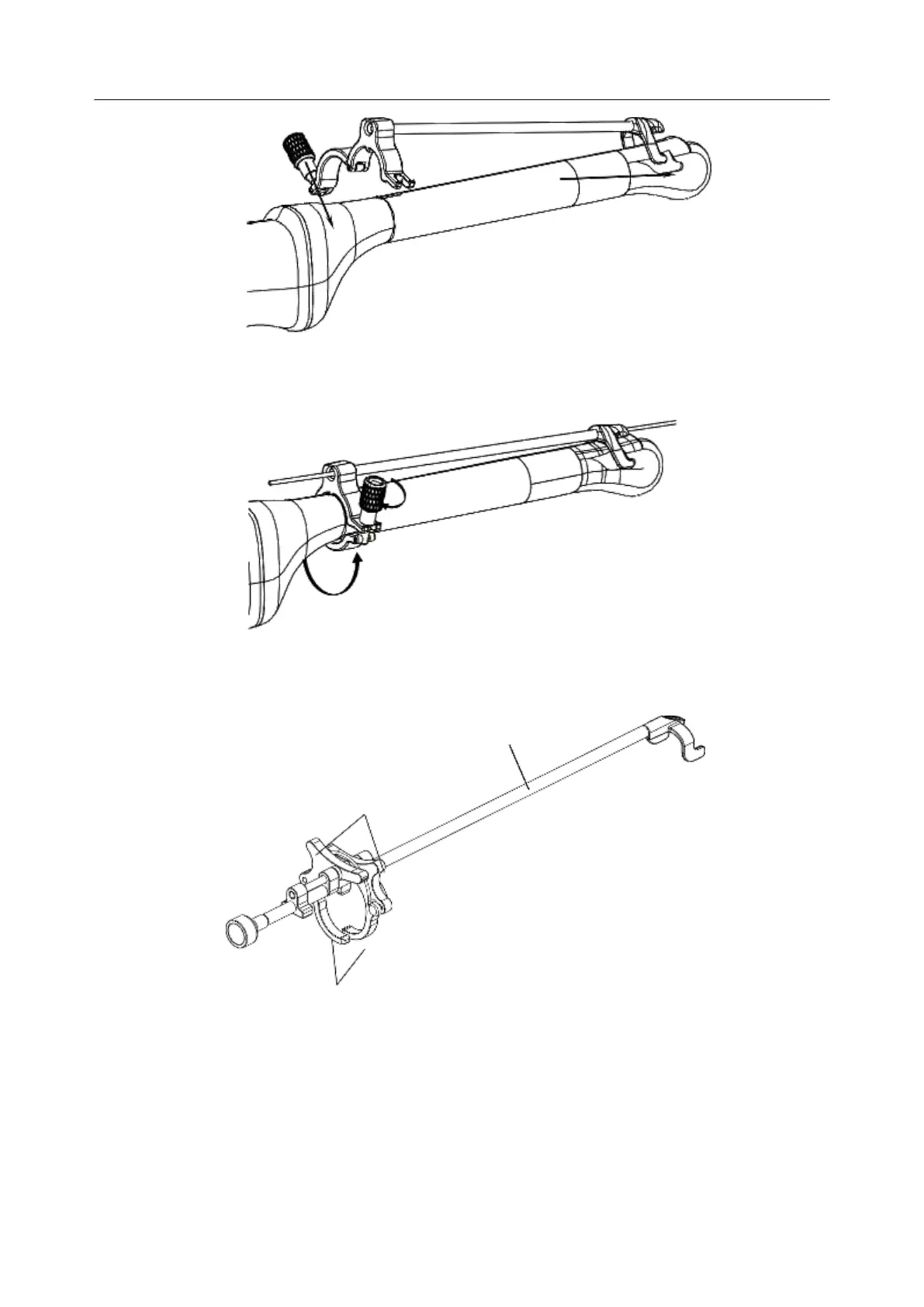

Structures:
Needle Guide Path
Quick Release
Clamp
Installation and Use Steps:
1. Place an appropriate amount of gel on transducer surface, and insert transducer into the sheath.
2. Use the quick release to open the clamp of bracket. Align the locating markers on the bracket and
the transducer and push the bracket to click into place.
