Acclarix LX9 Series Diagnostic Ultrasound System User Manual
Measurements and Reports

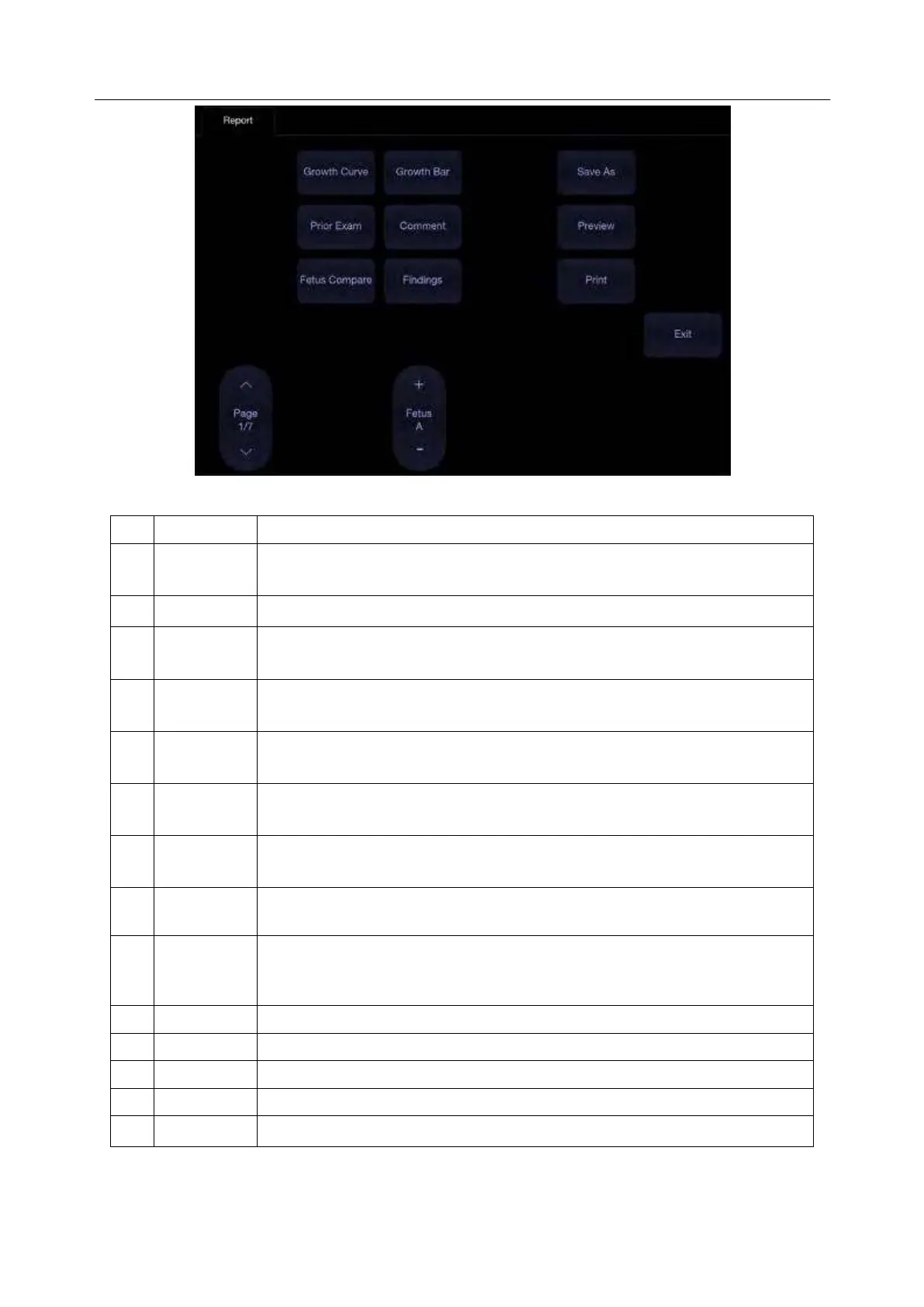

Figure 8-8 OB Worksheet Touch Screen Display
No.
Name
Description
1.
VolFlow
Curve
Press to display Volume Flow Curve graph. It is only available in Vascular
exams.
2.
IMT Curve
Press to display IMT Curve graph. It is only available in Vascular exams.
3.
Stenosis
Curve
Press to display Stenosis Curve graph. It is only available in Vascular
exams.
4.
Growth
Curve
Press to access the fetal growth curves. It is only available in Obstetric
exams. See section 8.3.1.4 Growth Curve for details.
5.
Prior
Exams
Press to open the Prior Exam Data page for viewing or typing in prior fetus
exam data. It is only available in Obstetric exams.
6.
Fetus
Compare
Press to compare multiple fetus data in one page. It only shows summary
data for each fetus. It is available only in multiple fetus situations.
7.
Growth Bar
Press to view the growth bar of the fetus. It is only available in Obstetric
exams.
8.
Comment
Press to display or hide comment section. This is an editable field for user
to type any diagnosis or treatment comments.
9.
Findings
Press to display or hide the findings section. This is an editable field for
user to type any ultrasound findings. See section 8.3.1.5 Findings for
details.
10.
Page
Press to switch worksheet pages.
11.
Save As
Press to save the report as PDF file to external storage.
12.
Preview
Press to preview report.
13.
Print
Press to print the report via the connected USB report printer.
14.
Exit
Press to exit report page.
