Acclarix LX9 Series Diagnostic Ultrasound System User Manual

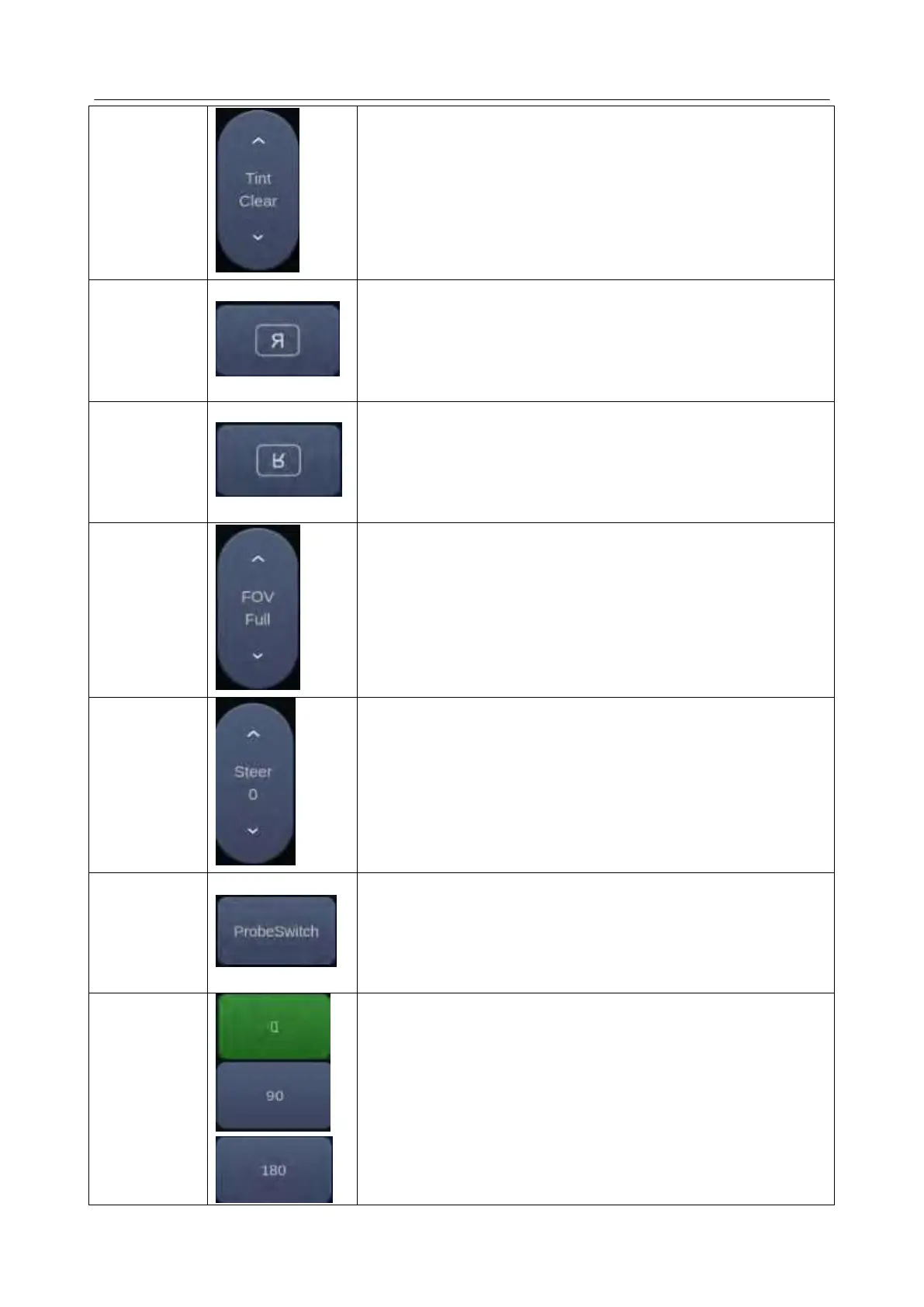

The Tint control changes the color tint being used. If Colorize
had been off, changing the Color map control will automatically
activate it.
The Left/Right invert control is indicated by a backward R and is
used to toggle the left/right orientation of the image. The Edan E
orientation marker at the top of the image switches with the
left/right invert to match the orientation marker on the
transducer.
The Up/Down invert control is indicated by an upside-down R
and is used to toggle the up/down orientation of the image. The
TGC curve is also re-oriented with Invert On, so that the top of
the TGC curve corresponds to the top of the image on the
screen.
The Field of View control adjusts the image width. Full, Large,
Med. and Small settings are available. As the image becomes
narrower, the frame rate increases.
The Steer control is only available for linear transducers and
steers the B-mode image left or right, without moving the
transducer. This function can be particularly useful when
visualizing needles or other objects that are enhanced by a
perpendicular beam. Steer is not available if Spatial
Compounding, Trapezoid or Panorama is turned on.
Press to switch the linear plane and convex plane of the biplane
transducer.
Four radio buttons used to quickly rotate the image. Available
angles are: 0°/90°/180°/270°.
