Imaging

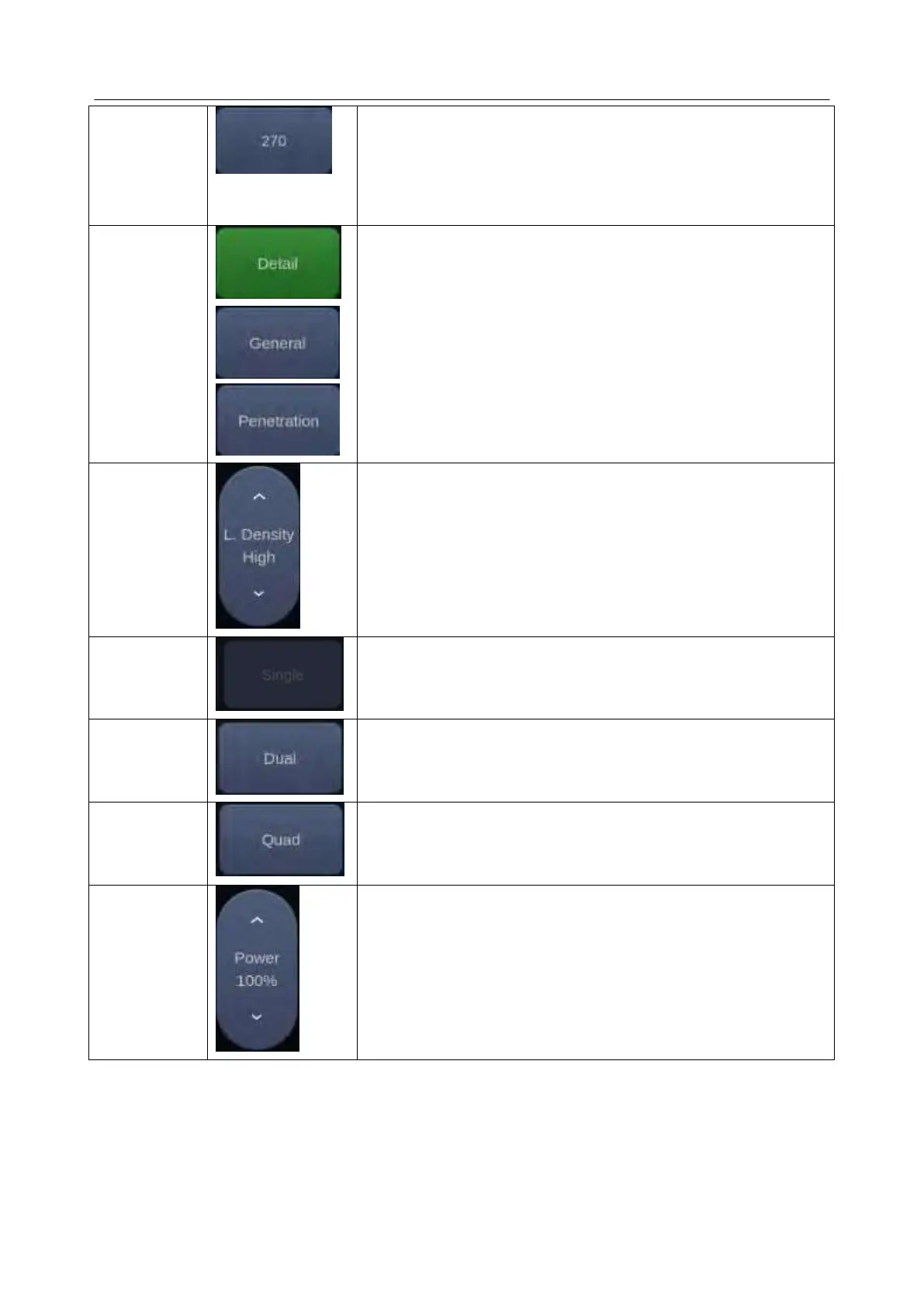

Image Type
B-mode supports presets for Detail, General, and Penetration.
Line Density
Adjusts the line density to optimize the lateral resolution for the
best possible image. The higher the line density, the higher the
lateral resolution, but the lower the frame rate.
Single
Press to display the currently active side of Dual image as a
single image.
Dual
Press to activate dual imaging mode. See section 7.3.1 Dual
Imaging for details.
Quad
Press to activate quad imaging mode. Refer to section 7.3.2
Quad Imaging for details.
Acoustic
power
Adjusts the acoustic output power of the activate transducer. It is
only available in live imaging. Higher acoustic power numbers
correspond to increased sensitivity in the image with improved
penetration, but the ALARA principle should be followed in
actual clinical situations.
