C
HAPTER
17
| Multicast Filtering
Layer 2 IGMP (Snooping and Query for IPv4)
– 614 –
To show the all interfaces attached to a multicast router:
1. Click Multicast, IGMP Snooping, Multicast Router.
2. Select Current Multicast Router from the Action list.
3. Select the VLAN for which to display this information. Ports in the
selected VLAN which are attached to a neighboring multicast router/
switch are displayed.

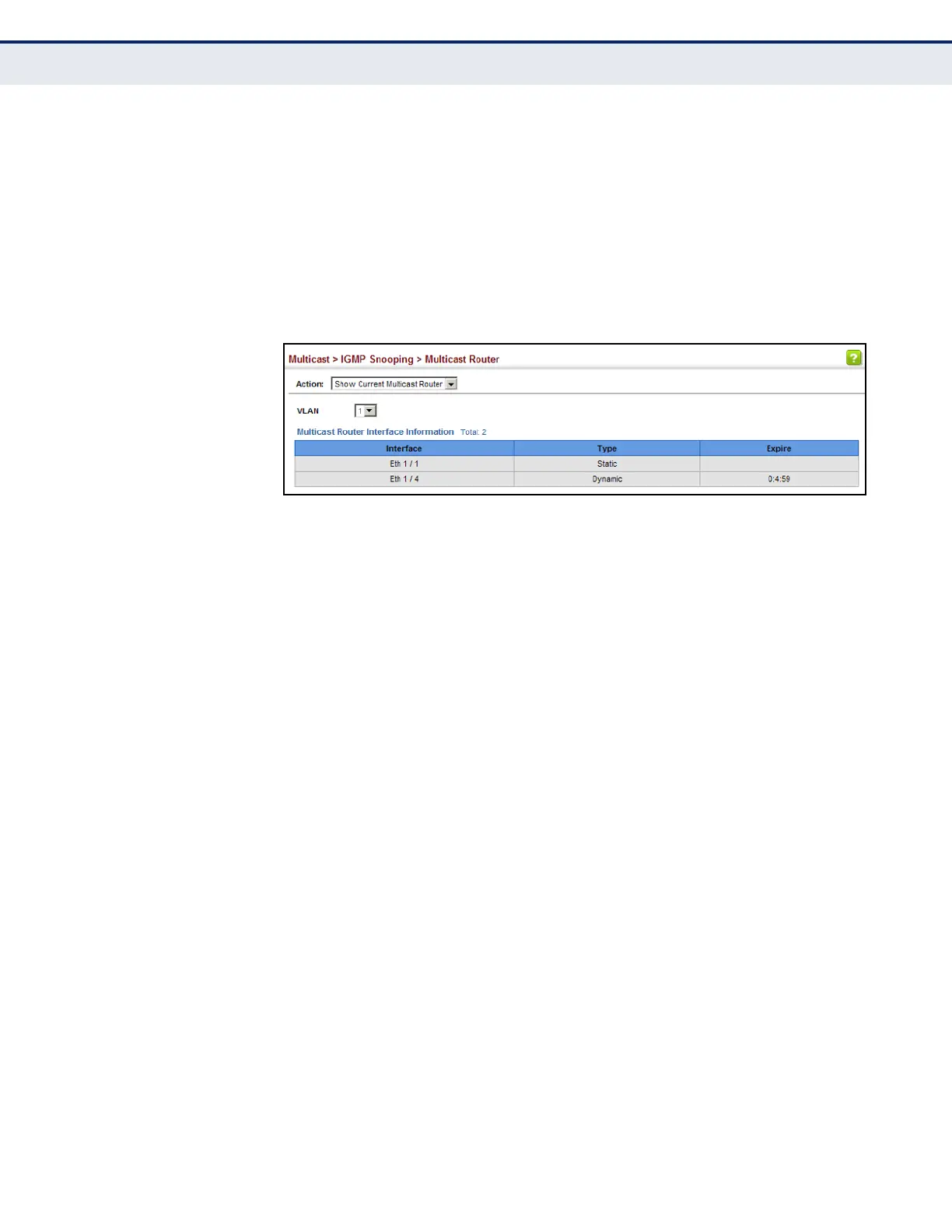

Figure 358: Showing Current Interfaces Attached a Multicast Router
ASSIGNING
INTERFACES TO
MULTICAST SERVICES
Use the Multicast > IGMP Snooping > IGMP Member (Add Static Member)
page to statically assign a multicast service to an interface.
Multicast filtering can be dynamically configured using IGMP Snooping and
IGMP Query messages (see "Configuring IGMP Snooping and Query
Parameters" on page 608). However, for certain applications that require
tighter control, it may be necessary to statically configure a multicast
service on the switch. First add all the ports attached to participating hosts
to a common VLAN, and then assign the multicast service to that VLAN
group.
CLI REFERENCES
â—† "ip igmp snooping vlan static" on page 1208
COMMAND USAGE
â—† Static multicast addresses are never aged out.
â—† When a multicast address is assigned to an interface in a specific VLAN,
the corresponding traffic can only be forwarded to ports within that
VLAN.
PARAMETERS
These parameters are displayed:
◆ VLAN – Specifies the VLAN which is to propagate the multicast service.
(Range: 1-4094)
◆ Interface – Activates the Port or Trunk scroll down list.
◆ Port or Trunk – Specifies the interface assigned to a multicast group.
