| Class of Service
Layer 3/4 Priority Settings
– 279 –

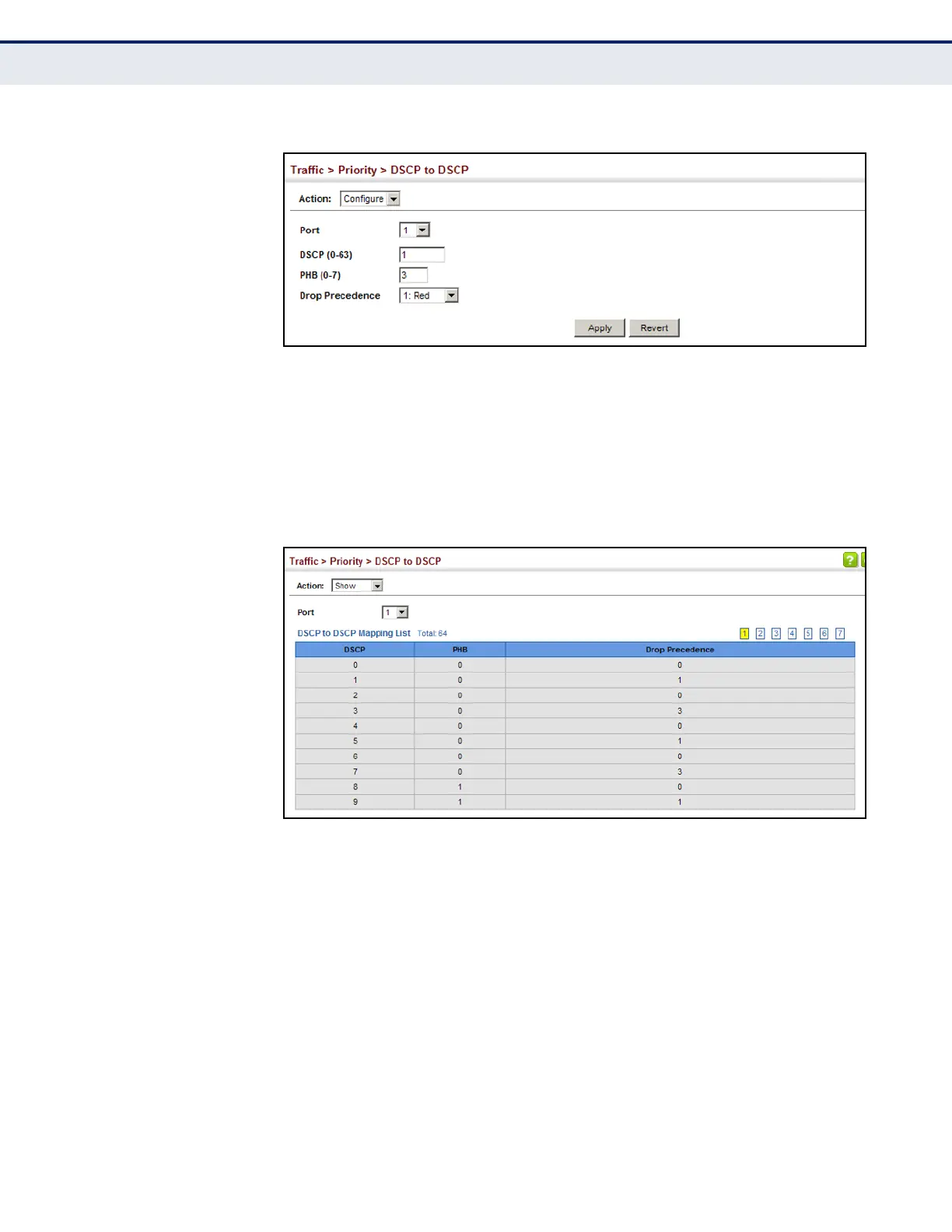

Figure 133: Configuring DSCP to DSCP Internal Mapping
To show the DSCP to internal PHB/drop precedence map:
1. Click Traffic, Priority, DSCP to DSCP.
2. Select Show from the Action list.
3. Select a port.
Figure 134: Showing DSCP to DSCP Internal Mapping
MAPPING COS
P
RIORITIES TO
INTERNAL DSCP
VALUES
Use the Traffic > Priority > CoS to DSCP page to maps CoS/CFI values in
incoming packets to per-hop behavior and drop precedence values for
priority processing.
CLI REFERENCES
â—† "qos map cos-dscp" on page 1164
COMMAND USAGE
â—† The default mapping of CoS to PHB values is shown in Table 18 on
page 280.
â—† Enter up to eight CoS/CFI paired values, per-hop behavior and drop
precedence.
