| Spanning Tree Algorithm
Displaying Interface Settings for STA
– 250 –

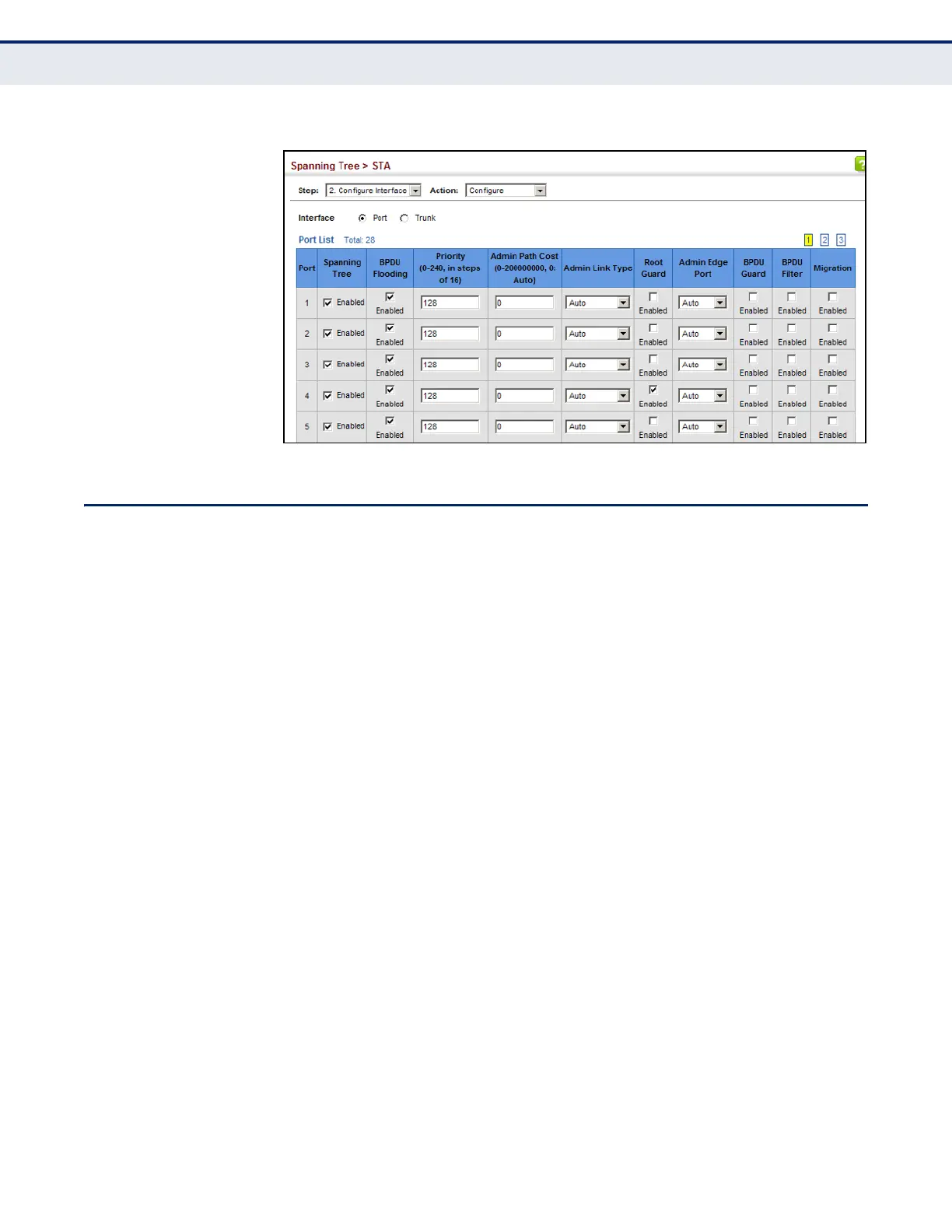

Figure 109: Configuring Interface Settings for STA
DISPLAYING INTERFACE SETTINGS FOR STA
Use the Spanning Tree > STA (Configure Interface - Show Information)
page to display the current status of ports or trunks in the Spanning Tree.
CLI REFERENCES
◆ "show spanning-tree" on page 1082
PARAMETERS
These parameters are displayed:
◆ Spanning Tree – Shows if STA has been enabled on this interface.
◆ BPDU Flooding – Shows if BPDUs will be flooded to other ports when
spanning tree is disabled globally on the switch or disabled on a specific
port.
◆ STA Status – Displays current state of this port within the Spanning
Tree:
■
Discarding - Port receives STA configuration messages, but does
not forward packets.
■
Learning - Port has transmitted configuration messages for an
interval set by the Forward Delay parameter without receiving
contradictory information. Port address table is cleared, and the
port begins learning addresses.
■
Forwarding - Port forwards packets, and continues learning
addresses.
