C
HAPTER
14
| Basic Administration Protocols
Connectivity Fault Management
– 546 –
â–
EgrVid – The Egress Port can be identified, but the bridge port is not
in the LTM’s VID member set, and was therefore filtered by egress
filtering.
◆ Reply – Reply action:
â–
FDB – Target address found in forwarding database.
â–
MPDB – Target address found in the maintenance point database.
â–
HIT – Target located on this device.
WEB INTERFACE
To show information about link trace operations launched from this device:
1. Click Administration, CFM.
2. Select Show Information from the Step list.
3. Select Show Link Trace Cache from the Action list.

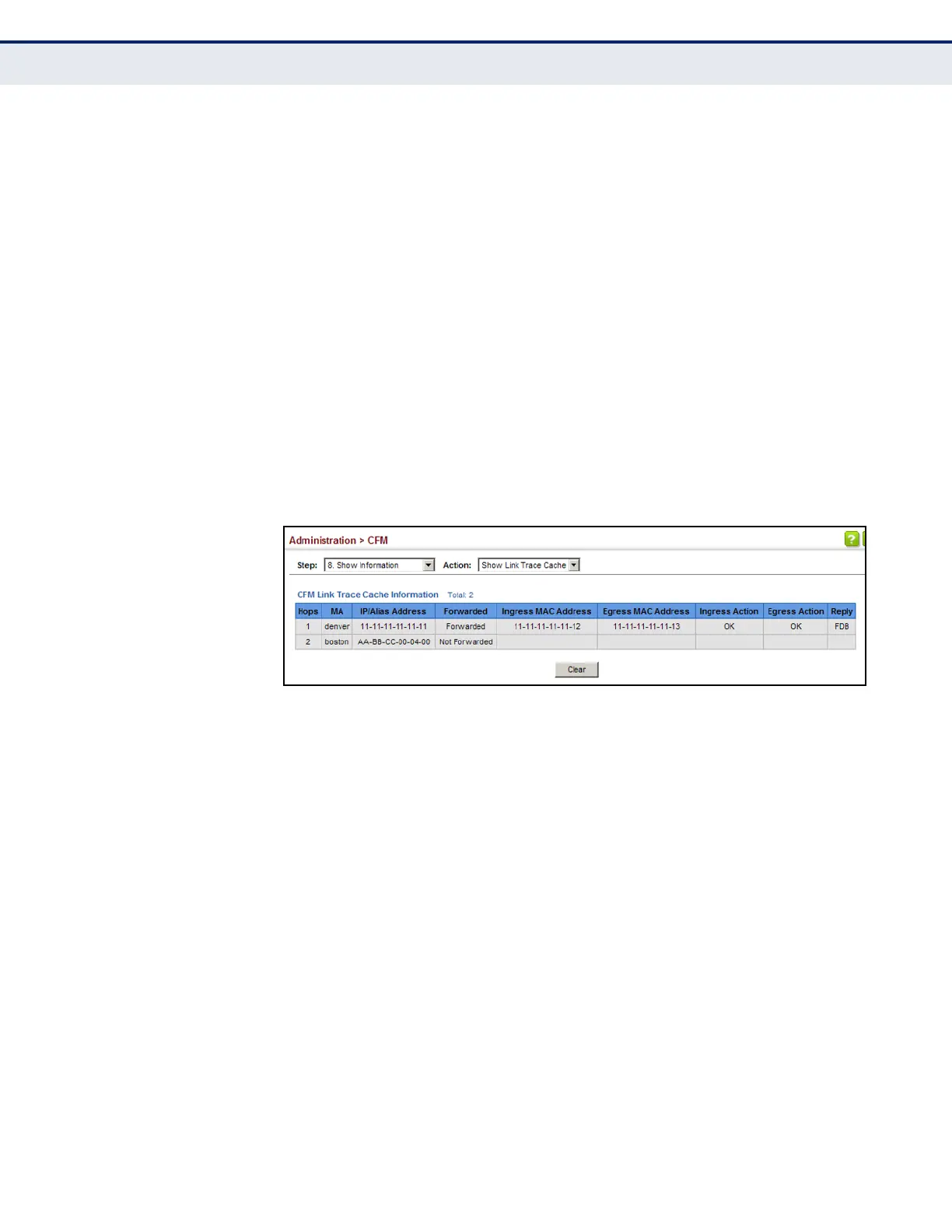

Figure 313: Showing the Link Trace Cache
DISPLAYING FAULT
NOTIFICATION
SETTINGS
Use the Administration > CFM > Show Information (Show Fault Notification
Generator) page to display configuration settings for the fault notification
generator.
CLI REFERENCES
â—† "show ethernet cfm fault-notify-generator" on page 1349
PARAMETERS
These parameters are displayed:
◆ MEP ID – Maintenance end point identifier.
◆ MD Name – Maintenance domain name.
◆ MA Name – Maintenance association name.
◆ Highest Defect – The highest defect that will generate a fault alarm.
(This is disabled by default.)
◆ Lowest Alarm – The lowest defect that will generate a fault alarm
12
.
