C
HAPTER
17
| Multicast Filtering
Multicast VLAN Registration for IPv4
– 652 –
4. Select an MVR domain.
5. Select the port or trunk for which to display this information.

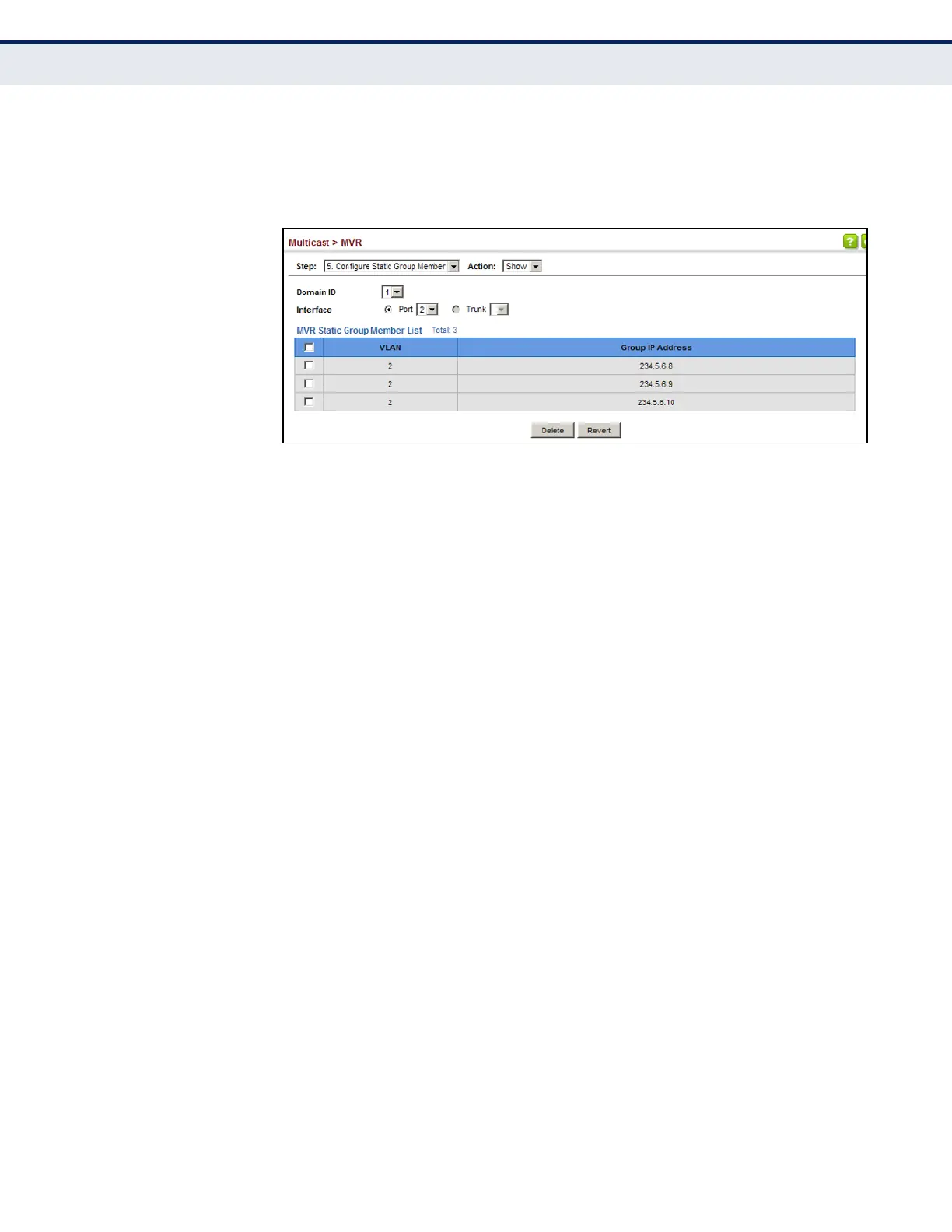

Figure 392: Showing the Static MVR Groups Assigned to a Port
DISPLAYING MVR
RECEIVER GROUPS
Use the Multicast > MVR (Show Member) page to show the multicast
groups either statically or dynamically assigned to the MVR receiver groups
on each interface.
CLI REFERENCES
â—† "show mvr" on page 1258
PARAMETERS
These parameters are displayed:
◆ Domain ID – An independent multicast domain. (Range: 1-5)
◆ Group IP Address – Multicast groups assigned to the MVR VLAN.
◆ VLAN – The VLAN through which the service is received. Note that this
may be different from the MVR VLAN if the group address has been
statically assigned.
◆ Port – Shows the interfaces with subscribers for multicast services
provided through the MVR VLAN.
◆ Up Time – Time this service has been forwarded to attached clients.
◆ Expire – Time before this entry expires if no membership report is
received from currently active or new clients.
◆ Count – The number of multicast services currently being forwarded
from the MVR VLAN.
