C
HAPTER
17
| Multicast Filtering
Multicast VLAN Registration for IPv6
– 668 –

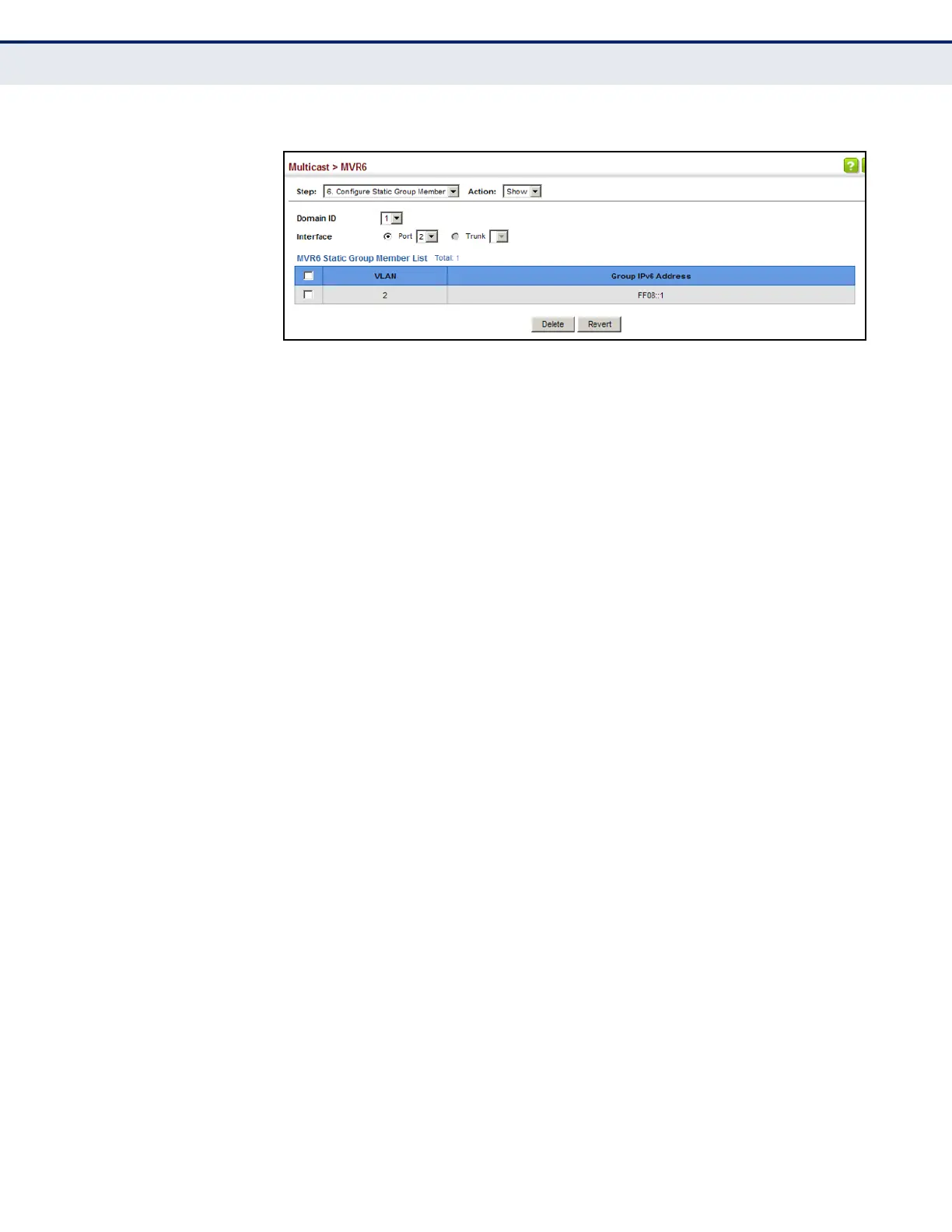

Figure 405: Showing the Static MVR6 Groups Assigned to a Port
DISPLAYING MVR6
RECEIVER GROUPS
Use the Multicast > MVR6 (Show Member) page to show the multicast
groups either statically or dynamically assigned to the MVR6 receiver
groups on each interface.
CLI REFERENCES
◆ "show mvr6 members" on page 1282
PARAMETERS
These parameters are displayed:
◆ Domain ID – An independent multicast domain. (Range: 1-5)
◆ Group IPv6 Address – Multicast groups assigned to the MVR6 VLAN.
◆ VLAN – The VLAN through which the service is received. Note that this
may be different from the MVR6 VLAN if the group address has been
statically assigned.
◆ Port – Indicates the source address of the multicast service, or
displays an asterisk if the group address has been statically assigned
(these entries are marked as “Source”). Also shows the interfaces with
subscribers for multicast services provided through the MVR6 VLAN
(these entries are marked as “Receiver”).
◆ Up Time – Time this service has been forwarded to attached clients.
◆ Expire – Time before this entry expires if no membership report is
received from currently active or new clients.
◆ Count – The number of multicast services currently being forwarded
from the MVR6 VLAN.
WEB INTERFACE
To display the interfaces assigned to the MVR6 receiver groups:
1. Click Multicast, MVR6.
2. Select Show Member from the Step list.
