3. Select Add CA-Type from the Action list.
4. Select an interface from the Port or Trunk list.
5. Specify a CA-Type and CA-Value pair.
6. Click Apply.

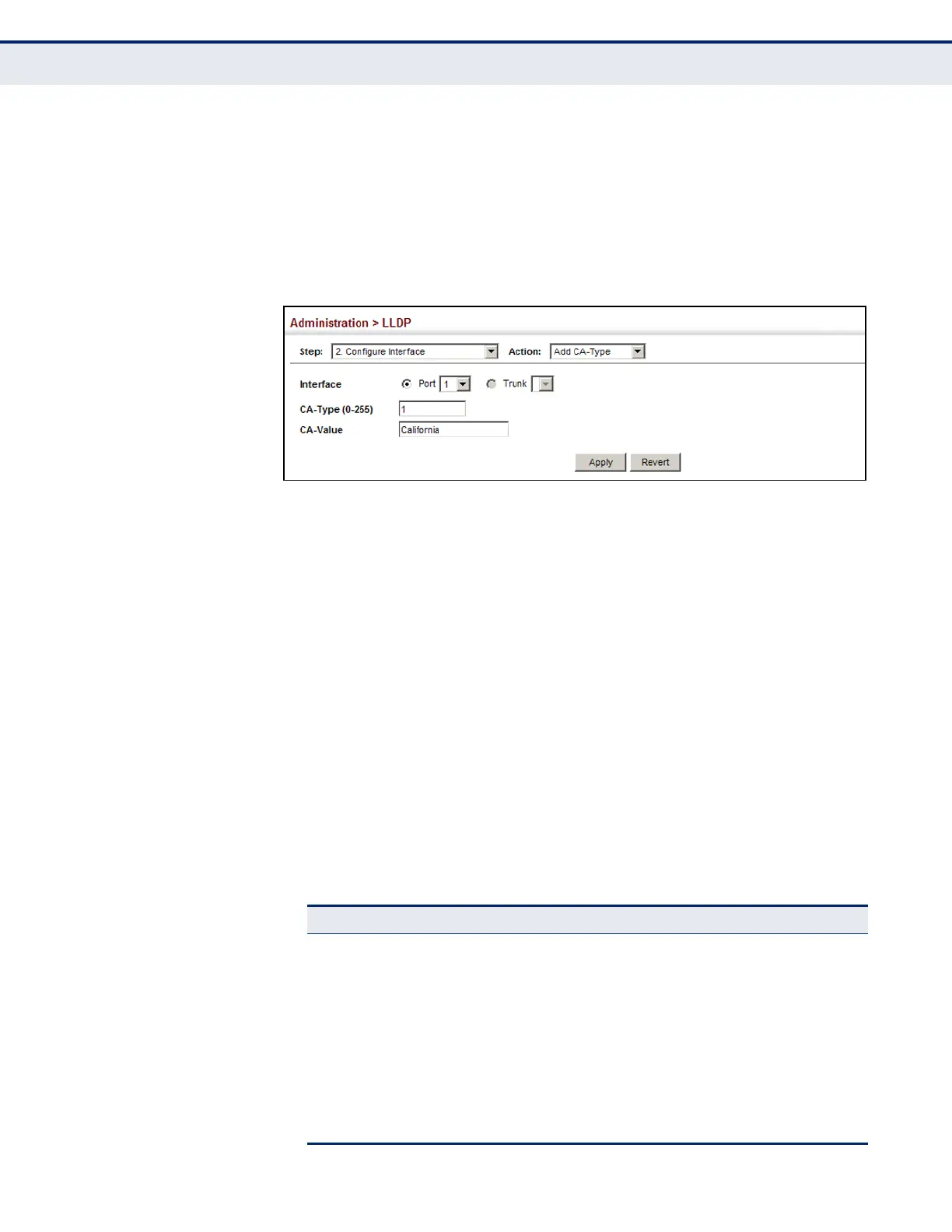

Figure 235: Configuring the Civic Address for an LLDP Interface
DISPLAYING LLDP
LOCAL DEVICE
INFORMATION
Use the Administration > LLDP (Show Local Device Information) page to
display information about the switch, such as its MAC address, chassis ID,
management IP address, and port information.
CLI REFERENCES
â—† "show lldp info local-device" on page 1306
PARAMETERS
These parameters are displayed:
Global Settings
◆ Chassis Type – Identifies the chassis containing the IEEE 802 LAN
entity associated with the transmitting LLDP agent. There are several
ways in which a chassis may be identified and a chassis ID subtype is
used to indicate the type of component being referenced by the chassis
ID field.
Table 26: Chassis ID Subtype
ID Basis Reference
Chassis component EntPhysicalAlias when entPhysClass has a value of ‘chassis(3)’
(IETF RFC 2737)
Interface alias IfAlias (IETF RFC 2863)
Port component EntPhysicalAlias when entPhysicalClass has a value ‘port(10)’ or
‘backplane(4)’ (IETF RFC 2737)
MAC address MAC address (IEEE Std 802-2001)
Network address networkAddress
Interface name ifName (IETF RFC 2863)
Locally assigned locally assigned
