C
HAPTER
17
| Multicast Filtering
Multicast VLAN Registration for IPv4
– 650 –
WEB INTERFACE
To configure interface settings for MVR:
1. Click Multicast, MVR.
2. Select Configure Interface from the Step list.
3. Select Port or Trunk interface.
4. Select an MVR domain.
5. Set each port that will participate in the MVR protocol as a source port
or receiver port, and optionally enable Immediate Leave on any
receiver port to which only one subscriber is attached.
6. Click Apply.

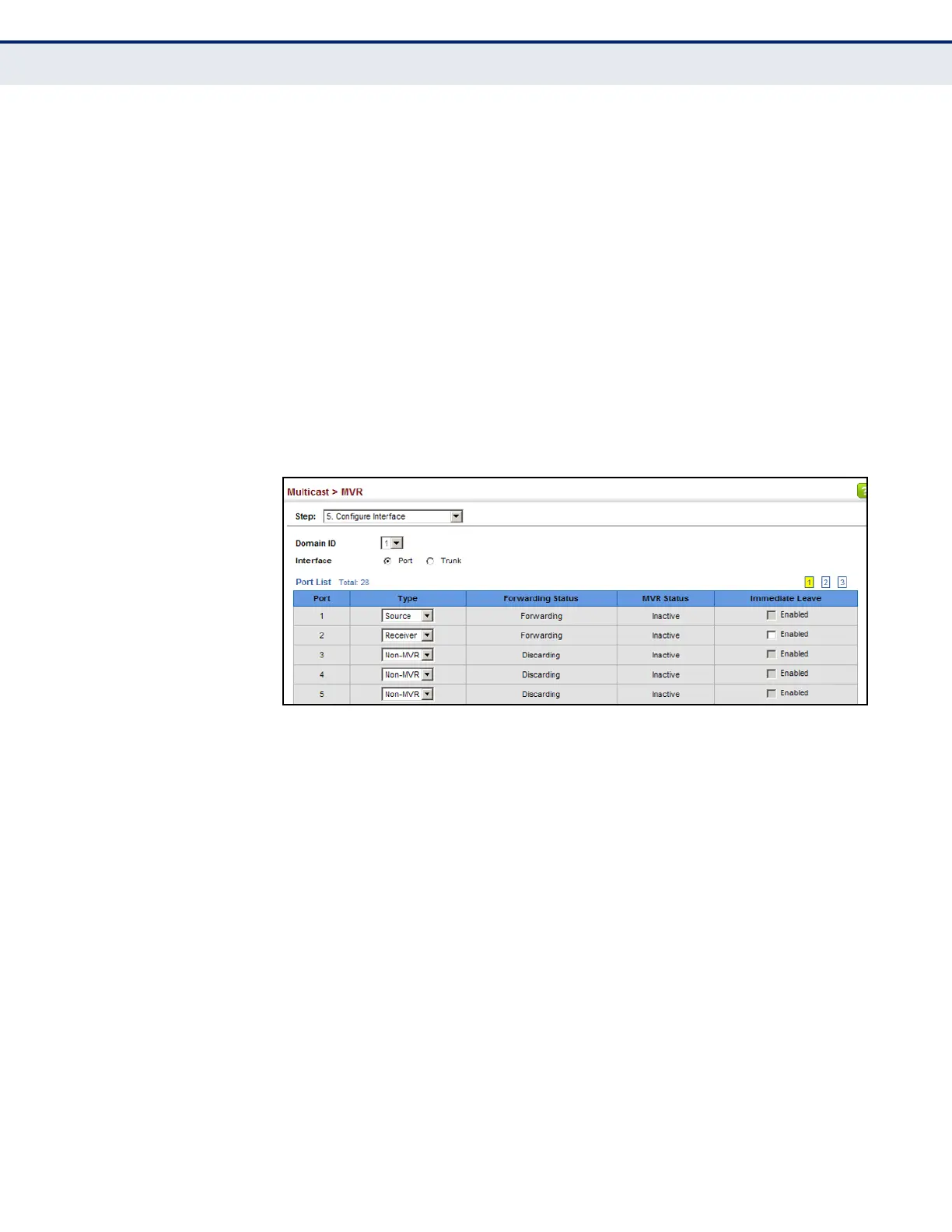

Figure 390: Configuring Interface Settings for MVR
ASSIGNING
STATIC MVR
M
ULTICAST GROUPS
TO
INTERFACES
Use the Multicast > MVR (Configure Static Group Member) page to
statically bind multicast groups to a port which will receive long-term
multicast streams associated with a stable set of hosts.
CLI REFERENCES
â—† "mvr vlan group" on page 1257
COMMAND USAGE
â—† Multicast groups can be statically assigned to a receiver port using this
configuration page.
â—† The IP address range from 224.0.0.0 to 239.255.255.255 is used for
multicast streams. MVR group addresses cannot fall within the reserved
IP multicast address range of 224.0.0.x.
â—† Only IGMP version 2 or 3 hosts can issue multicast join or leave
messages. If MVR must be configured for an IGMP version 1 host, the
multicast groups must be statically assigned.
