| IP Configuration
Setting the Switch’s IP Address (IP Version 4)
– 565 –
An IP default gateway can only be successfully set when a network
interface that directly connects to the gateway has been configured on
the switch.
WEB INTERFACE
To configure an IPv4 default gateway for the switch:
1. Click System, IP.
2. Select Configure Global from the Action list.
3. Enter the IPv4 default gateway.
4. Click Apply.

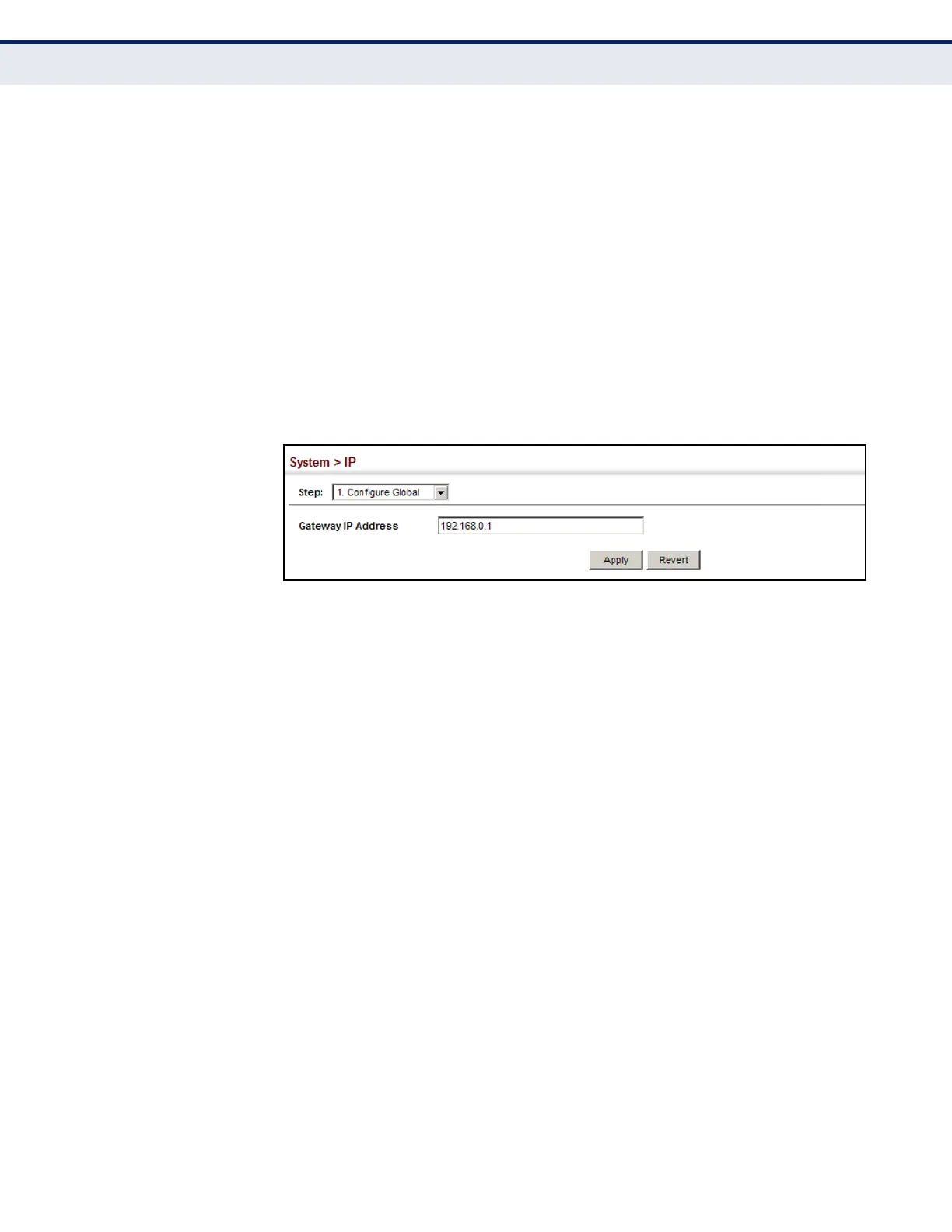

Figure 326: Configuring the IPv4 Default Gateway
CONFIGURING IPV4
INTERFACE SETTINGS
Use the System > IP (Configure Interface – Add Address) page to
configure an IPv4 address for the switch. An IPv4 address is obtained via
DHCP by default for VLAN 1. To configure a static address, you need to
change the switch’s default settings to values that are compatible with your
network. You may also need to a establish a default gateway between the
switch and management stations that exist on another network segment.
You can direct the device to obtain an address from a BOOTP or DHCP
server, or manually configure a static IP address. Valid IP addresses consist
of four decimal numbers, 0 to 255, separated by periods. Anything other
than this format will not be accepted.
CLI REFERENCES
â—† "DHCP Client" on page 1375
â—† "Basic IPv4 Configuration" on page 1388
PARAMETERS
These parameters are displayed:
◆ VLAN – ID of the configured VLAN (1-4094). By default, all ports on
the switch are members of VLAN 1. However, the management station
can be attached to a port belonging to any VLAN, as long as that VLAN
has been assigned an IP address. (Default: VLAN 1)
◆ IP Address Mode – Specifies whether IP functionality is enabled via
manual configuration (User Specified), Dynamic Host Configuration
Protocol (DHCP), or Boot Protocol (BOOTP). If DHCP/BOOTP is enabled,
